Ten years of craftsmanship, a hundred years of promise.
 |
| Place of Origin: | Guangdong China |
| Brand Name: | AnKuai |
| Model Number: | AKT301 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiabale, please contact us |
| Packaging Details: | L1215*W305*H1005mm |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T，Western Union, PayPal |
| Supply Ability: | 8000 sets/month |
| Temperature: | -15 To 60 Degrees | Power Consumption: | 100W |
|---|---|---|---|
| Product Name: | Tripod Turnstile Gate | Communication Interface: | RS485 (Distance: ≤1200m) |
| Passage Width: | 600mm | Arm Turning: | Uni-direction Or Bi-direction |
| Arm Open/Close Time: | 2S | Working Environment: | Indoors Or Outdoors With Shed |
| High Light: | vertical tripod turnstile gate,rs 485 tripod turnstile gate,vertical tripod gate |
||

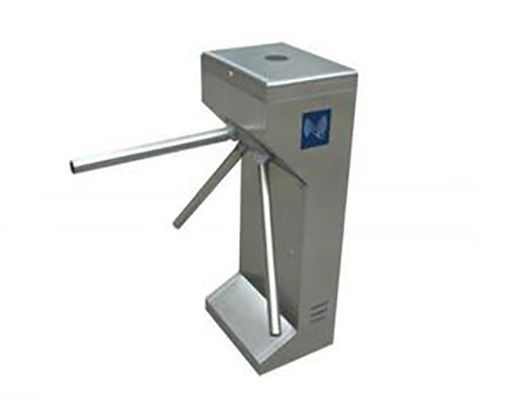

Tripod Turnstile Gate is an efficient and reliable device used for access control or security management. It features a stable and heavy-duty tripod design, providing a secure barrier for pedestrian passage. It is made of high-quality stainless steel with a sleek surface finish, making it capable of withstanding long-term use and extreme weather conditions from -15 to 60 degrees Celsius. The arm of the gate can open and close within 2 seconds, and can be adjusted to turn in either uni-direction or bi-direction. With a passage width of 600mm, it can easily accommodate a variety of pedestrians. Additionally, its unique waterproof and dustproof design ensures a high level of humidity resistance, up to 95% without concretion.
Tripod Turnstile Gate is the ideal choice for any security or access control management solution. It is easy to install and use, and provides an effective and reliable barrier for any access point. With its high-quality construction and superior performance, it is the perfect choice for any commercial, industrial, or public space.
| Parameter | Value |
|---|---|
| Product Name | Tripod Turnstile Gate |
| Power Consumption | 100W |
| Communication Interface | RS485 (Distance: ≤1200m) |
| Passage Speed | 30 Persons/min (normal Open), 20 Persons/min (normal Close) |
| Arm Turning | Uni-direction Or Bi-direction |
| Humidity | <95%, Without Concretion |
| Passage Width | 600mm |
| Input Interface | +12V Electrical Signal Or Impulse Signal With Width More Than 100ms, Drive Current >10mA |
| Temperature | -15 To 60 Degrees |
| Working Environment | Indoors Or Outdoors With Shed |
Tripod Turnstile Gate, AnKuai AKT301, is a top-of-the-line Tripod Barrier Gate from Guangdong, China. It is designed with a wide temperature range of -15 to 60 degrees, and features a fast arm open/close time of 2s. The arm turning can be configured for uni-direction or bi-direction, and the communication interface is RS485 with a maximum distance of 1200m.
Tripod Turnstile Gate offers technical support and service for its customers. Our team of expert technicians is available to help with installation, maintenance, and repair of Tripod Turnstile Gates, as well as any other technical issues that may arise.
We also offer remote technical support, with our team available to answer questions, troubleshoot, and provide guidance over the phone or through video chat.
In addition, we offer comprehensive warranty coverage on our Tripod Turnstile Gate products, ensuring that customers are protected in case of any malfunctions or defects.
Packaging and Shipping for Tripod Turnstile Gate:
