Tripod Turnstile Gate
>
OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate

OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate

Brand Name: AnKuai
Model Number: AKT301A
MOQ: 1
Price: Negotiabale, please contact us
Packaging Details: Carton and wooden box
Payment Terms: L/C, T/T,Western Union, PayPal
Detail Information
Place of Origin:
Guangdong China
Certification:
ISO9001, CE Certificate
Power Supply:
AC110~220V / 50~60Hz
Motor Power Consumption:
Semi-Automatic Control
Passage Width:
≤550mm
Arm Length:
≤550mm
Open/Close Time:
1s
Passing Speed:
20~40 Persons/min
Infrared:
None
Dimension:
150*260*980mm
Housing Material:
SUS304 Stainless Steel
Working Temperature:
-25° To 75°
Arm Turning:
Bi-Direction
Working Environment:
Indoors Or Outdoors
Communication Interface:
RS485, TTL232
Supply Ability:
8000 sets/month
Highlight:

QR code access control turnstile gate

,

RFID facial recognition tripod turnstile

,

OEM security door mechanism turnstile

Product Description

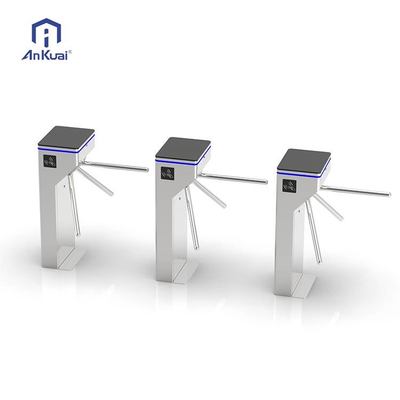

OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate 0

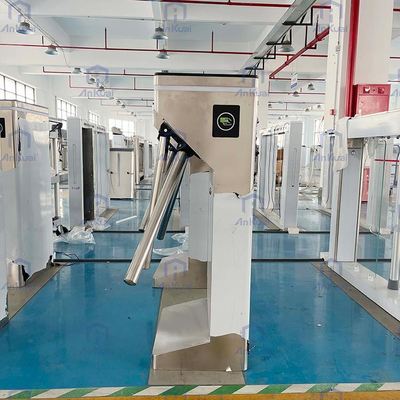

OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate 1

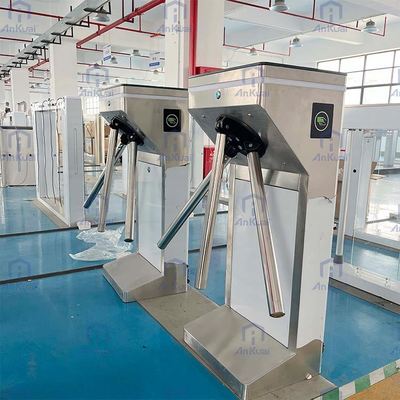

OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate 2

Technical Parameters:

Power supply AC110~220V / 50~60Hz
Motor power consumption Semi-Automatic Control
Passage width ≤550mm
Arm Length ≤500mm
Open/Close time 1s
Passing speed 20~40 Persons/min
Infrared None
Dimension 150260980mm
Housing material SUS304 Stainless steel
Working temperature -25° to 75°
Arm Turning Bi-Direction
Working environment Indoors or Outdoors
Communication interface RS485, TTL232



Main Function:

  • Through the built-in small button on the main control board, the device's operational status can be controlled.
  • Effectively implements a humanized passage status indication function for the tripod turnstile.
  • To meet various passage requirements, it can be set as bi-directional card swipe or uni-directional card swipe with free passage mode.
  • Auto-reset function: If passage is not completed within a specified time after card swiping, the turnstile will reset and lock again to cancel passage, defaulting to 5 seconds, adjustable as needed.
  • Anti-collision function: The swing arm automatically locks if no open signal is received.
  • After a power outage, the barrier arm automatically drops to maintain an open passage state, enabling gate opening during power failure.
  • Multiple passage indication lights: green lights for passage allowed and red lights for passage denied.
  • Rich interfaces available for connecting external facial recognition devices.



Support and Services:



The Tripod Turnstile Gate is a high-tech security product designed to control access to restricted areas. Our product technical support team is available to assist with installation, configuration, and troubleshooting of the turnstile gate. We provide regular maintenance services to ensure optimal performance and longevity of the product.

Our services include:

  • On-site installation and configuration
  • Remote technical support
  • Regular maintenance services
  • Product training and user manuals

Our team of experienced technicians is dedicated to providing top-notch customer service and ensuring your turnstile gate operates smoothly and efficiently. Contact us today for more information on our product technical support and services.



Packing and Shipping:

Product Packaging:

  • The tripod turnstile gate will be packaged in a sturdy cardboard box
  • The box will be labeled with product information and handling instructions
  • The turnstile gate will be securely packed with foam and other cushioning materials to prevent damage during shipping

Product Shipping:

  • We offer free shipping for the tripod turnstile gate within the continental United States
  • The turnstile gate will be shipped via a reputable shipping carrier such as UPS or FedEx
  • Shipping times may vary depending on the destination, but we strive to ship all orders within 2-3 business days of receipt
  • Tracking information will be provided once the turnstile gate has been shipped so you can track its delivery

FAQ:

Q: What is the brand name of this tripod turnstile gate?

A: The brand name of this tripod turnstile gate is AnKuai.

Q: What is the model number of this tripod turnstile gate?

A: The model number of this tripod turnstile gate is AKT301A.

Q: Where is this tripod turnstile gate manufactured?

A: This tripod turnstile gate is manufactured in Guangdong, China.

Q: What are the dimensions of this tripod turnstile gate?

A: The dimensions of this tripod turnstile gate are [insert dimensions here].

Q: What is the warranty period for this tripod turnstile gate?

A: Please refer to the warranty information provided with your purchase for details on the warranty period for this tripod turnstile gate.
