Intelligent Subway Station IP32 OEM ODM Turnstile Gate With Card Reader
Product Details:
| Place of Origin: | China |
| Brand Name: | Bester |
| Certification: | CE，RoHs, ISO:9001 |
| Model Number: | BS-Y300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Standard shipping package |
| Delivery Time: | About 3-7 Days After Receiving The Deposit(Based On The Quantity) |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Size: | 1200*300*980mm | Communication Interface: | RS485 Electrical Standard Or TCP/IP |
|---|---|---|---|
| OEM/ODM: | Welcome | Protection Degree: | IP32 |
| Opening Tim: | 1S | Power Supply: | AC220V/110V |
| High Light: | ODM Turnstile Gate,OEM Turnstile Gate,ODM Flap Turnstile |
||
Product Description

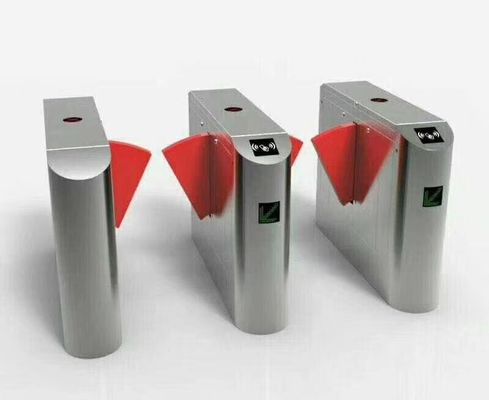

Intelligent Subway Station IP32 OEM ODM Turnstile Gate With Card Reader
Intelligent Subway Station IP32 OEM ODM Turnstile Gate With Card Reader
Intelligent Flap Barrier Integrated With 304 Stainless Steel For Pedestrian In Subway Station
Functions & Features
1. With the function of self-examine and alarm, it is convenient for maintenance and use.
2. Be able to program running status by the small keyboard in the main board
3. Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from hurt.
4. Light and sound alarm is generated when the illegal invasion and the tail followed.
5. Arms are automatically locked until the opening signal is received.
6. Arms synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable. (default time is 10sec.)
8. Automatically open the gate when power off and automatically close when power on.
9. Several readers' devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine est.)
10. One direction or bi-direction is optional.
11. It can be directly controlled and managed by remote control.
SPECIFICATIONS
| Model | BSD-Y100 | BSD-Y100 |
| Classifications | Single-core mechanism | Dual-core mechanism |
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) | |
| Thickness of ply | 1.3mm | |
| Finish | brushed surface, polishing surface or anti-fingerprint surface (optional); | |
| Size (L*W*H) | 1200mm*300mm*980mm (default) | |
| Material of flap | different color Acrylic flap available or Red Soft flapper optional | |
| Stretching-out flap length | 250~275mm | |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. | |
| Machine center | Germany technological motor | |
| Power voltage | AC220V±10%, 50Hz±10% | |
| Driver motor | DC Brush motor | |
| Main-board voltage | 12V DC | |
| In-built Infrared | 6 pairs/lane | |
| Passing speed | 30 persons/min | |
| Passage Width | 550mm | |
| Opening / closing time | 0.6 seconds | |
| The time required to running state after power on | 3 seconds | |
| Automatic reset time after the failure | 10 seconds | |
| Mean time to failure | min. 5 000 000 | |
| Operation temperature | -10℃ ~ +70℃ | |
| Relative humidity | less than 95% not condensed | |
| Working Environment | Indoor/Outdoor (with rain-tent cover) | |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal | |
| Communications port | RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet | |
| Warranty |
12 months |
|
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition) |
