Vehicle Detection Radar Sensor

Ce Fcc Rohs Verified Standard Single Relay Radar Sensor Replace Loop Ground Coil Detector for All the Barrier Gate

All Category

Vehicle Detection Radar Sensor

Hydraulic Retractable Bollards

Metal Detector Gate

Mrs. Betty

betty@ankuai.net

+8613827208652

Contact Now

Ce Fcc Rohs Verified Standard Single Relay Radar Sensor Replace Loop Ground Coil Detector for All the Barrier Gate

Model Number:	AK-AX2
MOQ:	5
Price:	$63-73

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Material:

Plastic

Reflective Grade:

Engineer Grade

Diameter*Length:

6mm×6m

Protection Rating:

Water Fillable:

Non-water Fillable

Has Light:

With Light

Product Name:

Vehicle Detection Sensor Barrier Gate Radar

Detection Distance:

1-6m(default 3m)

Technology:

79GHz Millimeter Wave Radar Sensor,FMCW MIMO

Working Voltage(V):

10-24V

Temperature Range(℃):

-40~85

Power(W):

Connection Interface:

RS485/Bluetooth

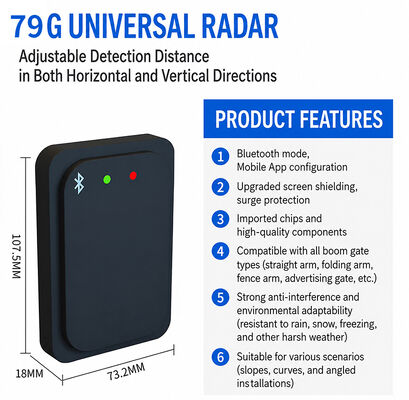

Size(mm):

107.5*73.2*18

Gross Weight:

Application:

All Types Of Barrier Arm(straight, Fence, Folding,advertising, Etc)

Highlight:

Single Relay Radar Sensor

Fcc Radar Sensor

Rohs Radar Sensor

Product Description

Product descriptions from the supplier

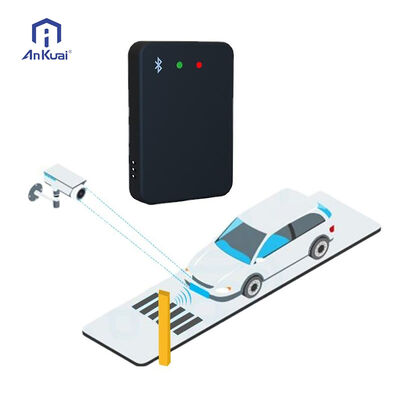

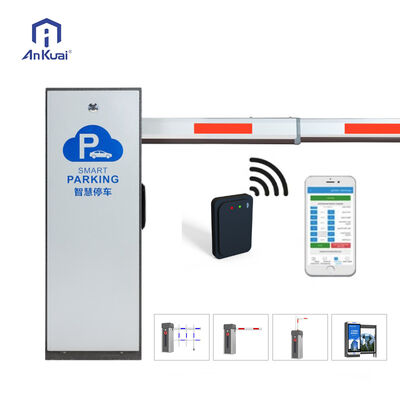

Barrier Gate Control Radar Is Developed For The Entrance And Exit Management Of Parking Lots Or Underground Garages. It Can Precisely Control The Rising And Falling Of The Barrier Boom By Cooperating With The Main Control Board Of The Gate Control System, Which Could Effectively Avoid The "Accidental Injury" Of The Barrier Boom To The Passing Vehicles Or Pedestrians In The Radar Field Of View,And Realize Intelligent Anti Smashing.

Radar Adopts The Highly Integrated Rf Chip Soc Scheme, Which Has The Characteristics Of Small Size, Low Cost, All-Weather Working Capability, High Detection Sensitivity, High Precision, Easy To Debug&Installation, Very Good Stability And Reliability.

The Working Frequency Of The Radar Is 79ghz, With Linear Frequency Modulation And Continous Waveform, Which Makes The Available Bandwidth Up To 4ghz.

The Radar Antenna Adopts Mimo Array Antenna That Enables The Radar Good Angular Resolution And High Angle Measuring Accuracy.

This Product Can Accurately Identify And Distinguish The Pedestrian, Vehicle And Other Targets Passing Through The Barrier Boom Area, And Avoid The Accidents Of "Smashing The Vehicle", "Smashing The Person" And "Not Dropping The Barrier Boom".
