| Brand Name: | AnKuai |
| Model Number: | AKD117 |
| Price: | $306.00/sets 1-19 sets |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |

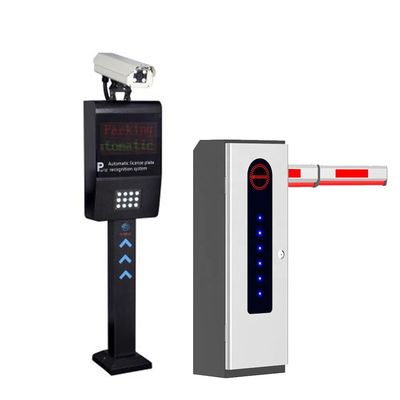

Product Description of automatic parking gate barrier
D117 AC channel changing gate is the latest development, using AC frequency conversion motor and frequency conversion control board, speed can be adjusted within a certain time range, with slow start slow fall effect. And can bounce back without pressure wave switch
|
Model
|
AKD117
|
|
Open/Close time
|
1.8,3,6s (optional)
|
|
Easily change different boom type
|

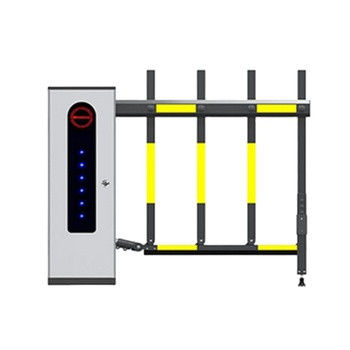

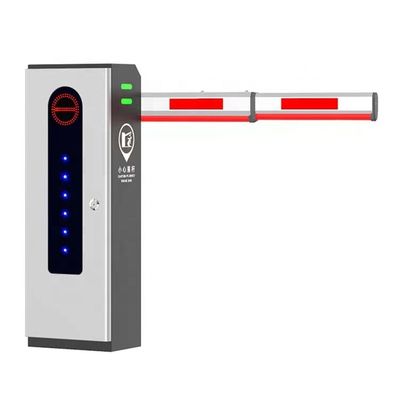

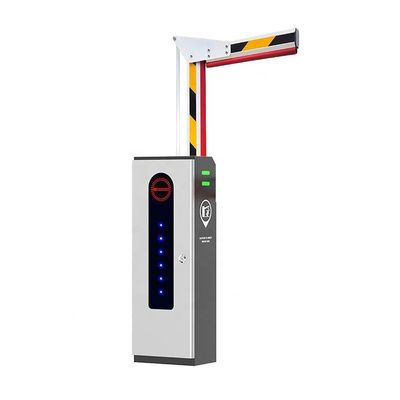

straight/folding/fence (without replacing any parts)
|
|
Boom length
|
2~6m
|
|
Size
|
355mm*280mm*1050mm
|
|
Remote control distance
|
within 30m
|
|
Input interface
|
+12v relay signal or ≥100ms pulse signal
|
|
Parking Gate Voltage
|
AC220V 10% 50Hz / DC 12V
|
|
Humidity
|
≤90%
|
|
IP
|
IP54
|
|
Lever to Ground
|
890mm
|
Feature of automatic parking gate barrier
The chassis is durable, waterproof and suitable for outdoor use.
Chassis door with traffic light, more beautiful at night.
The use of integrated movement, full mold quantitative production, greatly improve the stability of the product, to ensure the running accuracy of the gate.
Using precision four link mechanism, make the brake rod fast and smooth operation, effectively reduce the brake rod jitter, reduce the motor load, prolong the service life of the gate.
The system is highly integrated and can be easily connected to a variety of supporting equipment.
Adopt lifting time out protection, effectively protect the motor, can be all-weather operation, prevent the brake abnormal damage.
Using Angle sensor to detect the position of brake rod, high precision, stable operation.
Support standard remote control, intelligent learning function, support 20 groups of remote control coding.
Set photoelectric, mechanical control in one, flexible operation, convenient, safe and reliable use.
Company Introduction
Our Services & Strength
FAQ
|
|
