| Brand Name: | AnKuai |
| Model Number: | AK-D115 |
| Price: | $295.00/pieces 1-99 pieces |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |

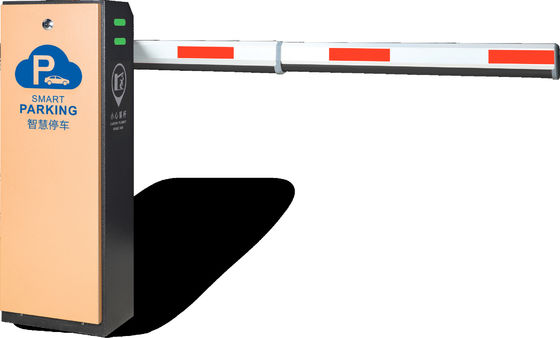

AK-D115 is a adjustable direction parking barrier gate with auto bounce back function, intelligent limited sensor and position memory function, which can normally work at very low temperature.
| working voltage | AC220V |
| motor power | 60W |
| ambient temperature | -30℃～80℃ |
| relative humidity | ≤90％ |
| length of gate lever | ≤6M |
| lifting time | 3S/6S |
| height of brake lever center from ground | 890MM |
| remote control distance | ≤30M |
| level of protection | IP54 |
| input interface | low level signal or contact signal |
| remote control frequency | 430.5MHZ |
1. Mechanical characteristics
●The chassis is durable and waterproof, suitable for outdoor use;
●The use of integrated movement, full mold quantitative production, greatly improve product stability, to ensure the running accuracy of the barrier gate;
●The use of precision four-link mechanism, so that the brake rod fast and smooth operation, effectively reduce the brake rod jitter, reduce the motor load, extend the service life of the barrier gate;
●60W integrated turboworm drive deceleration induction motor, smooth transmission, low noise, compact structure, can realize self-locking, no impact when blocking, protect the controller, extend the controller life;
●Manual lock mechanism, power failure through the motor at the bottom of the hand wheel to turn the manual lifting lever, without restriction;
2. Electrical characteristics
●The system is highly integrated and can easily access a variety of supporting equipment
● Adopt lifting time-out protection, effectively protect the motor, all-weather operation, to prevent improper damage to the brake;
● The Angle sensor is used to detect the position of the brake lever, with high precision and smooth operation; Rich status indicator function, convenient equipment use and after-sales maintenance;
●Support standard remote control, intelligent learning function, support 10 groups of remote control coding;
●The transformer with original imported magnetic core can also work stably in outdoor wet environment;
●Integrated optical, electrical and mechanical control, flexible and convenient operation, safe and reliable use;
3. Security features
● Encounter resistance rebound: brake rod in the process of falling, if the external force blocks, it will automatically raise the rod, reduce the damage caused by mistakes;
● Ground sense anti-smashing: the brake rod in the fall process, such as receiving the ground sense signal, it will automatically lift the rod, the trigger period does not fall, after the ground sense signal recovers, the brake rod automatically falls to ensure safety;
● Opening priority anti-smashing: the brake rod in the process of falling, if there is an emergency, whether it is in the opening or closing state, as long as the opening signal is received, the brake rod will perform the opening action;
● Anti-smashing rubber strip: the brake rod is equipped with rubber strip, which can reduce the loss caused by accidents;
