| Input voltage | AC220V±10%/50HZ |
| Motor power | 60W |
| Ambient temperature | -30℃~+80℃ |
| Relative humidity | ≤90% no condensation |
| Brake lever length | up to 6M |
| Lift bar time | 3S/6S |
| Remote control distance | ≤30m |
| Input interface | low level signal or contact signal |
|
| Brand Name: | AnKuai |
| Model Number: | AK-D115 |
| Price: | $295.00/pieces 1-99 pieces |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |
Product description of car parking system

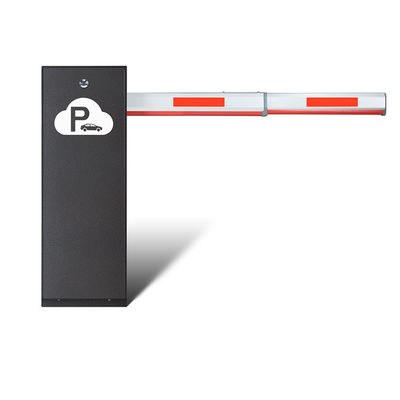

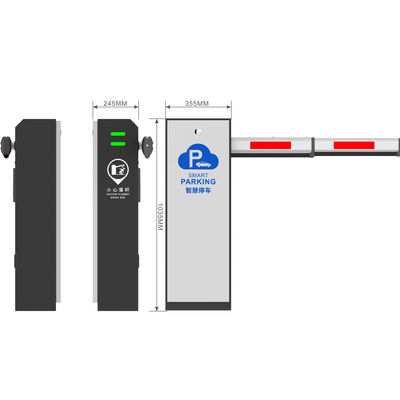

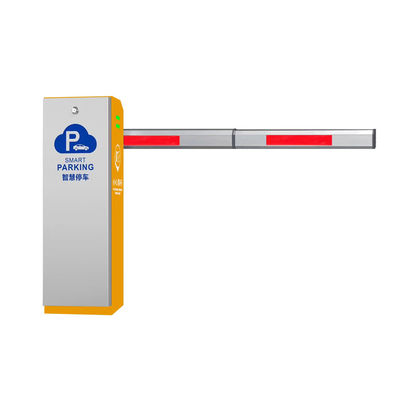

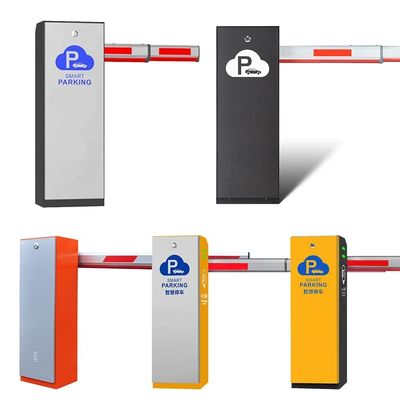

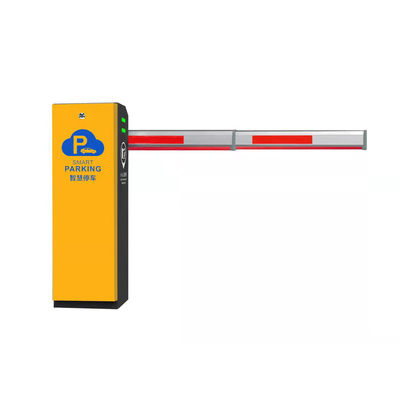

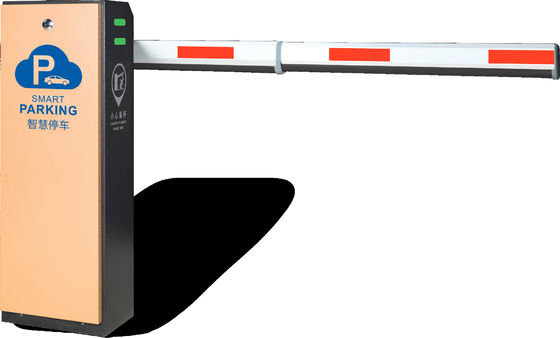

AK-D115 is a adjustable direction parking barrier gate with auto bounce back function, intelligent limited sensor and position memory function, which can normally work at very low temperature.
Specification of car parking system
| Input voltage | AC220V±10%/50HZ |
| Motor power | 60W |
| Ambient temperature | -30℃~+80℃ |
| Relative humidity | ≤90% no condensation |
| Brake lever length | up to 6M |
| Lift bar time | 3S/6S |
| Remote control distance | ≤30m |
| Input interface | low level signal or contact signal |
1, The chassis is durable, waterproof, can be used in outdoor environment.
2, The use of integrated movement, full mold quantitative production, greatly improve product stability, to ensure the running accuracy of the barrier gate.
3, The use of precision four-link mechanism, so that the brake rod fast and smooth operation, effectively reduce the brake rod jitter, reduce the motor load, extend the service life of the barrier gate.
4, The system is highly integrated, can easily access a variety of supporting equipment.
5, The use of lifting timeout protection, effective protection of the motor, all-weather operation, to prevent improper damage to the brake.
6, The use of Angle sensor to detect the position of the brake rod, high precision, stable operation.
7, Support standard remote control, intelligent learning function, support 10 groups of remote control coding.
8, Set photoelectric, mechanical control in one, flexible operation, convenient, safe and reliable use.
9, Encounter resistance rebound: brake rod in the fall process, if the external force blocks, it will automatically raise the rod, reduce the damage caused by mistakes.
10, Ground sense anti-smashing: the brake rod in the fall process, received the ground sense signal, automatic lifting rod, the trigger period does not fall rod, after the ground sense signal is restored, the brake rod automatically falls.
11, Opening priority anti-smashing: the brake rod in the process of falling, in the event of an emergency, whether in the opening or closing state, as long as the opening signal is received, the brake rod performs the opening action.
12, Anti-smashing rubber strip anti-smashing: the brake rod is equipped with rubber strip, which can reduce the loss caused by accidents.
Ankuai Intelligent Tech Inc. is a National hi-tech company which focuses on R&D, producing and sale all kinds of parking system, barrier gates, turnstiles, speed barrier gate, advertising barrier gate, bollard etc. Our products are wildly used on various places, such as airport, hotel, shopping mall, highway toll barrier gate residence community, school etc. Our company has over 50,000 square meters plant, 25 professional research staff, more than 300 skilled workers, and advanced product equipments, so we can provide high quality products, safer products and we also can provide OEM, ODM services to meet various demands.Till now, we have 73 distributors and 5 sub-companies which can provide fast local service. As a fast growing manufacturer with modern manufacturing facility, we keep getting rid of the stale and bring forth the fresh to meet market requirements and maximize customer's profits. Due to professional R&D team, advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world. As an ISO certificated company, till now we have got more than 130 national patents, much more than our competitors, our company is becoming the leading designer and manufacturer. "Safe access, Quick pass" is our slogan. We try our best to maintain a long-term, stable and mutual benefit relationship with all partners, and looking forward to creating miracles through win-win cooperation with you.
