| Brand Name: | AnKuai |
| Model Number: | AK-D115 |
| Price: | $322.00/pieces 1-19 pieces |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |

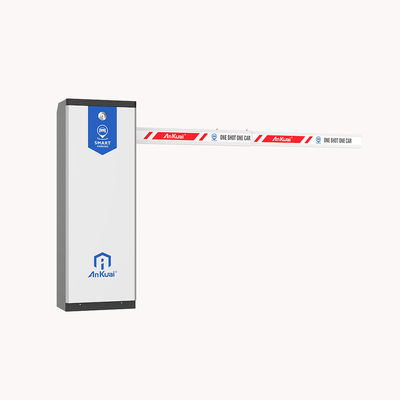

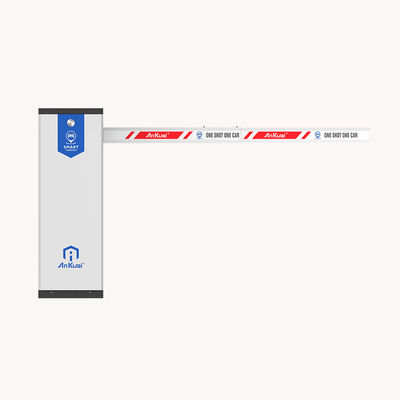

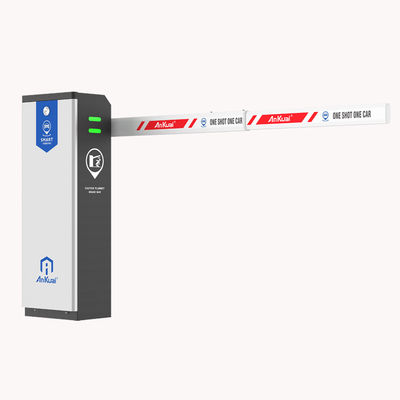

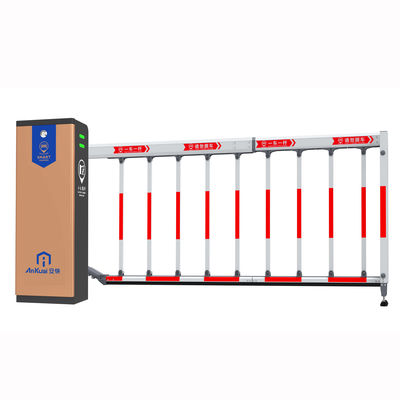

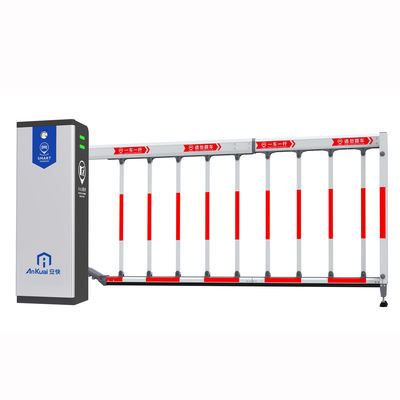

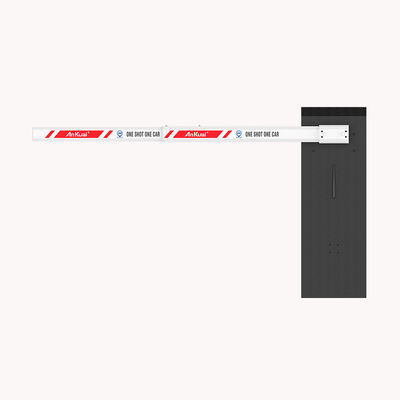

Product description of boom barrier gate
AKD115C is a adjustable direction DC24V parking barrier gate with auto bounce back function, intelligent limited sensor and position memory function, which can normally work at very low temperature.
The operation of the AC barrier gate is simple, and the speed of the take-off and landing rod is determined according to the speed ratio of the reducer.
Specification of boom barrier gate
| Input voltage | AC220V±10%/50HZ |
| Motor power | 60W |
| Ambient temperature | ﹣30℃～+80℃ |
| Relative humidity | ≤90% non-condensation |
| Boom length | 1.5～6m |
| Landing bar time | 3s/6s |
| Remote control distance | ≤30m |
| Model | AKD115 |
Feature of boom barrier gate
1. Mechanical characteristics
●The chassis is durable and waterproof, suitable for outdoor use;
●The use of integrated movement, full mold quantitative production, greatly improve product stability, to ensure the running accuracy of the barrier gate;
●The use of precision four-link mechanism, so that the brake rod fast and smooth operation, effectively reduce the brake rod jitter, reduce the motor load, extend the service life of the barrier gate;
●60W integrated turboworm drive deceleration induction motor, smooth transmission, low noise, compact structure, can realize self-locking, no impact when blocking, protect the controller, extend the controller life;
●Manual lock mechanism, power failure through the motor at the bottom of the hand wheel to turn the manual lifting lever, without restriction;
2. Electrical characteristics
●The system is highly integrated and can easily access a variety of supporting equipment
● Adopt lifting time-out protection, effectively protect the motor, all-weather operation, to prevent improper damage to the brake;
● The Angle sensor is used to detect the position of the brake lever, with high precision and smooth operation; Rich status indicator function, convenient equipment use and after-sales maintenance;
●Support standard remote control, intelligent learning function, support 10 groups of remote control coding;
●The transformer with original imported magnetic core can also work stably in outdoor wet environment;
●Integrated optical, electrical and mechanical control, flexible and convenient operation, safe and reliable use;
3. Security features
● Encounter resistance rebound: brake rod in the process of falling, if the external force blocks, it will automatically raise the rod, reduce the damage caused by mistakes;
● Ground sense anti-smashing: the brake rod in the fall process, such as receiving the ground sense signal, it will automatically lift the rod, the trigger period does not fall, after the ground sense signal recovers, the brake rod automatically falls to ensure safety;
● Opening priority anti-smashing: the brake rod in the process of falling, if there is an emergency, whether it is in the opening or closing state, as long as the opening signal is received, the brake rod will perform the opening action;
● Anti-smashing rubber strip: the brake rod is equipped with rubber strip, which can reduce the loss caused by accidents;
Company Profile
Ankuai Intelligent Tech Inc. is a National hi-tech company which focuses on R&D, producing and sale all kinds of parking system, barrier gates, turnstiles, speed barrier gate, advertising barrier gate, bollard etc. Our products are wildly used on various places, such as airport, hotel, shopping mall, highway toll barrier gate residence community, school etc. Our company has over 50,000 square meters plant, 25 professional research staff, more than 300 skilled workers, and advanced product equipments, so we can provide high quality products, safer products and we also can provide OEM, ODM services to meet various demands.Till now, we have 73 distributors and 5 sub-companies which can provide fast local service. As a fast growing manufacturer with modern manufacturing facility, we keep getting rid of the stale and bring forth the fresh to meet market requirements and maximize customer's profits. Due to professional R&D team, advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world. As an ISO certificated company, till now we have got more than 130 national patents, much more than our competitors, our company is becoming the leading designer and manufacturer. "Safe access, Quick pass" is our slogan. We try our best to maintain a long-term, stable and mutual benefit relationship with all partners, and looking forward to creating miracles through win-win cooperation with you.
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(35.00%),North America(20.00%),Western Europe(15.00%),Southeast Asia(10.00%),South America(5.00%),Africa(5.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Barrier,Advertising Barrier Gate,Turnstile,Roadblock Equipment
4. why should you buy from us not from other suppliers?
ISO certificated factory; 20 year R&D experience; 25 professional research staff; More than 50,000 squaremeters plants; More than 300 skilled workers More than 130 patents; Fast delivery
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
|
|
