Place of Origin: | China |
Brand Name: | Ankuai |
Certification: | CE |
Model Number: | AKT331 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $1,730 - $2,160/set |
Packaging Details: | Carton and wooden |
Delivery Time: | 7-10 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 Set/Sets per Month |

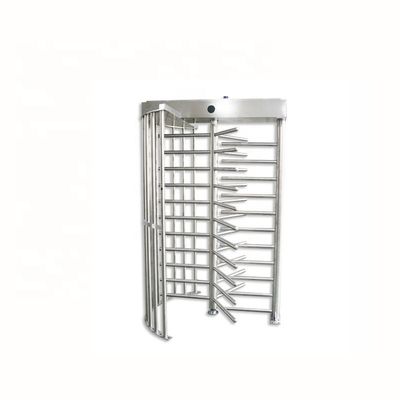

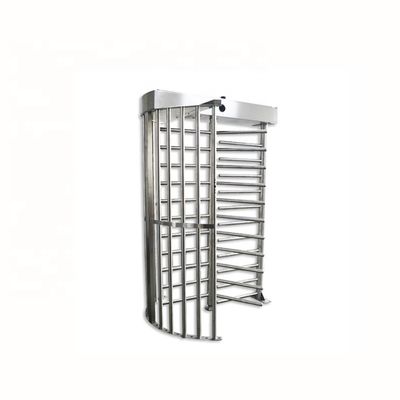

Product Name: | Automatic Safe Rotation Full Height Turnstile Gate | Material: | #304 Stainless Steel |
---|---|---|---|
Dimension: | 1630*1500*2300mm | Color: | Silver White Or Customize |
Passage Width: | 600mm | Voltage: | AC220V ±10% 50Hz |
Communication Interface: | RS485 (Distance: Within 1200m) | Security: | High-level Security |
Weather Resistance: | Suitable In Outdoor | Power Supply: | AC220V/110V,50/60Hz |
High Light: | full height turnstile gate,SUS304 Full Height Turnstile,600mm safe entry turnstile |
Model Number |
AKT331 |
Voltage |
AC220V ±10% 50Hz |
Colour |
Silver white or customize |
Material |
#304 Stainless Steel |
Pass speed |
30 persons/min (normally open), 20 persons/min (normal close) |
Dimension |
1630*1500*2300mm |
Case Thickness |
1.2mm |
Passage width |
600mm |
Partition angle | 120 degrees |
Interface |
Relay Signal |
Communication interface |
RS485 (Distance: within 1200m) |
Access control | ID card reader, barcode scanner, facial and fingerprint module, etc. |
Main Functions
1. Auto-reposition function: After the card is read, if passengers don't pass within the regulated time period, the turnstile will be locked automatically.
2. Bi-direction passing or uni-direction.
3. When the power is off, the arm will be locked automatically.
4. Self-lock function: arm will be blocked automatically after the passenger passing.
5. 4 arms are always closed with each turning 90 degrees.
6. Standard interfaces are convenient for the connection with different readers which can send relay signals.
7. RS485 interfaces can connect the turnstile to the computer directly.
8. Stable running with little noise.
