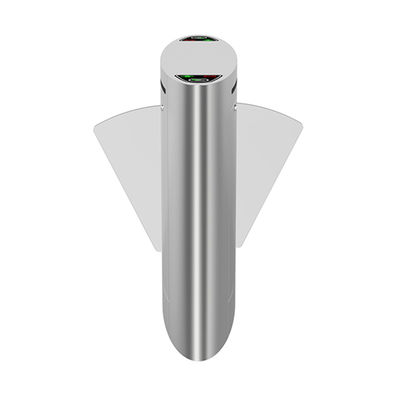

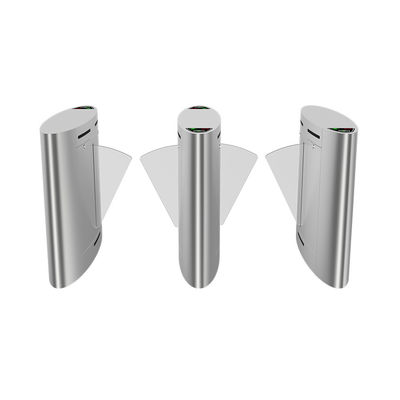

Flap Barrier Access Security Turnstile Gate High Throughput Anti Tailgating

Brand Name:	AnKuai
Model Number:	AKT315
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton and wooden case. Wooden case is suggested with extra charge but safer.
Payment Terms:	D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Power Supply:

AC 220V/110V +-10% 50/60 Hz (optional)

Working Environment:

Indoors Or Outdoors With Shed

Humidity:

<95%, Without Concretion

Keyword:

Flap Barrier Gate

Communication Interface:

RS485 (Distance: <=1200m)

Arm Open/Close Time::

Supply Ability:

50000 Set/Sets per week

Highlight:

Anti Tailgating Security Turnstile Gate

110V Security Turnstile Gate

High Throughput access turnstiles

Product Description

Widely Used High Throughput Anti-tailgating Flap Barrier Turnstile Gate

1. Problem-self-checking function.

2. Stable running with little noise.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. Stable running with little noise.

6. Arm Turning: Bi-direction

Power Supply	AC220V±10V ,50Hz / AC110V±10V ,60Hz
Power Consumption	100W/24V
Passage Width	600mm
Passing Speed	30 persons/min (normal open), 20 persons/min (normal close)
Arm Open/Close Time	1s
Communication Interface	RS485 (Distance: <=1200m)
Material	Housing - 304 stainless steel; Arm – Plexiglass
Housing Dimension	14003001000mm
Arm Length	280mm
Working Environment	Indoors or outdoors with shed

Flap Barrier Access Security Turnstile Gate High Throughput Anti Tailgating 0

Flap Barrier Access Security Turnstile Gate High Throughput Anti Tailgating 1

Flap Barrier Access Security Turnstile Gate High Throughput Anti Tailgating 2

FAQ

1. What is your company's strength in this field?
We are the one of the greatest head leaders in this field. We are ISO approved factory, taking place of over 50,000 meters square region, with 130+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.

2. How do you guarantee your quality of product / quality control?
We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.

3. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.

4. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package or logo, 3-10 working days longer

5. Do you provide quality guarantee/warranty and after sale service?
We have 1-year quality guarantee. Our well-trained and passionate sales and professional engineers can provide you with timely help.

6. What are your after-sale services?
1) For all your inquiries, response can be made within 24 hours.
2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and the best price.
3) Our experienced engineers can guide you about how to use our products. Call our after-sales team at any time.
