Flap Barrier Turnstile
>
Crowd Control Flap Barrier Gate Airport Turnstile For Luxury Gym

Crowd Control Flap Barrier Gate Airport Turnstile For Luxury Gym

Brand Name: AnKuai
Model Number: AKT315
MOQ: 1 set
Price: Negotiable
Packaging Details: Carton and wooden case. Wooden case is suggested with extra charge but safer.
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Power Supply:
AC 220V/110V +-10% 50/60 Hz (optional)
Working Environment:
Indoors Or Outdoors With Shed
Humidity:
<95%, Without Concretion
Keyword:
Flap Barrier Gate
Communication Interface:
RS485 (Distance: <=1200m)
Material:
Housing - 304 Stainless Steel; Arm – Plexiglass
Supply Ability:
50000 Set/Sets per week
Highlight:

Crowd Control Flap Barrier Gate

,

220V Flap Barrier Gate

,

Airport Turnstile

Product Description
Direct Supplier Airport Crowd Control Flap Barrier Gate Turnstile For Luxury Gym




1. Stable running with little noise.
2. Working Environment: Indoors or outdoors with shed
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Stable running with little noise.
6. Arm Turning: Bi-direction


Power Supply AC220V±10V ,50Hz / AC110V±10V ,60Hz
Power Consumption 100W/24V
Humidity <95%, without concretion
Temperature -15 to 60 degrees
Passage Width 600mm
Passing Speed 30 persons/min (normal open), 20 persons/min (normal close)
Arm Open/Close Time 1s
Input Interface +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface RS485 (Distance: <=1200m)
Material Housing - 304 stainless steel; Arm – Plexiglass
Housing Dimension 1400*300*1000mm
Arm Length 280mm
Working Environment Indoors or outdoors with shed

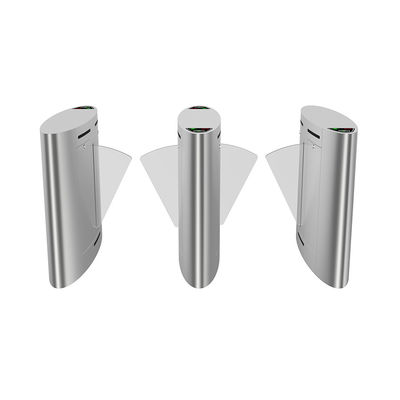

Crowd Control Flap Barrier Gate Airport Turnstile For Luxury Gym 0

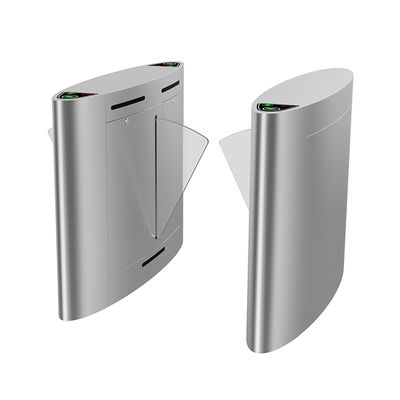

Crowd Control Flap Barrier Gate Airport Turnstile For Luxury Gym 1

Crowd Control Flap Barrier Gate Airport Turnstile For Luxury Gym 2



FAQ



1. What is your company's strength in this field?
We are the one of the greatest head leaders in this field. We are ISO approved factory, taking place of over 50,000 meters square region, with 130+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.

2. How do you guarantee your quality of product / quality control?
We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.

3. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.

4. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package or logo, 3-10 working days longer

5. Do you provide quality guarantee/warranty and after sale service?
We have 1-year quality guarantee. Our well-trained and passionate sales and professional engineers can provide you with timely help.

6. What are your after-sale services?
1) For all your inquiries, response can be made within 24 hours.
2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and the best price.
3) Our experienced engineers can guide you about how to use our products. Call our after-sales team at any time.
