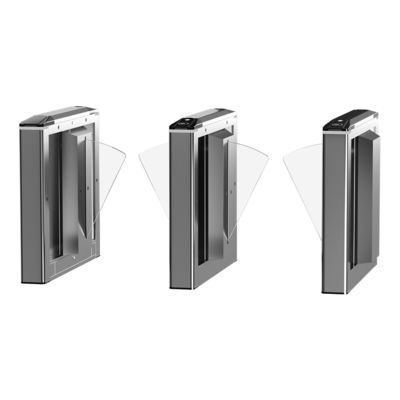

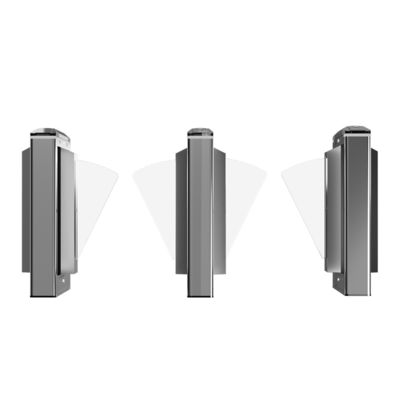

Sliding Flap Barrier Turnstile Gate 304 Stainless Steel Access Control
| Brand Name: | AnKuai |
| Model Number: | AKT313 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Carton and wooden case. Wooden case is suggested with extra charge but safer. |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, |
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Power Supply:
AC220V±10V ,50Hz / AC110V±10V ,60Hz
Power Consumption:
80W/24V
Temperature:
-20 To 70 Degrees
Humidity:
<95%, Without Concretion
Passage Width:
600mm
Passing Speed:
35~40 Persons/min
Delivery Time:
5-8 working days
Supply Ability:
50000 Set/Sets per week
Highlight:
600mm Flap Barrier Turnstile
,Stainless Steel Flap Barrier Turnstile
,sliding turnstile barrier gate
Product Description
High Quality Unique Design 304 Stainless Steel Flap Barrier Turnstile Gate
Flap turnstile has standard electrical interface which can be connected with ID cards, IC cards, magnetic
cards, barcode cards etc.
cards, barcode cards etc.
| Power Supply | AC220V±10V ,50Hz / AC110V±10V ,60Hz |
| Power Consumption | 30W/24V |
| Temperature | -20 to 70 degrees |
| Humidity | <95%, without concretion |
| Passage Width | 600mm |
| Passing Speed | 35~40 persons/min |
| Arm Open/Close Time | 1s |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance: <=1200m) |
| Material | Housing - 304 stainless steel; Arm – Plexiglass |
| Housing Dimension | 1200*300*980mmmm |
| Arm Length | 268mm |
| Working Environment | Indoors or outdoors with shed |
FAQ
1. What is your company's strength in this field?
We are the one of the greatest head leaders in this field. We are ISO approved factory, taking place of over 50,000 meters square region, with 130+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.
2. How do you guarantee your quality of product / quality control?
We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.
3. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.
4. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package or logo, 3-10 working days longer.
We are the one of the greatest head leaders in this field. We are ISO approved factory, taking place of over 50,000 meters square region, with 130+ national patents. We have strong R&D team with 30+ professional R&D staff, and over 300 well-trained assembly workers. So far, we have 76 distributors and multiple sup companies in China, and more than 50 distributors all around the world.
2. How do you guarantee your quality of product / quality control?
We have ISO9001 and CE certificate among our products, all details can be found in our website. We commit to provide the best product quality possible to our customers.
3. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.
4. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package or logo, 3-10 working days longer.
