| Place of Origin: | China |
| Brand Name: | AnKuai |
| Certification: | CE |
| Model Number: | AKT328 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD873-USD764/set |
| Packaging Details: | High quality carton/ Wooden box |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, L/C, Western Union, D/P |
| Supply Ability: | 5000 sets per day |
| Material: | SS 304 | Size: | 1500*120*980mm |
|---|---|---|---|
| Power Supply: | AC220V/110V | Passing Direction: | Single Way Or Bi-direction |
| Application: | Indoor/outdoor | Passage Width: | 600mm (standard), 1200mm (max) |
| Turnstile Interface: | Pulse Signal | Temperature: | -40~60°C |
| Model: | AKT328 | Model Name: | Speed Gate Turnstile |
| High Light: | Subway flap turnstile gate,Airport flap turnstile gate,High Speed Security Access Gates |
||

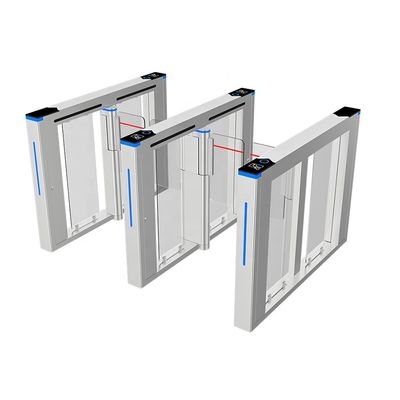

Subway Airport High-Speed Gate Security Turnstile Swing Barrier Gate
• Speed gate turnstile is designed to control pedestrians entering or exiting restricted areas, usually used for high pedestrian traffic flow in both directions.
• The body is made from 304 brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environments.
• It can be integrated with any kind of access controller system (e.g.: IC/ID, Push button, Fingerprint and Biometric device).
• In case of emergency, the speed turnstile arm will open automatically to allow free passage.
• Speed Turnstiles are suited for elegant and luxury entrance solutions.
Product Description
| Model No | AKT328 |
| Cabinet Material | 304 Stainless Steel |
| Dimensions | 1500*120*980mm (L*W*H) |
| Arm Open/Close Time | 1s |
| Passage Width | Standard 600mm, Max 1200mm |
| Arm Lenght | <=500mm |
| Dry Contact | 12V |
| Direction | Bi-directional |
| Service Life | 5 million times |
| Communication Interface | RS485(distance<=1200m) |
| Power Supply | AC 220V/110V ±10% 50/60Hz (optional) |
| Opening /Closing Speed | 30-45 persons per minute |
| Card-reading Window | Two |
| Working Environments | Indoor or outdoor |
• The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
• Alarm function, in case of illegal intrusion and reverse intrusion.
• Infrared sensor to prevent pedestrians from getting clamped.
• Anti-breakthrough function: the gate is locked automatically until the opening signal is received.
• Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
• LED indicator.
•When power is off, the speed gate turnstile will open automatically, which complies with fire safety requirements.
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are one of the TOP 2 companies in the turnstiles and Barriers system industry with more than 14 years. All the car parking barrier system management software and turnstile design software are developed by our R&D team.
2. Q: What kind of technical support you can provide?
A: We have a professional R&D team and technical department, they can assist you in any installation task and technical guide. And if necessary, our engineer could fly to your country to provide service.
3. Q: Can you provide OEM service?
A: Yes we can. As we have our own R&D team, we can develop the software and manufacture the hardware per your request.
