Ten years of craftsmanship, a hundred years of promise.
|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Price:||$720.00 - $792.00/sets|
|Packaging Details:||Standard package is carton box. Wooden case will be extra cost and suggested.|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union|
|Supply Ability:||10000 Set/Sets per Month|
|Product Material:||304 Stainless Steel||Opening Time:||0.8-1 Sec|
|Passage Width:||600-1200mm||Control Method:||IC/ID, QR Code, Fingerprint, Face Recognition, Etc.|
|Dimension:||L1400*W120*H1020mm (Single Core)||Power Consumption::||DC24V/40W|
|Passage Direction:||Bi-drectional/uni-directional||MCBF:||5,000,000 Cycles|
|Arm Material:||Acrylic||Pass Rate:||30-45 Persons/min|
|Communication Interfaceion:||RS485/IP/TCP||Keywords:||Luxury Speed Swing Turnstile Gate|
Pedestrian High Speed Gate,
40W High Speed Gate,
fingerprint Sliding Turnstile

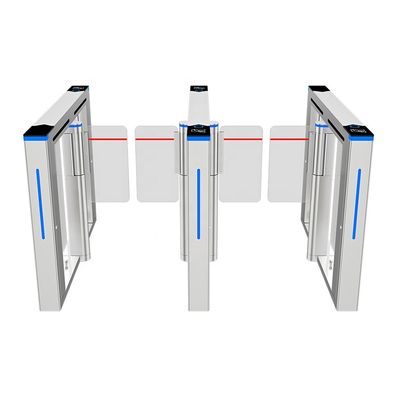

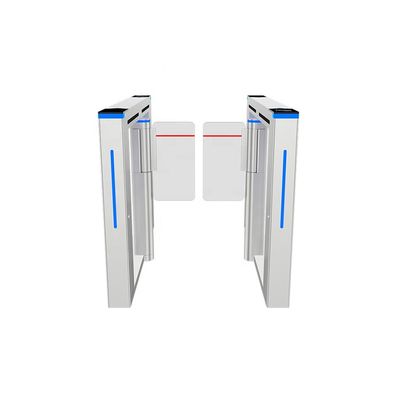

Pedestrian Access Controller Automatic Sliding Barrier Turnstile High Speed Gate
High-Speed Swing Gate is ideal for processing pedestrian traffic into a corporate facility or an IT office. The area of application may be as creative as the stunning design itself. This Pedestrian High-Speed Swing Gate has at its heart a Brushless DC Drive that offers several years of trouble-free operation.
1. The operation of the entire system uses a mechanical positioning device. The operation process is controlled by sensors without mechanical collision.
2. CNC machining technology, fine surface treatment, the nickel-plated surface to prevent rust.
3. Standard external electrical interface with photoelectric safety isolation.
4. Movement structure: 24V DC brushless motor + encoder technology + clutch brake.
5. Passage: AB (swipe card to A, free to B), BA (swipe card to B, free to A), AA (two-way brush cartoon line), BB (two-way free passage).
6. Red/Green Light: direction indication.
7. Drive mode: DC24V brushless motor.
8. Safe mode: free pass after power off.
1- Movement structure: Adopting patent technology non-destructive mechanical structure with fully automatic movement.
2- Alarm function: alarm when illegal intrusion, trailing, passing overtime, passing failure.
3- Device adjustment function: Through the LED menu and buttons on the main control board, running state and multiple working modes can be set.
4- Anti-pinch function: Infrared signal feedback, thus effectively protecting the safety of pedestrians.
5- Anti-trailing function: two-way anti-trailing function.
6- Anti-shock protection function.
|Product Material||304 Stainless Steel|
|Connection Input||TCP / IP Input|
|Dimension||L1400*W120*H1020mm (Single core)|
|System Connected||ID card reader, barcode scanner, LED control, face recognition, etc.|
|Arm Turning||bi-direction/uni-direction optional|
reset automatically when collision forcibly
swipe card and fingerprint for option
|Application||Office, School, Park, Supermarket, Subway|
|Passing Speed||40~60 people/min|
