Ten years of craftsmanship, a hundred years of promise.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | AnKuai |
| Certification: | CE |
| Model Number: | AKT328 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $720.00 - $792.00/sets |
| Packaging Details: | Standard package is carton box. Wooden case will be extra cost and suggested. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 Set/Sets per Month |
| Product Material: | 304 Grade Stainless Steel | Opening Time: | 0.8-1 Sec |
|---|---|---|---|
| Passage Width: | 600-1200mm (max) | Control Method: | IC/ID, QR Code, Fingerprint, Face Recognition, Etc. |
| Dimension: | 1400*120*1020mm (Single Core) | Power Consumption:: | DC24V/40W |
| Arm Turning:: | Bi-direction | Port: | Shenzhen |
| MCBF: | 5,000,000 Cycles | Arm Material: | Acrylic |
| High Light: | Luxury Half Height Turnstile,40W Half Height Turnstile,full height optical turnstiles |
||

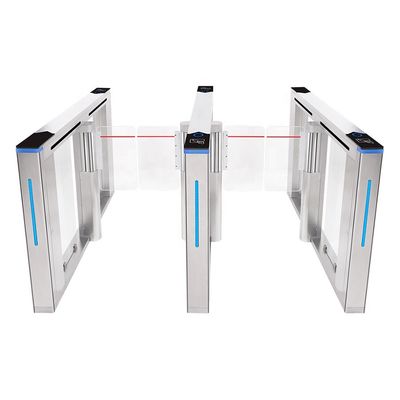

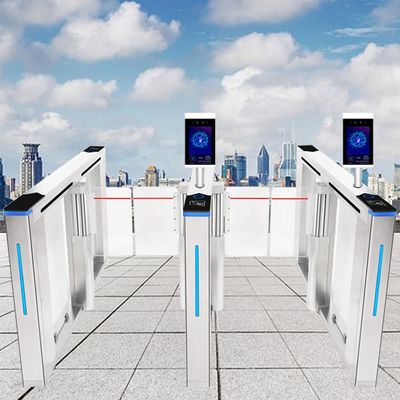

Luxury Turnstile Speed Gate Turnstile Price Optical Half Height Turnstiles for Buildings
Product Description
Overall plate structure, the box materials use standard 304 stainless steel, double waterproof treatment. Can be installed indoors, outdoors with a shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting function
Feature
1. Fault self-test and alarm functions, convenient user maintenance and use.
2. Via the control board Built into a small dish, Programmable devices run status.
3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meets resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg ).
4. Break into protection function, when the gate signal is not received, the arm is automatically locked.
5. Relative with a variety of reader devices attached, working when receiving relay switch signal.
6. Remote control and management by the management computer.
7. Power-off arm Automatic open, turn on automatically closed, can meet fire safety requirements.
8. Pinch function (bridge type four pairs of infrared optional).
9. Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared).
10. Counting function (optional).
Scope
1. Access control system: Combine with RFID/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, and construction sites.
2. Ticketing system: Combine with RFID/QR code/barcode readers, apply to public parks, tourism areas, subways, bus stations, airports, docks, playgrounds, gyms, cinemas, cantine.
3. Consumption system: Combine with IC card readers, apply to supermarkets, cantine, gyms, subway, and bus stations.
4. Time attendance system: Combine with RFID/fingerprints facial/veins readers, apply to factories, offices, schools, etc.
5. Construction system: Combine with CCTV/LED screens, apply to a construction site for safety.
6. ESD system: Combine with professional ESD tester for factory, special area entrance.
|
Model Number
|
AKT328
|
|
Product Material:
|
304 Stainless Steel
|
|
Opening Time:
|
1s
|
|
Aisle Width:
|
600mm
|
|
Connection Input:
|
TCP / IP Input
|
|
System Connected with:
|
ID card reader, barcode scanner, LED control, face recognition, etc.
|
|
Dimension:
|
1400*120*1020mm (Single core)
|
|
Passage Width:
|
600-1200mm (max) |
|
Power Consumption:
|
DC24V/40w
|
|
Interior Structure:
|
Steel Frame Structure
|
|
Arm Turning:
|
Bi-direction
|
FAQ
* How about your company's actual strength?
We have more than 600 employees, an R&D group with 50 people, our factory is more than 50000 square meters.
* How about the quality of your products?
We choose German, Japanese, and Chinese lead brand accessories to ensure product quality from the source. At the factory, we implement 5S management to control the production process.
* How do you do after-sale service?
We provide lifetime technical support online, by email, video, phone, etc. We have engineers speaking English, convenient to communicate with you directly.
* How about the lead time?
Regular products need 5-7 working days. Customized products need 10-15 working days.
* How long is your warranty period?
One-year guarantee & lifetime technical support.
