Ten years of craftsmanship, a hundred years of promise.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | AnKuai |
| Certification: | CE |
| Model Number: | AKT328 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $720.00 - $792.00/sets |
| Packaging Details: | Standard package is carton box. Wooden case will be extra cost and suggested. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 Set/Sets per Month |
| Product Material: | 304 Stainless Steel | Unlock Time: | 0.8-1 Sec |
|---|---|---|---|
| Passage Width: | 600-1200mm (max) | Access Control System: | ID/IC Card ,fingerprint,face Recognition,Barcode/QR Code,phone App,ESD System,visitor System,etc |
| Dimension: | 1400*120*1020mm (Single Core) | Power Consumption:: | DC24V/40W |
| Access Direction: | Single Directional/Bi-directional | MCBF: | 5,000,000 Cycles |
| Arm Material: | Acrylic | Keyword: | Spped Gate Turnstile |
| Driving Mode: | Brushless Motor | Traffic Speed: | 35 People/min |
| High Light: | Access Control Speed Gate Turnstile,Passage Speed Gate Turnstile,bi directional turnstile |
||

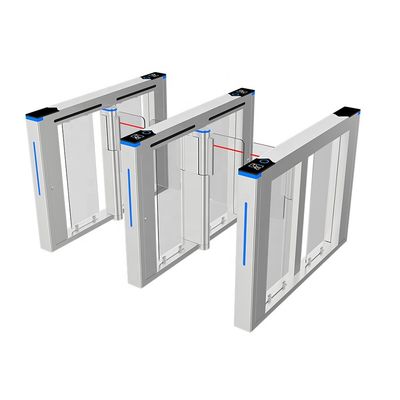

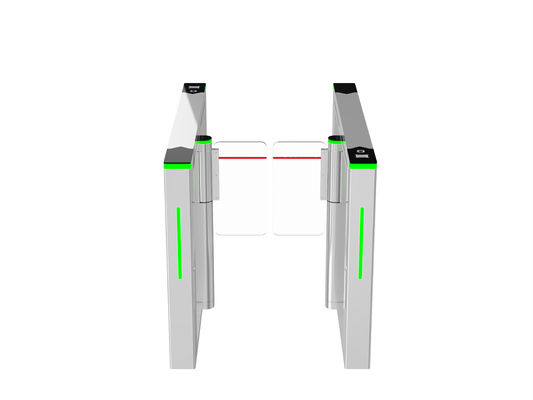

Access control Gate Turnstile Supplier Turnstiles Passage Speed Gate Face Recognition Turnstiles
Swing Barrier Gate Turnstile offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It's high speed gate for quick passing. The elegant & slim design makes it suitable for commercial buildings, office, government building etc. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding
Main Features
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
Occasion Application
Suitable for commercial buildings, Schools, GYM fitness centers or clubs, subways, airports, therm parts, Supermarket, Train stations, Library, exhibition halls, Government buildings, financial institutions, clubs, and other high-end Places related to entrance access control solutions.
|
Model Number
|
AKT328
|
|
Product Material:
|
304 Stainless Steel
|
|
Opening Time:
|
1s
|
|
Aisle Width:
|
600mm
|
|
Connection Input:
|
TCP / IP Input
|
|
System Connected with:
|
ID card reader, barcode scanner, LED control, face recognition, etc.
|
|
Dimension:
|
1400*120*1020mm (Single core)
|
| Motor: | Brushless DC motor |
|
Passage Width:
|
600-1200mm (max) |
|
Power Consumption:
|
DC24V/40w
|
| Indication Way: | Acoustic alarming, LED indicator |
|
LED light:
|
Entry or no-entry display direction arrows |
|
Arm Turning:
|
Bi-direction
|
FAQ
Q. How about the quality of your products?
A:We are in the highest level of quality with the most competitive price. At factory, we implement 5S management to control production process.
Q. How do you do after-sale service?
A:We provide life-time technology support on line, by emails, video, phone etc , convenient to communicate with you directly.
Q. How about the lead time?
A:Normally we have stock for the hot sale models of standard products.Regular products need 3-5 working days. The customized products need 5-10 working days.
Q. How long is your warranty period?
A:One-year guarantee & Life-time technology support.
Q. How about your package?
A:Seaworthy wooden case + Carton.
