| Brand Name: | ANKUAI |
| Model Number: | AKT303 |
| MOQ: | 1 peice |
| Price: | USD 545-650 /Peice |
| Packaging Details: | 1470×320x1065cm |
| Payment Terms: | L/C, T/T, Western Union |
| Model Number | AKT315 |
| Power Supply | AC220V ± 10V |
| Power Consumption | 100W/24V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | 600mm |
| Passing Speed | 30 People/Minute |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction/Uni-direction |
| Humidity | ＜95% |
| Material | 304 SUS Hairline |

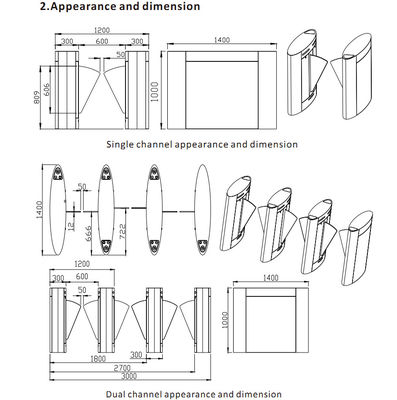

| Dimension | 1400x300x1000mm |
1. Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
2. A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3. Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4. Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5. Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
6. Single or bi-directional function in mechanical and electrical versions.
7. Automatic reset of barrier arms after each passage.
8. Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
9. Adjustable time out delay
|
