| Brand Name: | AnKuai |
| Model Number: | AKT328 |
| MOQ: | 1 set |
| Price: | $720.00 - $792.00/sets |
| Packaging Details: | Standard package is carton box. Wooden case will be extra cost and suggested. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |

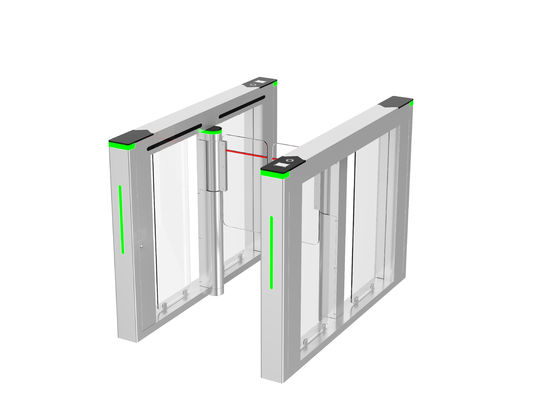

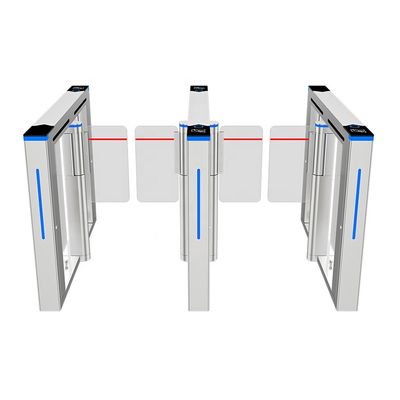

Intelligent Full Automatic QR Code Reader Turnstile Swing Barrier Gate Speed Turnstile Gate
Speed Gates provide a fast, dynamic and secure way to manage your entrance control. The slim design PG300 paddle-leafed speed gate is made with safe transparent plexiglass available in a range of optional glass heights and lane widths. They are easy to install and are suitable for any building where there is a need to control and manage the flow of pedestrians and help to enhance the image of your business.
Speed Gates are electronic optical turnstile gates that allow quick access. They utilize optical sensors and card reader access to quickly process pedestrian traffic and determine their entry credentials rapidly. These advanced electronic optical turnstiles are top-of-the-line and can also control for one-way or bi-directional access control.
Main Features
1. Fault detection and alarm functions, easy to use and maintain.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal is received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with a variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto closes when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
Occasion Application
Speed Gates are used in high-traffic areas. They are often used in office buildings, corporate lobbies, subway terminals, and university facilities. These turnstile gates are used to process large crowds of pedestrians without causing a backup. Speed gates are perfect for any modern application because of their sleek and sophisticated styling.
|
Model Number
|
AKT328
|
|
Product Material:
|
304 Stainless Steel
|
|
Opening Time:
|
1s
|
|
Aisle Width:
|
600mm
|
|
Connection Input:
|
TCP / IP Input
|
|
System Connected with:
|
ID card reader, barcode scanner, LED control, face recognition, etc.
|
|
Dimension:
|
1400*120*1020mm (Single core)
|
| Motor: | Brushless DC motor |
|
Passage Width:
|
600-1200mm (max) |
|
Power Consumption:
|
DC24V/40w
|
| Indication Way: | Acoustic alarming, LED indicator |
|
LED light:
|
Entry or no-entry display direction arrows |
|
Arm Turning:
|
Bi-direction
|
FAQ
Q. How about the quality of your products?
A: We are at the highest level of quality with the most competitive price. At the factory, we implement 5S management to control the production process.
Q. How do you do after-sale service?
A: We provide lifetime technical support online, by email, video, phone, etc, convenient to communicate with you directly.
Q. How about the lead time?
A: Normally we have stock for the hot sale models of standard products. Regular products need 3-5 working days. The customized products need 5-10 working days.
Q. How long is your warranty period?
A: One-year guarantee & lifetime technical support.
Q. How about your package?
A: Seaworthy wooden case + Carton.
|
