| Place of Origin: | China |
| Brand Name: | ANKUAI |
| Certification: | CE, ISO |
| Model Number: | AKT326 |
| Minimum Order Quantity: | 1 peice |
|---|---|
| Packaging Details: | 1260×220x1040mm |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Peices/Month |

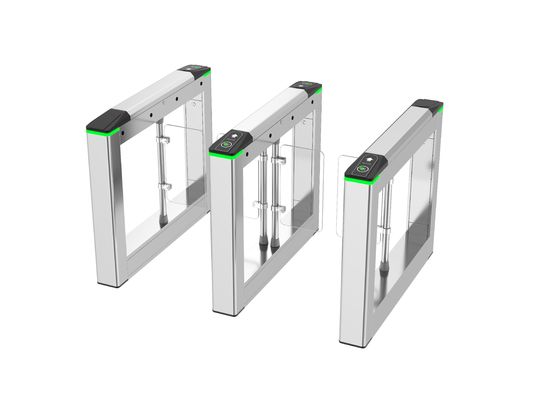

| Price: | Negotiate | Product Name: | Swing Barrier Gate |
|---|---|---|---|
| Size: | 1200x150x980mm | Passage Width: | 600mm（Customized） |
| Power Supply: | AC 220V, 50/60hz | Material: | SUS304 Hairline 400# |
| Working Temperature: | -25 To +75 ℃ | Pass Rate: | 30 People/min |
| Arm Turning: | Uni-directional Or Bi-direction | Packing Detail: | Wooden Case |
| High Light: | CE Approved Glass Swing Turnstile,Security Glass Swing Turnstile,High Speed Gate Turnstile |
||
| Model Number | AKT326 |
| Power Supply | AC220V ± 10% |
| Power Consumption | 40W/24V |
| Temperature | -25 to 75 degrees |
| MOQ | 1 PC |
| Passage Width | 600mm |
| Passing Speed | 30 People/Minute |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction/Uni-direction |
| Humidity | ＜95% |
| Material | 304 SUS Hairline |
| Dimension | 1200x150x980mm |
(1) Running stable without noise and mechanical impact.
(2) The passing person number of the persons can be set.
(3) Several ways of working molds for your demand chosen.
(4) Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.
(7) The standard electrical interface connected with various kinds of reader and writer equipment.
(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED.
(10) Beam can be lifted and fall when power is cut-off.
(11) The function with or without card-reading memory cab be set according to your demand.
(12) Self-check and alarm for covenanting to operate.
