| Place of Origin: | China |
| Brand Name: | ANKUAI |
| Certification: | CE, ISO |
| Model Number: | AKT326 |
| Minimum Order Quantity: | 1 peice |
|---|---|
| Packaging Details: | 1260×220x1040mm |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Peices/Month |

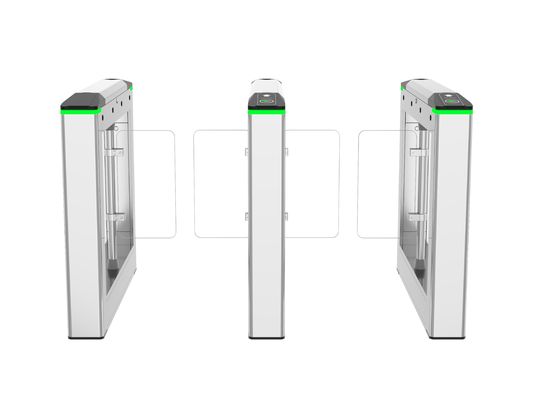

| Price: | Negotiate | Product Name: | Swing Barrier Gate |
|---|---|---|---|
| Size: | 1200x150x980mm | Passage Width: | 600mm（Customized） |
| Power Supply: | AC 220V, 50/60hz | Material: | SUS304 Hairline 400# |
| Working Temperature: | -25 To +75 ℃ | Pass Rate: | 30 People/min |
| Arm Turning: | Uni-directional Or Bi-direction | Lead Time: | 3-5 Working Days |
| High Light: | Automatic Swing Barrier Turnstile,600mm Swing Barrier Turnstile,Pedestrian turnstile access control system |
||
| Model Number | AKT326 |
| Power Supply | AC220V ± 10% |
| Power Consumption | 40W/24V |
| Temperature | -25 to 75 degrees |
| MOQ | 1 PC |
| Passage Width | 600mm |
| Passing Speed | 30 People/Minute |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction/Uni-direction |
| Humidity | ＜95% |
| Material | 304 SUS Hairline |
| Dimension | 1200x150x980mm |
1. High secure level and widely applications. Our flap barrier gate will limit shoplifting and
Theft chances in most self-service places. and offer a higher security level for owners. Due to
This feature, swing barrier gates are widely used in Supermarket, shopping malls, Library,
Hospital ,Goverment authority,etc.
2. Anti-bump, Anti clip,anti-tailgating,anti-intrusion.During operation if the swing arm meets
Any resistance, it will stop immediately. After pre set time, the arm will return to close position.
This function effectively prevents pedestrian especially children from bumping, clipping,
striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.
3. Easy installation and free maintenance. This swing barrier gate can be easily installed and
No extra supporting apparatus will be needed. No special maintenances will be needed after
It starts working.
4. More intelligent. self-examing and pre-set time operations allow our swing barrier gates more
Intelligent and convenient in working. If there is no passing through in pre-set time, it will return to
Close status. When in fire or power failure, the door will open automatically.
5. Multiple access control .Our swing barrier gate is compatible with international standard
RS485 Intereface. This enablles its widely accomodating to all prevailing softwares in industry
And supports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.
6. Bi directional passing through and high passing effeciency. Bi-directional passing
Through reduces the need for more gates. High passing speed and accomodation for wheel Chair, strollers,etc increase the passing effeciency.
