Ten years of craftsmanship, a hundred years of promise.
 |
| Place of Origin: | China |
| Brand Name: | ANKUAI |
| Certification: | CE, ISO |
| Model Number: | AKT303 |
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | 232-278 |
| Packaging Details: | 1245mmx280mmx1032mm |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Peices/Month |

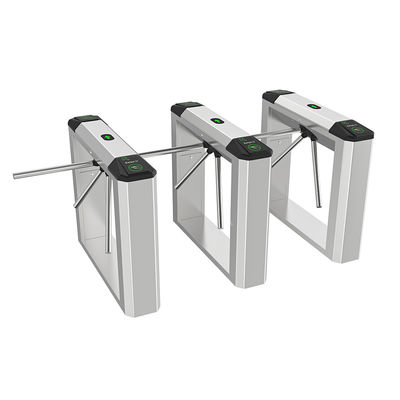

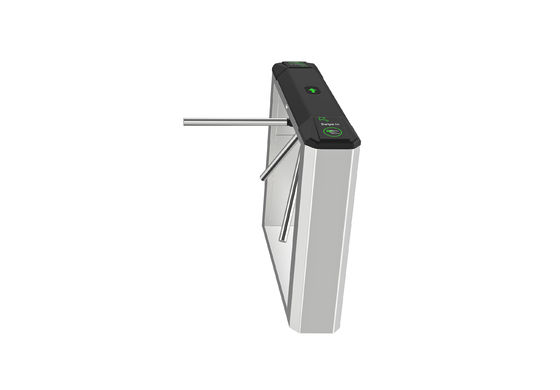

| Product Name: | Tripod Turnstile | Size: | 1208x244x1004mm |
|---|---|---|---|
| Passing Lane: | 550mm | Power Supply: | AC220V/110V |
| Material: | 304 Stainless Steel Or 316 Stainless Steel | Working Temperature: | -15 To +65 ℃ |
| Throughput Rate: | 30 People/min(IC Card) | Arm Turning: | Uni/Bi-direction |
| Warranty: | 12 Month | Color: | Silver(Customized) |
| High Light: | AC220V Tripod Turnstile Gate,110V Tripod Turnstile Gate,RFID Turnstile Gate |
||
| Model Number | AKT303 |
| Power Supply | AC220V ± 10V |
| Power Consumption | 100W/24V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| <95%, without concretion | 550mm |
| Passing Speed | 30 People/Minute |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction/Uni-direction |
| Humidity | ＜95% |
| Material | 1.0mm 304 SUS Hairline |
| Dimension | 1208x244x1004mm |
◆ ultra-quiet design: the machine adopts the third generation of quiet design, running smoothly without impact noise;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ automatic access function: after card reading, the brake lever will automatically operate at a certain Angle to unlock, and the brake will automatically drive people through;
◆ a variety of operating mode functions: by setting the switch can be set to the brake normally open, normally closed two operating modes;
◆ pass memory function: after the pedestrian swiped the card for several times, the gate will remember the number of passers and close the gate after all passers have passed.
◆ automatic power on lever function: the brake automatically rotates after power on to make the lever automatic power on without human operation;
◆ power off the lever function: after the power off the brake, the lever automatically falls down to facilitate personnel evacuation and meet the requirements of fire control;
◆ anti-collision function: when the pedestrian does not swipe the card to push the brake lever, the brake lock;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the brake shall return to the original position and cancel the pass, the time is 1-60 seconds.
