Ten years of craftsmanship, a hundred years of promise.
 |
| Place of Origin: | China |
| Brand Name: | ANKUAI |
| Certification: | CE, ISO |
| Model Number: | AKT303 |
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | 232-278 |
| Packaging Details: | 1245mmx280mmx1032mm |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Peices/Month |

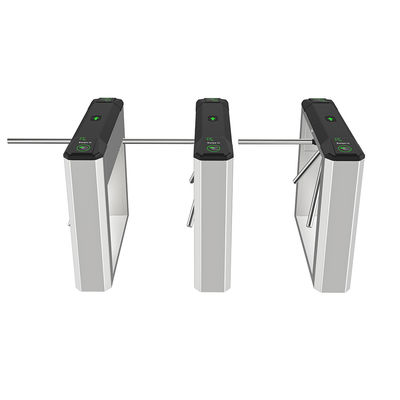

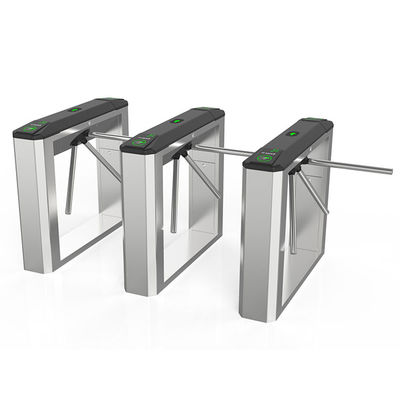

| Product Name: | Tripod Turnstile | Body Size: | 1208x244x1004mm |
|---|---|---|---|
| Passing Lane: | 550mm | Work Voltage: | AC220V±10% 50HZ±10% |
| Material: | 304/316 Stainless Steel | Communication: | RS 485, Distance ≤1200m |
| Passing Speed: | 30-40 People/min | Direction: | Left Or Right, Or Bi-directional |
| Emergency: | Auto Drop When Power Off | MCBF: | 3 Millions Times |
| High Light: | RFID Tripod Turnstile Gate,Gym Tripod Turnstile Gate,550mm Automatic Barrier Gate System |
||
| Model Number | AKT303 |
| Power Supply | AC220V ± 10V |
| Power Consumption | 100W/24V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| <95%, without concretion | 550mm |
| Passing Speed | 30 People/Minute |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction/Uni-direction |
| Humidity | ＜95% |
| Material | 1.0mm 304 SUS Hairline |
| Dimension | 1208x244x1004mm |
1.Malfunction self-check and alarm reminder, ease of maintenance and use.
2.Running method can be set through small buttons on the control panel.
3.The arm drop automatically when emergency happen.
4.The arm go up automatically when power on.
5.Self-reset. pass right will be canceled if people do not go through within a set time, the default time is 10s ( 0-60s adjustable). 6.Compatible for access control system, consumption system, E-ticket system, biometric system, ESD system and so on. 7.Unique positioning, self reset, one arm always in the horizontal level.
8.LED lamp indicator.
9.when open signal is given, arm rotate to a certain degree.
10.The arm rotate automatically when people passing.
11.One direction or bi-direction flow control.
12.Work directly with PC for remote control and management.
13.Bi-direction Anti reverse rotation.
