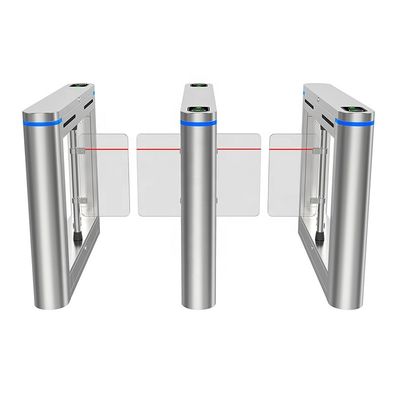

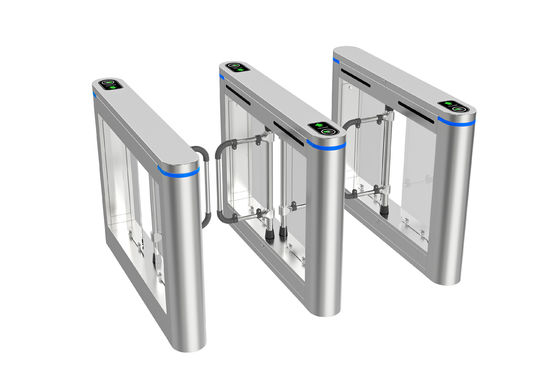

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate

  • RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate
  • RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate
RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate
Product Details:
Place of Origin: China
Brand Name: ANKUAI
Certification: CE, ISO
Model Number: AKT321
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: USD 445-518 /Peice
Packaging Details: 1400x180x1020mm
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Peices/Month
Contact Now
Detailed Product Description
Product Name: Swing Barrier Gate Housing Size: 1400x180x1020mm
Passage Width: 600-1000mm Power Supply: AC220V/110V±10%, 50Hz
Material: 304 Stainless Steel Or 316 Stainless Steel MCBF: 5 Millions Cycles
Opreation: Full Automatic Passing Speed: 35 Person/min
Arm Turning: Bi-direction MOQ: 1 Pc
High Light:

RFID Access Control Turnstile

,

Stainless Steel Access Control Turnstile

,

Speed Automatic Security Barrier



Model Number AKT321
Power Supply AC220V ± 10%
Power Consumption 60W
Motor DC24V Brushless Motor
MCBF 5,000,000 Cycles
Passage Width 600-1000mm
Operating Speed 1S
Communication Interface RS485, Dry Contact, TTL232
Direction Bi/Uni-direction
Humidity <95%
Material SUS304 Hairline
Dimension 1400x180x1020mm



Features:



(1) Automatic return function: After the passage process is completed, the brake wings automatically return to the initial blocking position.

(2) Power-off and opening function: When the power is off, the system will automatically open the brake wings to open, which is convenient for evacuation of the crowd and meets fire protection requirements.

(3) Anti-illegal intrusion function: When the card is invalid, there is no card swiping, or the passage is forbidden, the forcible entry into the channel will be regarded as illegal intrusion, and the system will automatically alarm and close the flap.

(4) Anti-reverse intrusion function: Before the end of the passage process in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as reverse intrusion, the system will automatically alarm and close the wing.

(5) Anti-trailing function: The photoelectric switch detects the pedestrian traffic situation, and detects the following phenomenon (the people behind are close to the person in front, intending to pass without swiping the card), the system will automatically alarm and close the brake wings

(6) Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, which can be linked with other alarm monitoring equipment and can be heard.

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 0

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 1RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 2

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 3RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 4RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 5

RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 6

  1. RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 7RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 8RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 9RFID Stainless Steel Access Control Turnstile Speed Automatic Security Barrier System Gate 10
