|Place of Origin:||China|
|Minimum Order Quantity:||1 peice|
|Price:||USD 445-518 /Peice|
|Delivery Time:||3-5 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10000 Peices/Month|
|Product Name:||Swing Barrier Gate||Housing Size:||1400x180x1020mm|
|Passage Width:||600-1000mm||Drive Voltage:||DC24V|
|Material:||304 Stainless Steel Or 316 Stainless Steel||Thickness:||1.2mm|
|MCBF:||5 Millions Cycles||Passing Speed:||35 P/M|
|Arm Turning:||Bi-direction||MOQ:||1 Pc|

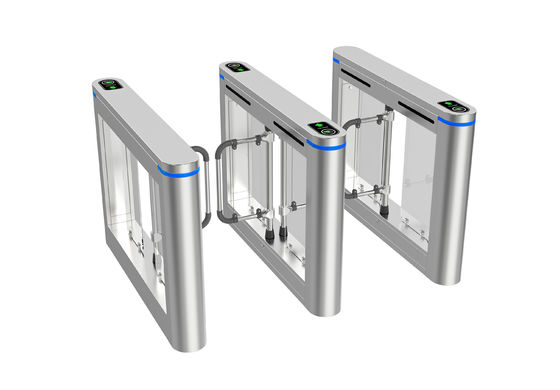

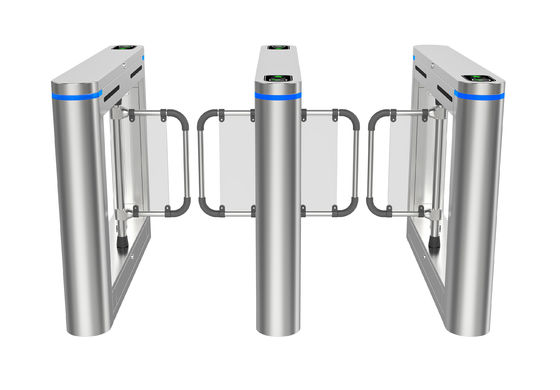

Customized Glass Swing Turnstile,
DC24V glass swing turnstile,
1.2mm Biometric Access Control
|Power Supply||AC220V ± 10%|
|Motor||DC24V Brushless Motor|
|Communication Interface||RS485, Dry Contact, TTL232|
1. The anti-collision function of the swing gate
When the swing gate lever is in the locked state, it cannot be pushed by external force and can withstand the impact force within a safe range. Equipped with an emergency escape control device, the system automatically unlocks the brake lever and becomes a free passage mode, which is convenient for evacuation of people (remote control is possible).
2. The pass indication function of the swing gate
LEDs are installed on the top of the swing gate chassis to indicate the traffic status and direction, and when there are more than two legal traffic signals given at the same time, the system will memorize all traffic requests and complete each traffic action in turn.
3. The passage restriction function of the swing gate
The swing gate can limit the number of passers through the software to meet the personnel management under special circumstances. Multiple turnstiles can be set and debugged in batches through software to improve efficiency and reduce maintenance costs.
4. Compatibility of swing gates
The swing gate is equipped with a dry contact signal output interface and a wide threshold level signal input interface, compatible with all kinds of access controllers.ents of fire management;
