Swing Barrier Turnstile
>

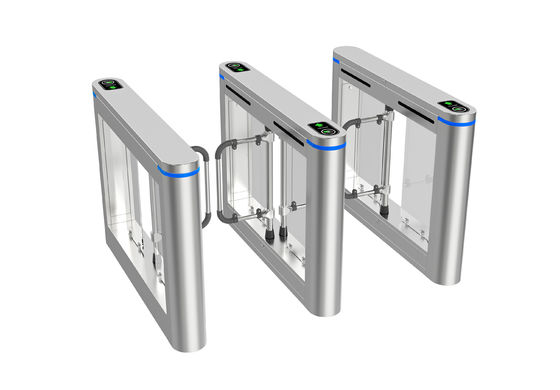

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition

Brand Name: ANKUAI
Model Number: AKT321
MOQ: 1 peice
Price: USD 445-518 /Peice
Packaging Details: 1400x180x1020mm
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Product Name:
Swing Barrier Gate
Housing Size:
1400x180x1020mm
Passage Width:
600-1000mm
Drive:
DC24V Brushless
Infared Sensor:
4 Pairs
Material:
304 Stainless Steel Or 316 Stainless Steel
Thickness:
1.2mm(1.5mm Optional)
Arm Materiall:
Acrylic
Open Speed:
0.8s
Arm Turning:
Bi-direction
Supply Ability:
10000 Peices/Month
High Light:

DC24V Turnstile Barrier Gate

,

Qr Code Turnstile Barrier Gate

,

Bi-direction High Security Turnstile

Product Description



Model Number AKT321
Power Supply AC220V ± 10%
Power Consumption 60W
Motor DC24V Brushless Motor
MCBF 5,000,000 Cycles
Passage Width 600-1000mm
Operating Speed 1S
Communication Interface RS485, Dry Contact, TTL232
Direction Bi/Uni-direction
Humidity <95%
Material SUS304 Hairline
Dimension 1400x180x1020mm



Features:

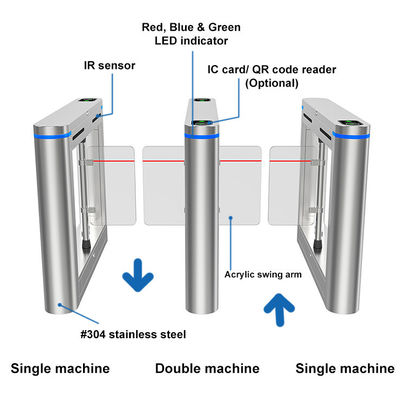

1. By using 4 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately detect the user’s passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and anti-clamping etc.
2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit
3. The widen lane is optional for carrying luggage and wheelchair access.
4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
5. It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment.
6. After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close automatically
7. Arm automatically open when the power off to make sure safety In case of emergency
8. Optional for external counter to record the people numbers for each lane

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 0

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 1High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 2

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 3High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 4High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 5

High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 6

  1. High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 7High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 8High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 9High Security Entrance Swing Turnstile Barrier Gate With Qr Code Scanner Face Recognition 10
