|Place of Origin:||China|
|Minimum Order Quantity:||1 peice|
|Price:||USD 445-518 /Peice|
|Delivery Time:||3-5 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10000 Peices/Month|
|Product Name:||Swing Barrier Gate||Housing Size:||1400x180x1020mm|
|Passage Width:||600-1000mm||Drive:||DC24V Brushless|
|Infared Sensor:||4 Pairs||Housing Material:||304/316 Stainless Steel|
|Thickness:||1.2mm(1.5mm Optional)||Arm Materiall:||Acrylic|
|Working Environment:||Indoor/Outdoor||Arm Turning:||Bi-direction|

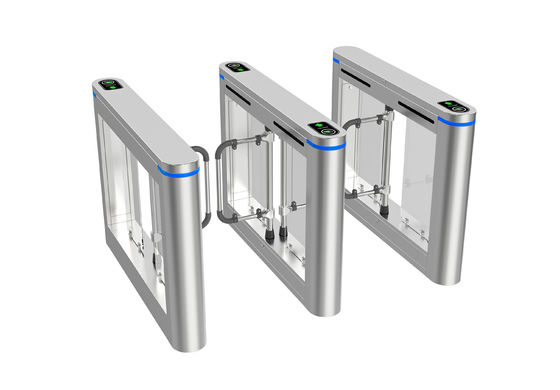

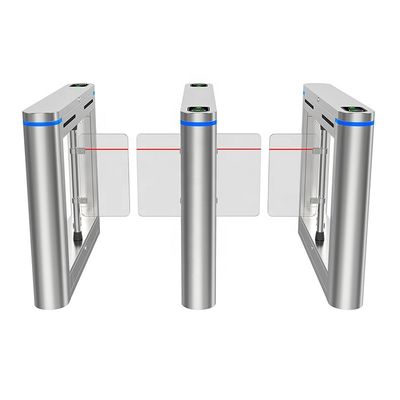

DC24V Pedestrian Access Control,
Automatic Pedestrian Access Control,
High Security Swing Gate Turnstile
|Power Supply||AC220V ± 10%|
|Motor||DC24V Brushless Motor|
|Communication Interface||RS485, Dry Contact, TTL232|
1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5.The bicycle delay function: prevent the gate from hitting the bicycle;
6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8.Various control functions: external button, remote control, bar code, IC or ID, etc.
9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
