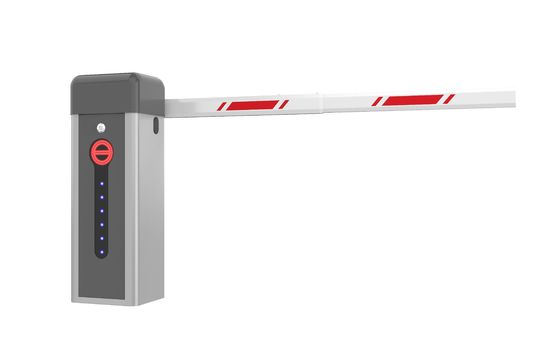

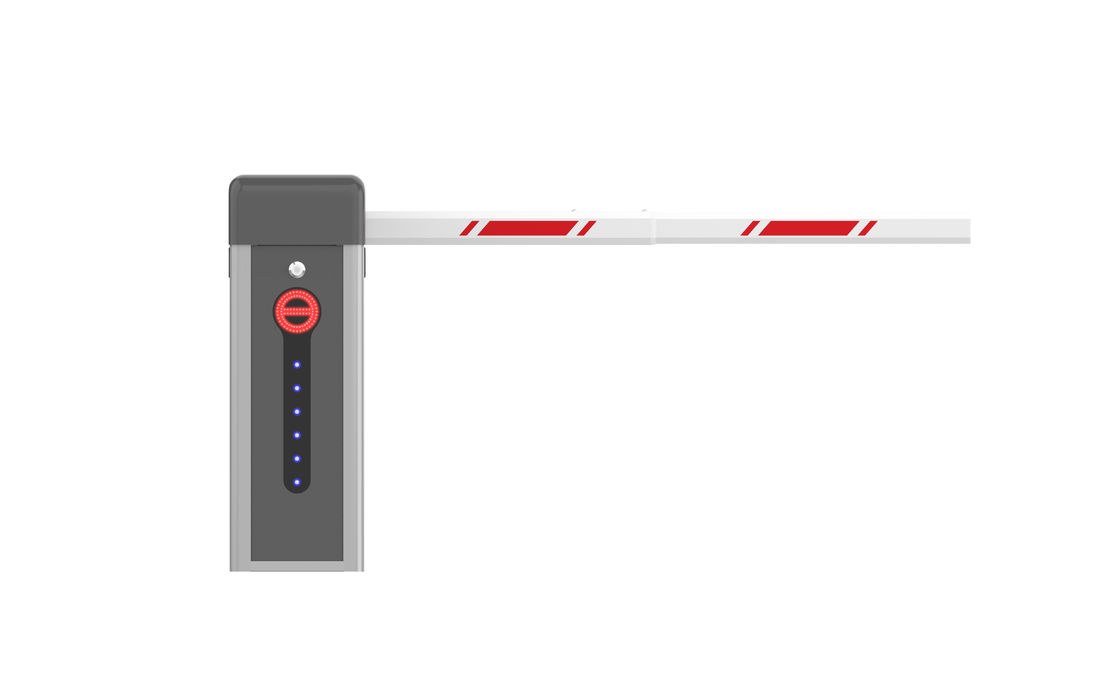

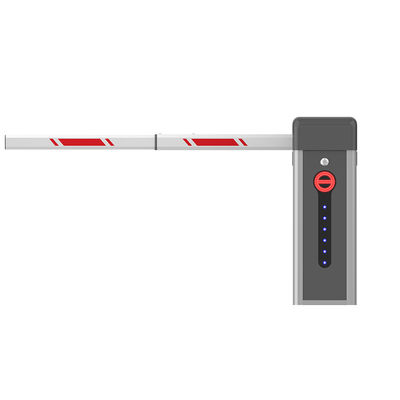

Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management

Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management

  • Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management
  • Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management
  • Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management
Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management
Product Details:
Place of Origin: Guangdong, China
Brand Name: AnKuai
Certification: CE, ISO
Model Number: AKD102C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Regualr package with high quality carton
Delivery Time: 5-30 days, depends on the order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Net Weight: 40kgs Specification: CE, ISO
Speed: 1.8s, 3s, 6s Service Life: 5 Million Times
IP Rate: IP54 Wattary: 1 Year
Voltage: 220V/110V +-10% Remote Distance: Within 30m
Arm Type: Straight/Telescopic/Fence/Folding/LED Model: AKD102C

Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management



Features:
1. Low noise, more convenient and stable, boom opening/closing time 1.8s-6s.
2. The transmission mechanism uses a sine link mechanism and removes the ordinary electric buffer stops for the use of the slow device so that the whole structure is more compact, reasonable greatly reducing the machinery fault.
3. The main controller can supply many types of running modes for users to meet different requirements.
4. The motor is low speed and no maintenance and can be put in any position without damage.
5. A special motor loop structure can avoid instant current and voltage fluctuation when the power is cut down suddenly.
6. Impact-proof structure: when an accident happens, the vehicle hits the barrier beam, impact-proof structure makes the baluster rotate for 90°C, which can avoid or reduce the damage from vehicles and barriers.
7. The case was made of steel plate after special treatment, the surface was sprayed with advanced salmon pink and saffron automobile coating, which is rust-proof and can avoid color fading caused by ultraviolet irradiation.
8. Barrier beam: Aluminum alloy octagon bar, with reinforcement, reliable quality.
9. Installed pressure wave switch, flexible reaction, automatic barrier can prevent smashing car safely and effectively, with assorting vehicle detector to achieve double prevention.
10. Unique cold light shining prompt beam is the initiative patent in domestic. The light box has adopted the leading cold light technology, fiber material, long lifetime, supper low power.

Moedl AKD102C
Opening/Closing speed 1.8s/3s/6s
Boom Type Straight, telescopic, folding, fence, LED
MTBF 5 million times
Brand Support customize
Color OEM/ODM
Motor DC 24V brushless motor
Motor consumption 100W

Tell the following requirements, When choosing boom barrier gates.

1. Arm type
a) Straight arm- suitable for broad areas without height limitation
b) Folding arm- suitable for places with height limitations such as underground parking lot
c) Fence arm- suitable for the place with the ban of animals.

2. Straight arm length
Available between 1-6m

3. Movement speeds
Available between 1.8-6s

4. Direction of arm opening
a) left
b) right

5. Opening type
a) Manual open
b) Remote control open
c) Semi-automatic open

6. Optional function
a) Anti-collision
b) Traffic light prompt
c) Voice prompBoom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management 0ts

Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management 1
Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management 2
Boom Barrier Gate System High Speed Drop Arm Barrier Gate with Fence Arm for Car Parking Management 3

Tag:

Security Boom Barrier Gate,

Traffic Boom Barrier Gate,

Automatic Boom Barrier Gate
