DC24V Brushless Motor Boom Barrier Gate with Thermal Protection & Intelligent Position Sensing
| Brand Name: | Ankuai Intelligent Tech Inc. |
| Model Number: | AKD102C |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Regular package way with carton |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
China
Certification:
ISO9001, CE Certificate
Cabinet Dimension:
344*283*1019
Motor:
24V BLDC Motor
Motor Power:
100W
Speed Rate:
1.8~3s/3s~6s
Boom Length:
Max 6m
Cabinet Color:
Black&Grey
Working Temperature:
-30°C~80°C
Remote Control:
Max 30m
Direction:
Bi Direction

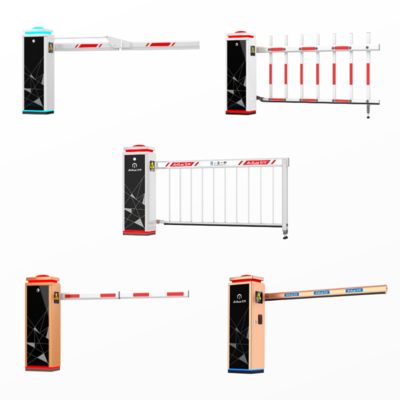

Boom Type:
Telescopic, Boom, Floding, Etc.
Warranty:
1-year Gurantee Except For Artificial Damage
Delivery Time:
3 Work Days For Sample
Delivery Time:
3 Work days for sample
Supply Ability:
30000 sets per Month
Highlight:
24V DC brushless boom barrier gate
,parking entrance boom barrier motor
,brushless motor parking gate with warranty
Product Description
Ankuai AKS580 BLDC 220V Barrier Gate Intelligent LED Arm Boom Anti-Crash Parking Lot Traffic Barrier
Product Specifications
| Attribute | Value |
|---|---|
| Material | Stainless Steel |
| Place of Origin | Guangdong, China |
| Brand Name | AnKuai |
| Reflective Grade | Engineer Grade |
| Product name | Barrier Gate |
| Product model | AKS580 |
| Size | 344*283*1020mm |
| Opening and closing times | 1.5~3s/3~6s (depending on boom length) |
| Lever Length | 3~6m (Maximum, Adjustable) |
| Level to Ground | 890MM |
| Voltage | DC220V |
Technical Specifications
|
|---|

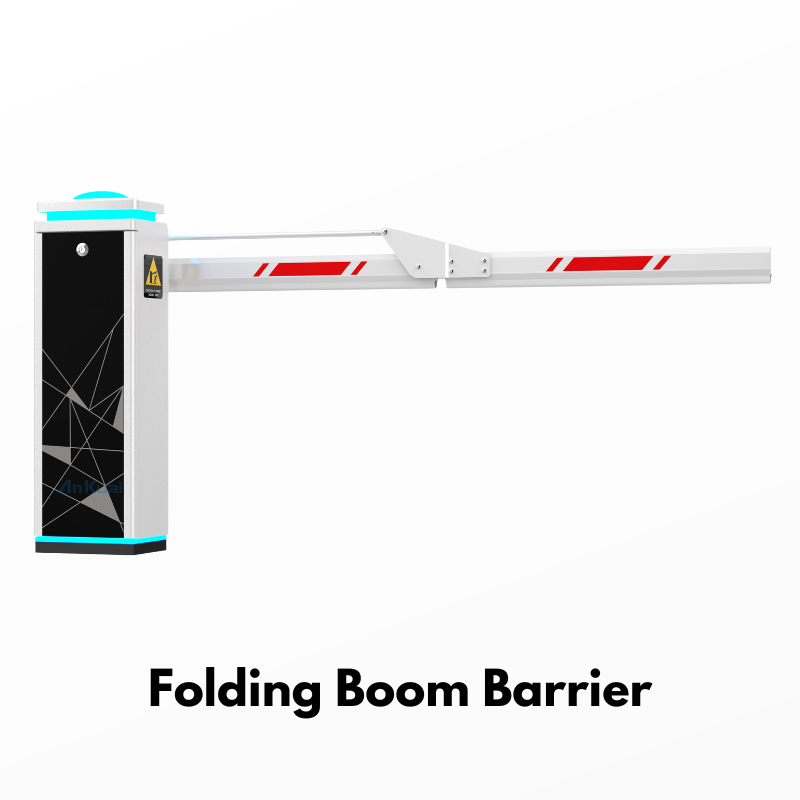

Additional Specifications: Place of origin: China | Product model: AnKuai Barrier Gate AKD117 | Boom Type: Straight Boom, Folding Boom, Fence Boom | Boom Length: Maximum 6 meters | Speed: 1.8~3s/3~6s | Voltage: AC220V±15% | Frequency: 50HZ | Power consumption: 100W | Working temperature: -30°C to 80°C | Housing dimension: 344(L) * 283(W) * 1020(H) | Weight: 45kgs | Drive: DC24V | Max RC Distance: ≤30m
Mechanical Features
- Robust, waterproof chassis designed for outdoor use
- Integrated movement with full mold production ensures stability and precision
- A precision four-bar linkage ensures smooth operation, minimizing vibration and prolonging service life.
- A 100W gear reducer delivers quiet, compact transmission with shock-free stall protection.
- A manual locking mechanism enables easy manual operation when power is cut off.
Electrical Features
- The system features high integration, seamless device compatibility, and anti-overrun protection to enable 24/7 operation.
- Angle sensors deliver precise position detection and steady movement control.
- Status indicators simplify both operation and maintenance processes.
- It is compatible with up to 25 remote control code sets, combined with an intelligent learning feature.
- An imported core transformer ensures steady performance even in harsh environments.
- By integrating optical, electrical, and mechanical controls, the system delivers user-friendly and safe operation.
Security Features

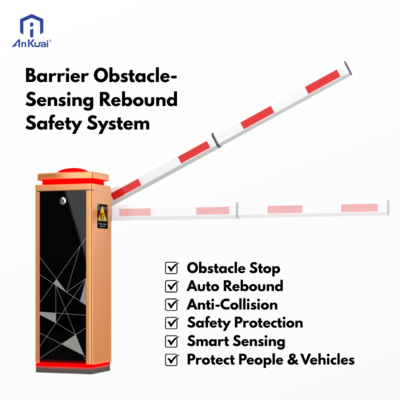

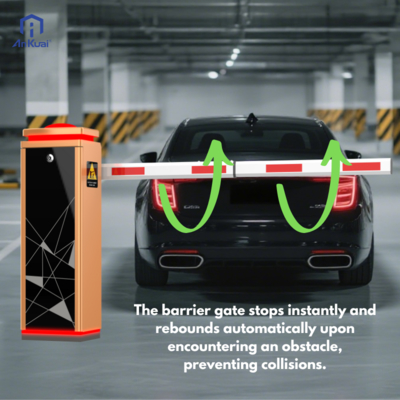

- Obstacle rebound: During descent, if encountering external force, automatically lifts to reduce damage
- Ground Loop Anti-Crush Protection: Automatically retracts when receiving ground loop signal during descent
- Anti-crushing rubber strips: Reduces losses caused by accidents

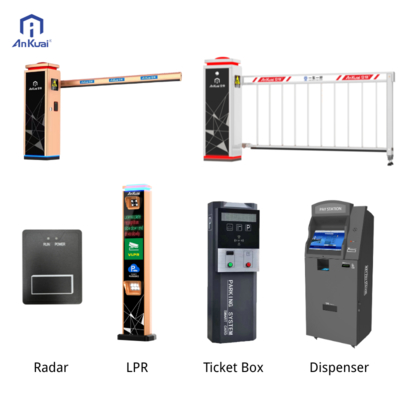

LPR System and Parking Software
- Role, permission, and password management Settings
- Vehicle registration, extension, recharge, and parking area setting
- Support batch import of license plate numbers and card numbers
- Settings for the white list and black list
- Setting of charging standards and charging methods
- Vehicle flow management and reporting
- Query and summary report of parking fees
- Access monitoring and toll collection system management
Our license plate recognition cameras can identify license plates from over 180+ countries and regions worldwide. We provide supporting parking software systems developed in-house, and our products have obtained both ISO9001:2015 quality management system certification and CE certification. With a R&D team of over 50 members, a professional software R&D team, and after-sales service specialists, we offer software integration and customized services, providing more professional suggestions and technical support for your projects.
