Boom Barrier Gate

Hotsale Anti-Crash Function OEM Manufacturer Smart Parking Barrier Security Barrier Gate For Toll Gate

All Category

Vehicle Detection Radar Sensor

Hydraulic Retractable Bollards

Metal Detector Gate

Mrs. Betty

betty@ankuai.net

+8613827208652

Contact Now

Hotsale Anti-Crash Function OEM Manufacturer Smart Parking Barrier Security Barrier Gate For Toll Gate

Brand Name:	Ankuai
Model Number:	AKS580
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Regular package way with carton
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE Certificate

Cabinet Dimension:

344*283*1019mm

Motor:

DC24V Brushless Motor

Motor Power:

Speed Rate:

1.8/3s/6s

Boom Length:

Max 6m

Key Words:

Barrier Gate

Working Temperature:

-30°C~80°C

Remote Control:

Maximum 30m

Boom Type:

Telescopic, Boom, Floding, Etc.

Warranty:

12 Months

Delivery Time:

3-5 Days

Supply Ability:

30000 sets per Month

Highlight:

smart parking barrier gate

anti-crash boom barrier

OEM security toll gate

Product Description

Hotsale Anti-Crash Function OEM Manufacturer Smart Parking Barrier Security Barrier Gate For Toll Gate

Product Attributes

Attribute	Value
Cabinet Dimension	3442831019mm
Motor	DC24V Brushless motor
Motor Power	100W
Speed Rate	1.8/3s/6s
Boom Length	Max 6m
Working Temperature	-30°C~80°C
Remote Control	Maximum 30m
Boom Type	Telescopic, Boom, Floding, etc.
Warranty	12 months
Delivery time	3-5 days

Product Specifications

Attribute	Value
Material	Cold-rolled Steel
Place of Origin	Guangdong, China
Brand	AnKuai
Protection Rate	IP54
Product name	Barrier Gate
Product model	AKS580
Size	3442831020mm
Opening and closing times	1.8s/3s/6s
Lever Length	3~6m (Maximum, Adjustable)
Level to Ground	890MM
Voltage	220V/110V

Technical Specifications

Speed Time	1.5s	3s	5s	1.8s	3.5s	5.5s	6s
Boom Type	Straight Boom	Straight Boom	Straight Boom	Folding Boom	Folding Boom	Folding Boom	Fence Boom
Boom Length	3m	4.5m	6m	3m	4.5m	6m	5m

Mechanical Features

A sturdy, waterproof chassis built for outdoor environments.
An integrated movement system--with all components produced via full molding--ensures stability and precision.
A precision four-bar linkage delivers smooth operation, minimizing vibration and prolonging service life.
A 100W gear reducer provides quiet, compact transmission alongside shock-free stall protection.
A manual locking mechanism enables easy manual operation when power is cut off.

Smart Parking Barrier Features

Loop detector connector is available.
Auto-delay when closing(adjustable).
Automatic arm open function when powered off.
Infraed sensor signal anti-smashing interface.
The operation speed can be adjusted from 1.8s to 6s.
High-sensitivity arm auto-reverse function.
The arm automatically locks when powered off and opens the barrier gate by hand.
Arm swing-out function: when the vehicle hits the barrier gate, the arm can swing out to avoid further damage to the vehicle and barrier machine core.

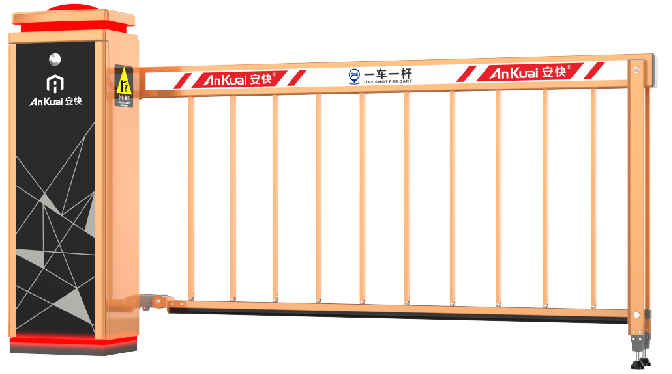

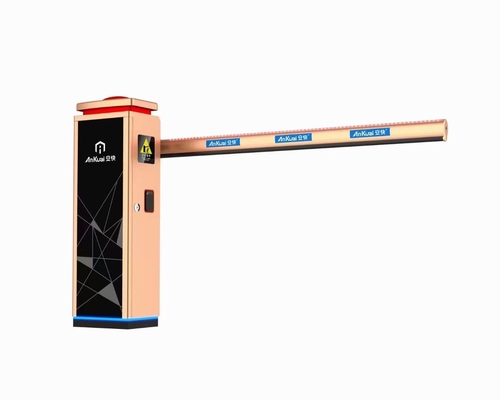

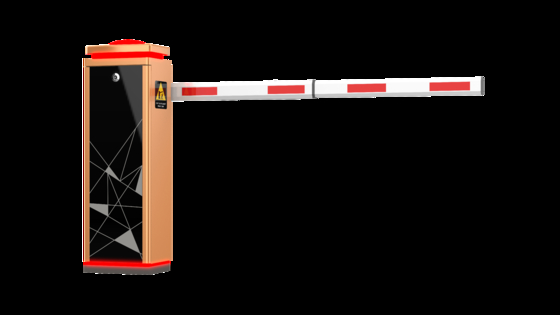

Front view of barrier gate

Installation example

Close-up detail

In operation

Side view

Technical diagram

LPR System and Parking Software

Role, permission, and password management Settings
Vehicle registration, extension, recharge, and parking area setting
Support batch import of license plate numbers and card numbers
Settings for the white list and black list
Setting of charging standards and charging methods
Vehicle flow management and reporting
Query and summary report of parking fees
Access monitoring and toll collection system management

Our license plate recognition cameras can identify license plates from over 180+ countries and regions worldwide. We provide supporting parking software systems developed in-house, and our products have obtained both ISO9001:2015 quality management system certification and CE certification. With a R&D team of over 50 members, a professional software R&D team, and after-sales service specialists, we offer software integration and customized services, providing more professional suggestions and technical support for your projects.

LPR system interface

Parking software dashboard

LPR camera installation
