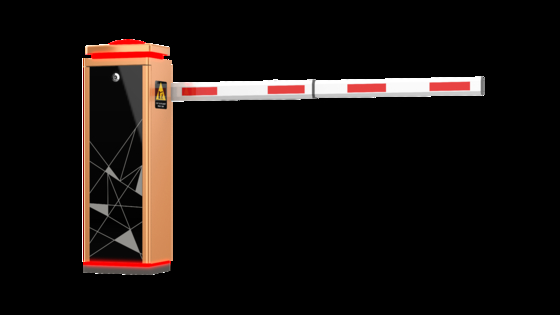

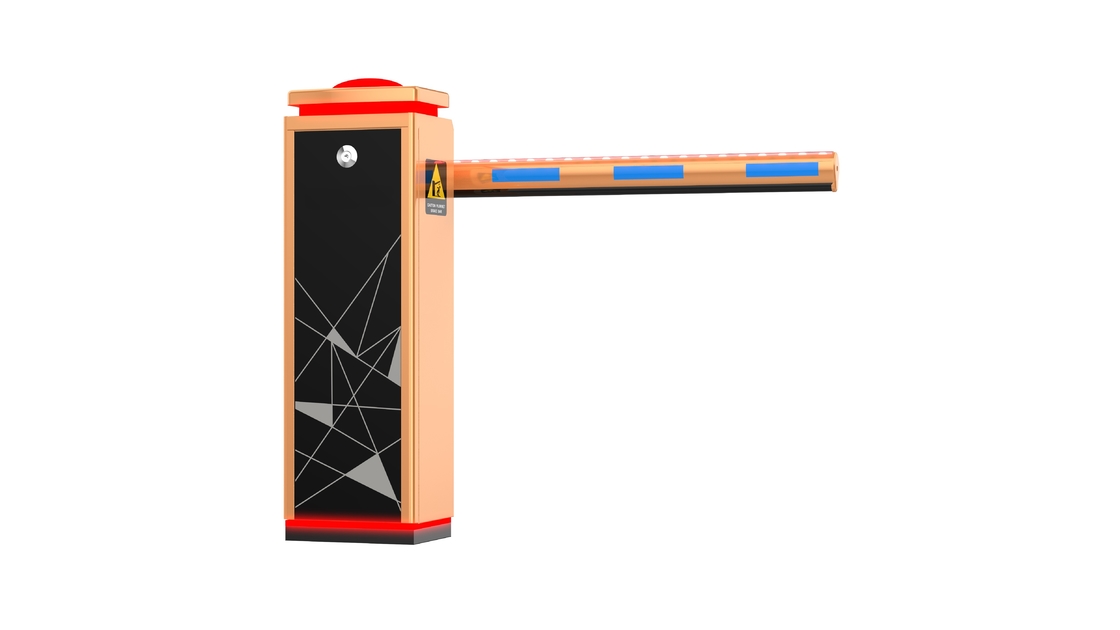

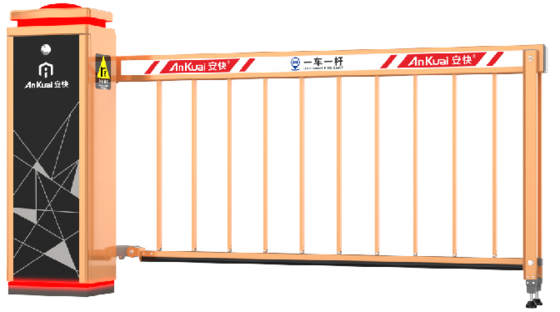

High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator

Brand Name:	Ankuai
Model Number:	AKS580
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Regular package way with carton
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE Certificate

Cabinet Dimension:

344*283*1019mm

Drive:

100W 24VDC Motor

Motor Power:

Speed Rate:

1.8/3s/6s

Boom Length:

Max 6m

Key Words:

Barrier Gate

Working Temperature:

-30°C~80°C

Remote Control:

Maximum 30m

Boom Type:

Telescopic, Boom, Floding, Etc.

Warranty:

12 Months

Control:

Remote Key, Loop Detector, IR Sensor, RFID, Manual

Supply Ability:

30000 sets per Month

Highlight:

automatic boom barrier gate

smart parking barrier operator

high-end traffic boom barrier

Product Description

High-End Automatic Traffic Boom Barrier Gate Smart Parking Barrier Operator

Product Specifications

Attribute	Value
Cabinet Dimension	3442831019mm
Drive	100W 24VDC motor
Motor Power	100W
Speed Rate	1.8/3s/6s
Boom Length	Max 6m
Working Temperature	-30°C~80°C
Remote Control	Maximum 30m
Boom Type	Telescopic, Boom, Floding, etc.
Warranty	12 months
Control	Remote Key, Loop Detector, IR Sensor, RFID, Manual

Technical Specifications

Material: Power-coated steel (cabinet) Aluminum alloy (boom)

Place of Origin: Guangdong, China

Protection Rate: IP54

Input interface: Switch quantity or high-level signal

Size: 344*283*1020mm

Opening and closing times: 1.8s/3s/6s

Lever Length: 3~6m (Maximum, Adjustable)

Raletive Humidity: <90%

Voltage: 220V/110V

Mechanical Features

A sturdy, waterproof chassis built for outdoor environments.
An integrated movement system--with all components produced via full molding--ensures stability and precision.
A precision four-bar linkage delivers smooth operation, minimizing vibration and prolonging service life.
A 100W gear reducer provides quiet, compact transmission alongside shock-free stall protection.
A manual locking mechanism enables easy manual operation when power is cut off.

Smart Parking Barrier Features

Loop detector connector is available.
Auto-delay when closing(adjustable).
Automatic arm open function when powered off.
Infraed sensor signal anti-smashing interface.
The operation speed can be adjusted from 1.8s to 6s.
High-sensitivity arm auto-reverse function.
The arm automatically locks when powered off and opens the barrier gate by hand.
Arm swing-out function: when the vehicle hits the barrier gate, the arm can swing out to avoid further damage to the vehicle and barrier machine core.

Advanced Features

Adaptive Speed Control: Adjust operation speed from 1.5s to 6s, with customizable slow-up/slow-down functions for precise control.
Smart Safety Systems: Obstacle rebound and ground sensor anti-smash technology prevent accidental collisions.
Flexible Installation: Quick left/right arm direction switching and automatic balance adjustment for hassle-free setup.
Powerful Connectivity: RS485 communication, LED/traffic light outputs, and fire linkage compatibility for integrated systems.

Safety First: Multi-Layer Protection

Obstacle Detection: Instant arm reversal when an obstruction is sensed during descent.
Ground Sensor Priority: Overrides closing commands when a vehicle is detected.
Physical Safety: Anti-smash rubber strips and high-density foam arm reduce impact risk.

Easy Installation & Maintenance

Concrete Base: 150mm larger than the unit, 200mm thick for stability.
Spring System: Pre-matched for balance; adjustable tension via simple handle rotation.
Troubleshooting: Clear error codes (e.g., EFF-01 for hall faults, EFF-02 for undervoltage) and self-diagnostic functions.

Ideal for Various Scenarios

Parking garages, toll stations, and industrial compounds
Facilities requiring high-security access control
Environments with extreme temperatures or high traffic flow
