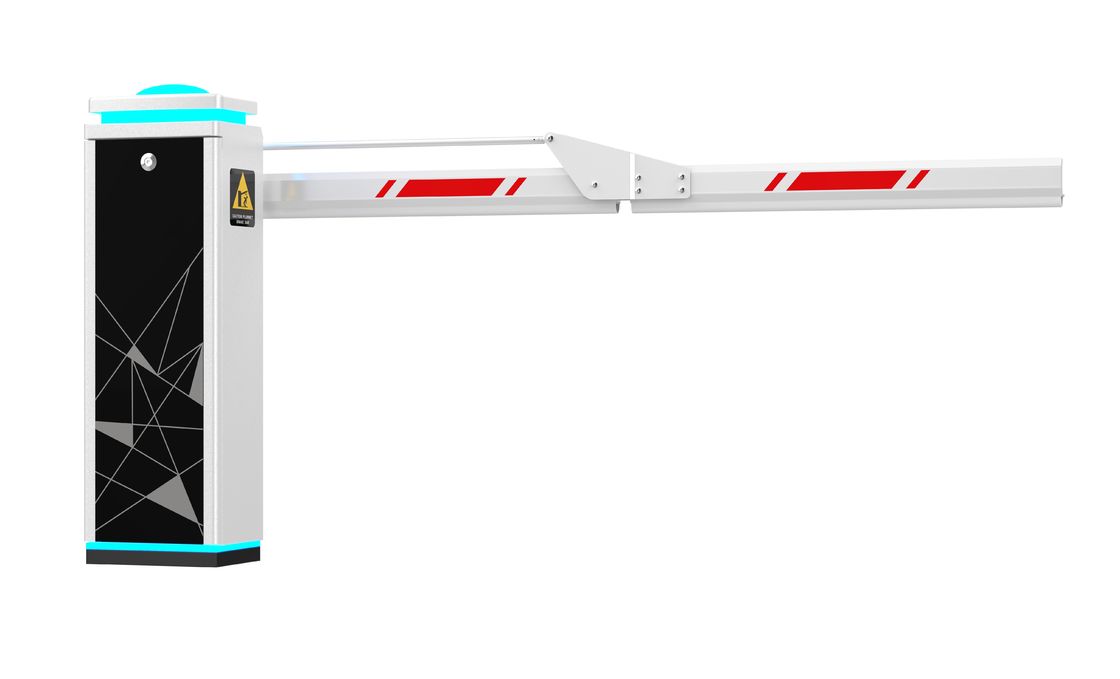

Automatic Remote Control Parking Barrier Gate,Electronic Car Park Security Barriers
| Brand Name: | Ankuai |
| Model Number: | AKS580 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Regular package way with carton |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union |
Detail Information
Place of Origin:
China
Certification:
ISO9001, CE Certificate
Cabinet Dimension:
344*283*1019mm
Motor:
DC24V Brushless Motor
Motor Power:
100W
Speed Rate:
1.8/3s/6s
Key Words:
Barrier Gate
Working Temperature:
-30°C~+80°C
Istance:
Within 30m
Boom Type:
Straight/ Folding/LED/ Fence/ Telescopic
Warranty:
12 Months
Trade Terms:
EXW, FOB, CIF
OEM/ODM:
Support
Boom Length:
6m (maximum, Adjustable)
Usage Direction:
Bi-Direction
Delivery Time:
3 Work days for sample
Supply Ability:
30000 sets per Month
Highlight:
straight boom barrier gate
,DC remote control parking barrier
,security toll barrier gate system
Product Description
Toll Barrier Gate Ordinary Straight Boom DC Remote Control System Security Parking Barrier Gate
Product Attributes
| Attribute | Value |
|---|---|
| Cabinet Dimension | 344*283*1019mm |
| Motor | DC24V Brushless motor |
| Motor Power | 100W |
| Speed Rate | 1.8/3s/6s |
| Working Temperature | -30°C~+80°C |
| Boom Type | Straight/Folding/LED/Fence/Telescopic |
| Warranty | 12 months |
| Boom Length | 6m (maximum, adjustable) |
| Usage Direction | Bi-Direction |
Product Specifications
Material: Cold-rolled Steel
Place of Origin: Guangdong, China
Brand: AnKuai
Protection Rate: IP54
Product Model: AKS580
Size: 344*283*1020mm
Color: Black, White, Red, Orange, Customized
Technical Specifications
| Speed Time | 1.5s | 3s | 5s | 1.8s | 3.5s | 5.5s | 6s |
|---|---|---|---|---|---|---|---|
| Boom Type | Straight Boom | Straight Boom | Straight Boom | Folding Boom | Folding Boom | Folding Boom | Fence Boom |
| Boom Length | 3m | 4.5m | 6m | 3m | 4.5m | 6m | 5m |
Mechanical Features
- A sturdy, waterproof chassis built for outdoor environments
- Integrated movement system with all components produced via full molding ensures stability and precision
- Precision four-bar linkage delivers smooth operation, minimizing vibration and prolonging service life
- 100W gear reducer provides quiet, compact transmission alongside shock-free stall protection
- Manual locking mechanism enables easy manual operation when power is cut off
Smart Parking Barrier Features
- Loop detector connector available
- Auto-delay when closing (adjustable)
- Automatic arm open function when powered off
- Infrared sensor signal anti-smashing interface
- Operation speed adjustable from 1.8s to 6s
- High-sensitivity arm auto-reverse function
- Arm automatically locks when powered off
- Arm swing-out function to avoid damage when hit by vehicle
Safety First: Multi-Layer Protection
- Obstacle Detection: Instant arm reversal when an obstruction is sensed during descent
- Ground Sensor Priority: Overrides closing commands when a vehicle is detected
- Physical Safety: Anti-smash rubber strips and high-density foam arm reduce impact risk
Easy Installation & Maintenance
- Concrete Base: 150mm larger than the unit, 200mm thick for stability
- Spring System: Pre-matched for balance; adjustable tension via simple handle rotation
- Troubleshooting: Clear error codes (e.g., EFF-01 for hall faults, EFF-02 for undervoltage) and self-diagnostic functions
Ideal for Various Scenarios
- Parking garages, toll stations, and industrial compounds
- Facilities requiring high-security access control
- Environments with extreme temperatures or high traffic flow
