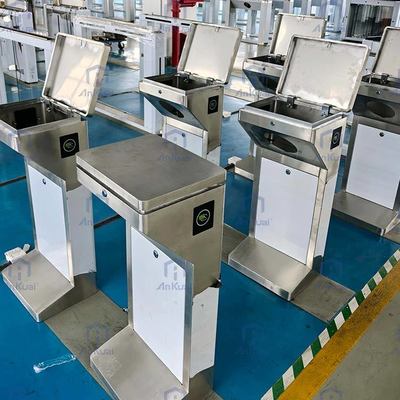

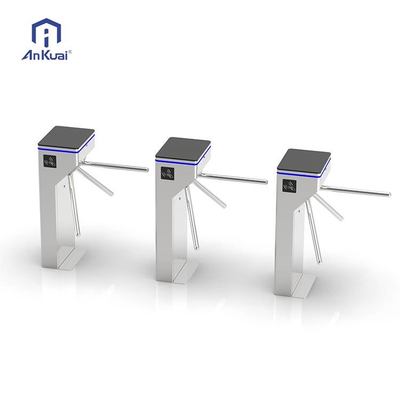

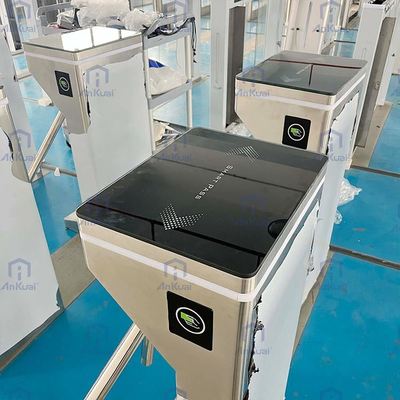

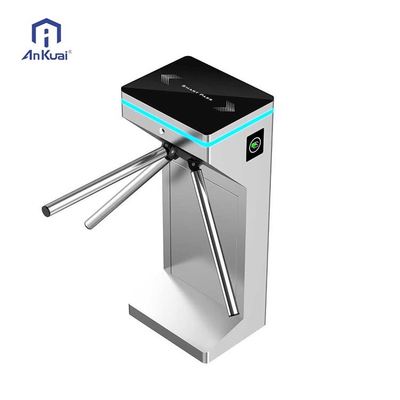

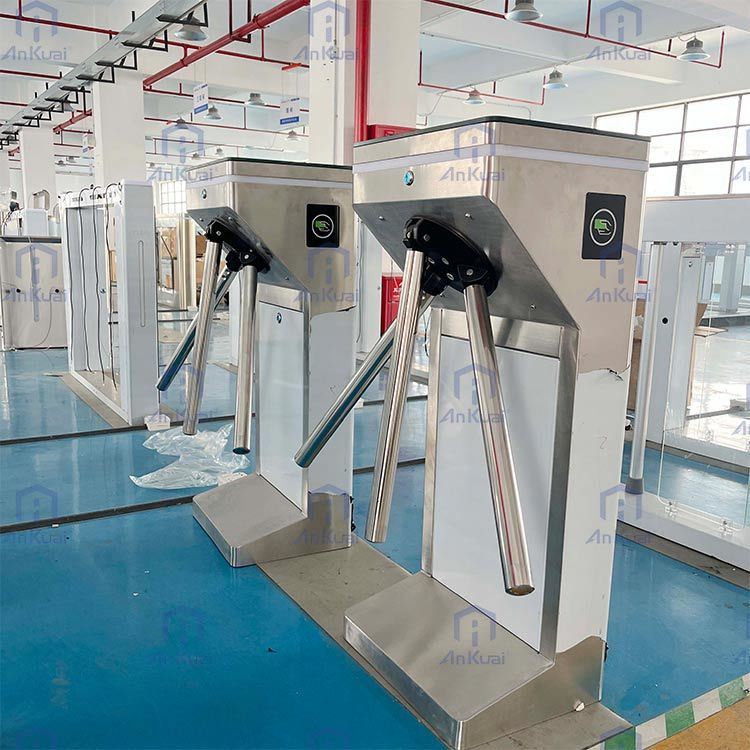

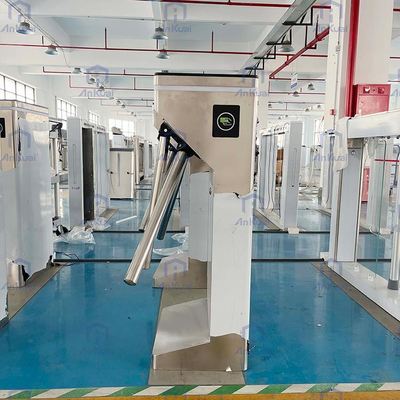

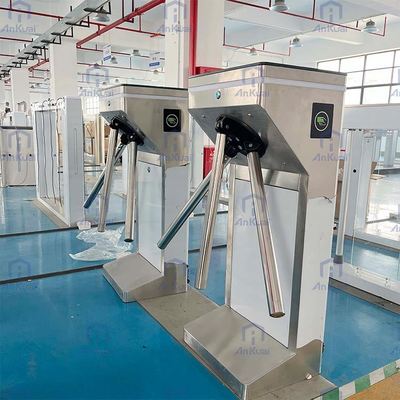

Semi-Automatic Control Tripod Turnstile Gate with Auto-Reset Function and -25° to 75° Working Temperature Range
| Brand Name: | AnKuai |
| Model Number: | AKT301A |
| MOQ: | 1 |
| Price: | Negotiabale, please contact us |
| Packaging Details: | Carton and wooden box |
| Payment Terms: | L/C,T/T，Western Union,PayPal |
Detail Information
Place of Origin:
Guangdong China
Certification:
ISO9001, CE Certificate
Power Supply:
AC110~220V / 50~60Hz
Motor Power Consumption:
Semi-Automatic Control
Passage Width:
≤550mm
Arm Length:
≤550mm
Open/Close Time:
1s
Passing Speed:
20～40 Persons/min
Infrared:
None
Dimension:
150*260*980mm
Housing Material:
SUS304 Stainless Steel
Working Temperature:
-25° To 75°
Arm Turning:
Bi-Direction
Working Environment:
Indoors Or Outdoors
Communication Interface:
RS485, TTL232
Delivery Time:
3-5 working days
Supply Ability:
8000 sets/month
Highlight:
QR code access control turnstile gate
,RFID facial recognition tripod turnstile
,OEM security door mechanism turnstile
Product Description
OEM Security Access QR Code RFID Facial Control Door Mechanism Tripod Turnstile Gate
Technical Parameters
| Parameter | Specification |
|---|---|
| Power supply | AC110~220V / 50~60Hz |
| Motor power consumption | Semi-Automatic Control |
| Passage width | ≤550mm |
| Arm Length | ≤500mm |
| Open/Close time | 1s |
| Passing speed | 20～40 Persons/min |
| Infrared | None |
| Dimension | 150260980mm |
| Housing material | SUS304 Stainless steel |
| Working temperature | -25° to 75° |
| Arm Turning | Bi-Direction |
| Working environment | Indoors or Outdoors |
| Communication interface | RS485, TTL232 |
Main Features
- Built-in control button for operational status management
- Humanized passage status indication function
- Configurable as bi-directional or uni-directional card swipe with free passage mode
- Auto-reset function with adjustable timing (default 5 seconds)
- Anti-collision function with automatic swing arm locking
- Power failure mode maintains open passage state
- Multiple passage indication lights (green/red)
- Compatible with external facial recognition devices
Support and Services
Our high-tech security turnstile comes with comprehensive technical support to ensure optimal performance and longevity.
- On-site installation and configuration
- Remote technical support
- Regular maintenance services
- Product training and user manuals
Our experienced technicians provide top-notch customer service to keep your turnstile operating efficiently.
Packaging and Shipping
Product Packaging:
- Sturdy cardboard box packaging
- Labeled with product information and handling instructions
- Secure foam cushioning to prevent shipping damage
Product Shipping:
- Free shipping within continental United States
- Shipped via UPS or FedEx
- Orders processed within 2-3 business days
- Tracking information provided upon shipment
Frequently Asked Questions
What is the brand name of this tripod turnstile gate?
The brand name is AnKuai.
What is the model number of this tripod turnstile gate?
The model number is AKT301A.
Where is this tripod turnstile gate manufactured?
Manufactured in Guangdong, China.
What is the warranty period for this tripod turnstile gate?
Please refer to the warranty information provided with your purchase.
