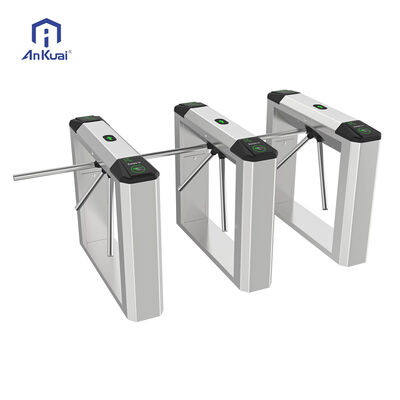

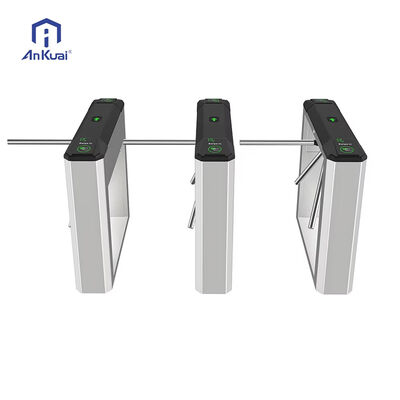

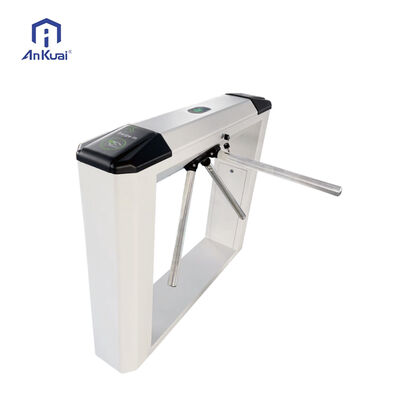

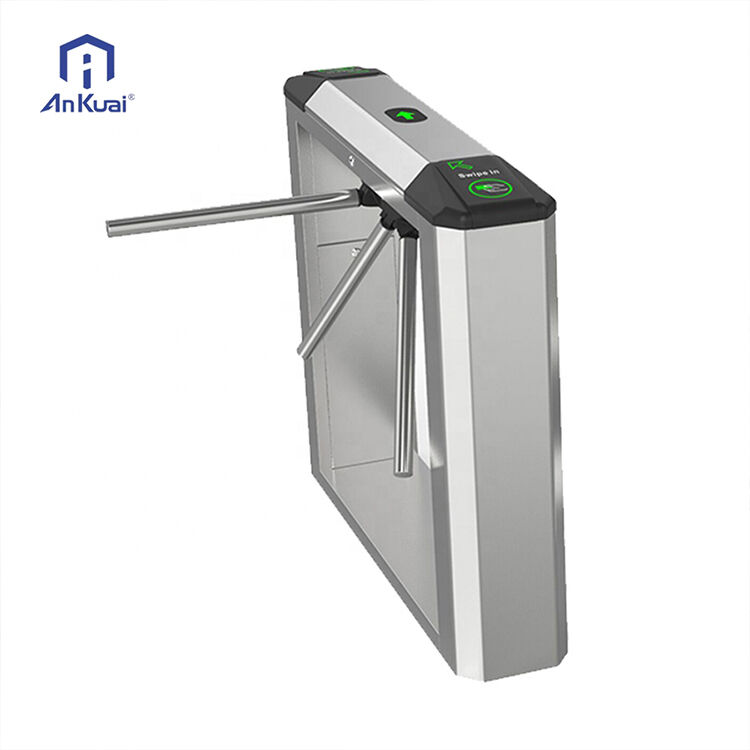

SS304 Stainless Steel Anti-Tailgating IP56 Protected Tripod Turnstile with RFID/QR Code Readers
| Brand Name: | AnKuai |
| Model Number: | AKT303 |
| MOQ: | 1 |
| Price: | $245-335 |
Detail Information
Place of Origin:
Guangdong, China
Access Control:
ESD System, Face Recognition, Fingerprint, IC Card, QR Code, RFID Card
Barrier Speed:
0.2 S
Communication Interface:
Rs485, TCP/IP
Operation Direction:
2-Way
Material:
SS304 Stainless Steel
Protection Level:
IP56
Turnstile Functions:
Anti-Pinch, Anti-Tailgating, Collision Avoidance, Counting Function
Dimensions:
1200*300*1000mm
Pass Speed:
30-40 Persons/min
Power Supply:
AC 220V/110V ±10% 50/60Hz
MCBF:
10 Million Times
Channel Width:
600mm
Power Consumption:
100W/24V
Operating Temperature:
-15 To 60 Degrees
Humidity:
<95%, Without Concretion
Highlight:
SS304 Stainless Steel Tripod Turnstile
,Anti-Tailgating Flap Barrier Turnstile
,IP56 Protection Vertical Turnstile
Product Description
Anti-Rust High Security Entrance Control Compatible Stainless Steel Vertical Tripod Turnstile
Advanced stainless steel tripod turnstile with RFID/QR code reader compatibility for high-security access control applications.
Technical Specifications
| Power Supply | AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz |
| Power Consumption | 100W/24V |
| Temperature Range | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=600 mm |
| Passing Speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Communication Interface | RS485 (Distance: <=1200m) |
| Arm Turning | Bi-direction |
| Material | 304 stainless steel |
| Dimension | 1200*300*1000 mm |
Key Features & Functions
- Auto-reposition function: After card read, if passengers don't pass within regulated time period, turnstile locks automatically
- Bi-direction or uni-direction passing modes
- Automatic arm drop when power is off
- Self-lock function: arm locks automatically after passenger passing

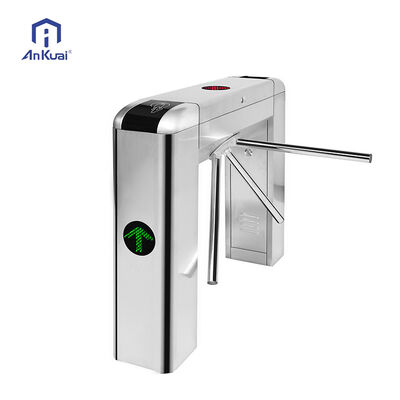

- LED passing arrow indicates direction to guide passengers
- Standard interfaces for easy connection with different readers that send relay signals
- RS485 interfaces enable direct connection between turnstile and computer
- Stable operation with minimal noise
