Semi-Automatic Vertical Tripod Turnstile with 600mm Passage Bi-Directional Access and Stainless Steel Construction
| Brand Name: | ANKUAI |
| Model Number: | AKT301 |
| MOQ: | 1 |
| Price: | $187-229 |
Detail Information
Place of Origin:
Guangdong, China
Access Control:
RFID Card, QR Code, Fingerprint, Face Recognition, ESD System, IC Card

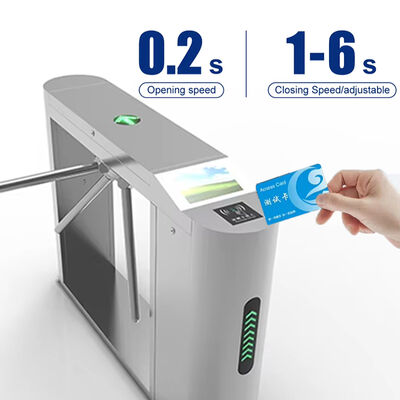

Barrier Open Time:
0.2 S, 0.4 S, 0.5 S, 0.6 S, 0.8 S, 1 S, 1.2 S
Communication Interface:
RS-232, Rs485
Operation Direction:
2-Way
Material:
Stainless Steel
Protection Level:
IP54
Turnstile Function:
Anti-Pinch, Anti-Tailgating
Pass Width:
600mm
Pass Direction:
Uni-direction Or Bi-direction
Pass Rate:
30-35 Persons/min
Power Input:
AC100-240V,50/60HZ
Working Voltage:
-30℃-+70℃
Working Environment:
Indoor/outdoor
Pass Speed:
40 Person/min
Working Humidity:
<95%RH. No Condensation
Highlight:
600mm Passage Tripod Turnstile
,Bi-Directional Vertical Turnstile
,Stainless Steel Flap Barrier Turnstile
Product Description

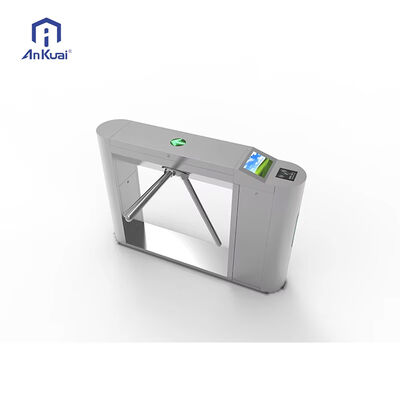

Semi-Automatic Vertical Tripod Turnstile
Please consult customer service for product details, pricing, and shipping costs before placing your order.
Product Specifications
| Product Name | Portable Turnstile Tripod Turnstile Gate Type Pedestrian Traffic Portable Control Portable Turnstile |
| Material | 304 Stainless Steel |
| Width of Channel | <600mm |
| Length of Rod | Standard 500mm |
| Type | Power off rod fall down automatically. Manual lift up rod when power on |
| Control Direction | Single direction or bi-direction (optional) |
| Alarm | Violence entry and following entry |
| Pass Speed | 40 persons/min |
| Voltage | AC110V~AC220V |
| Working Temperature | -15℃ to 70℃ |
| Support Reading Methods | IC/ID/RFID Cards, Fingerprint/Face Recognition, Barcode, QR Code, ESD Device |
| Extensible Function | People counting, Voice Alarm, Image Capture |
| Working Humidity | <95%RH (No condensation) |
| Communication | Dry contact, TCP/IP or RS485 |
Product Gallery
Applications
Combining safety and convenience, Ankuai turnstiles are used in a wide variety of settings including stadiums, amusement parks, mass transit stations, office lobbies, airports, ski resorts, factories, power plants, and casinos.
Company Profile
Guangdong Ankuai Intelligent Technology Co., Ltd. Founded in 2010, Ankuai specializes in production and sales of road gates, advertising road gates, license plate recognition systems, channel gates, pedestrian channel advertising doors, industrial doors, and intelligent parking lot management systems.
National Patents: 200+
Area: 26,000 Square Meters
Processing & Assembly Workshop: 50,000 Square Meters
Employees: 450+
R&D Team: 50 Professionals
Monthly Production Capacity: 30,000 Units
Our Factory
Exhibition & Events
Why Choose Ankuai
- Market Position: Focus on Turnstiles, Barrier Gates, and Face Recognition Systems
- Overseas Experience: Serving customers in more than 170 countries
- Projects Solution: Entire project solutions - just call one company
- Simplified Design: Mold development, easy installation, easy maintenance
- Products Patent: More than 130 patents
- Service Teams: Over 15 years of industry experience
- Service Concept: 3 minutes response, 3 hours solution, 3 days problem resolution
Frequently Asked Questions
What is your company's strength in this field?
We are one of the leading companies in this field. Operating from over 26,000 square meters with 130+ national patents, we have more than 450 employees including a 50-person R&D team.
How about the quality of your products?
We choose German, Japanese, and Chinese lead brand accessories to ensure product quality from the source. At our factory, we implement 5S management to control the production process.
Do you provide OEM service?
1) We can customize barrier gates according to your needs.
2) We can print your logo on barrier gates, and customize retail box packaging and other requirements.
2) We can print your logo on barrier gates, and customize retail box packaging and other requirements.
Lead time for standard items?
1-50 sets: 5-10 working days; 50-100 sets: 7 working days; 100-500 sets: 15 working days. For custom-made packaging or logos, add 3-10 working days.
Do you provide quality guarantee/warranty and after-sales service?
One-year guarantee & lifetime technology support.
What are your after-sales services?
We provide lifetime technology support online via emails, video calls, phone, etc. We have English-speaking engineers for direct communication.
