Automatic SUS304 Stainless Steel Swing Barrier Turnstile with Bi-Directional Arm Turning and Anti-Tailgating Access Control

Brand Name:	AnKuai
Model Number:	AKT326
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Product Name:

Swing Turnstile Barrier

Size:

1200*150*980 Mm

Power Supply:

AC 110~220V, 50/60Hz

Passage Width:

≤950mm

Arm Length:

≤600mm

Open/Close Time:

Infrared:

4 Pairs

Housing Material:

SUS304 Stainless Steel

Warranty:

12 Month

Price:

Negotiate

Supply Ability:

10000 Peices/Month

Highlight:

SUS304 Stainless Steel Swing Barrier Turnstile

Bi-Directional Arm Turning Access Control Turnstile

Anti-Tailgating Swing Turnstile Barrier

Product Description

Automatic Access Control RFID Anti-Tailgating Swing Barrier Turnstile

High-Stability, Multi-Function Swing Turnstile for Smart Access

Compatible with ID/IC Card, Barcode, Fingerprint & Face Recognition | -25~75℃ Wide Temperature Adaptation

Core Features

Automatically detects equipment faults and sends prompts, simplifying maintenance and reducing downtime
Supports two-way passage, with adjustable direction settings to meet different site management needs
Arm opens automatically when power is cut off (meets fire safety standards) and locks automatically when power is restored
Arm locks tightly when no open signal is received, preventing unauthorized forced entry
After valid card reading and passenger passage, arm close delay can be set from 1-60s via the control panel
If the passenger does not pass within the set time after card reading, the system automatically cancels the passage permission

Technical Specifications

Parameters	AKT326 Swing Barrier Turnstile
Power Supply	AC110~220V (Working Power: DC24V)
Power Consumption	24V BLDC 40W
Working Temperature	-25℃ ~ 75℃
Relative Humidity	<95%, No Condensation
Passage Width	≤950 mm
Passing Speed	30 persons/min (Normal Open); 20 persons/min (Normal Close)
Arm Open/Close Time	1s
Input Interface	+12V Electrical Signal or Impulse Signal (Width >100ms, Drive Current >10mA)
Communication Interface	RS485, TTL232

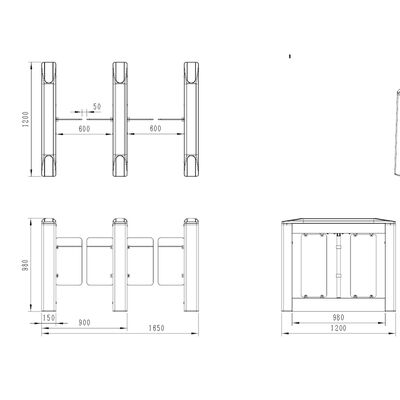

Dimension (L×W×H)	1200×150×980 mm
Controlling Way	Relay Signal, RS485

Where to Use AKT326?

Office Buildings

Manage employee access, ensure office security

Industrial Parks

Control staff and visitor entry, prevent unauthorized access

Residential Communities

Guarantee resident safety, manage visitor flow

Transport Hubs

Efficient passenger passage, integrate with ticket systems

Our Company Advantages

Advanced Production Workshop

Professional R&D Team

Active Participation in Exhibition

Product Certification

The AKT326 Swing Barrier Turnstile has passed ISO and CE certifications, complying with international quality and safety standards. You can use it with confidence in global markets.

After-Sales Service

Quality Guarantee: 12-month warranty for the whole machine (excluding consumables)
Technical Support: 24/7 online support via email or phone
Installation Guidance: Provide detailed installation manual and video tutorials
Spare Parts Supply: Stable supply of original spare parts for long-term maintenance

Frequently Asked Questions

Can AKT326 integrate with face recognition devices?

Yes. The AKT326 has a standard electrical interface, which can be easily connected to face recognition, fingerprint, and other biometric devices to realize multi-mode access control.

Is the AKT326 suitable for outdoor use?

Yes. With 304/316 stainless steel material and wide temperature adaptation (-25~75℃), it can be used outdoors. For heavy rain areas, we recommend matching it with a rain shelter to extend service life.

How to adjust the arm close delay time?

You can set the delay time (1-60s) directly through the control panel of the AKT326. The user manual provides detailed operation steps, or our technical team can guide you remotely.

What is the delivery time for AKT326?

For standard models (304 stainless steel, straight arm), the delivery time is 5-7 working days. For customized models (special material, color, arm shape), it takes 10-15 working days.
