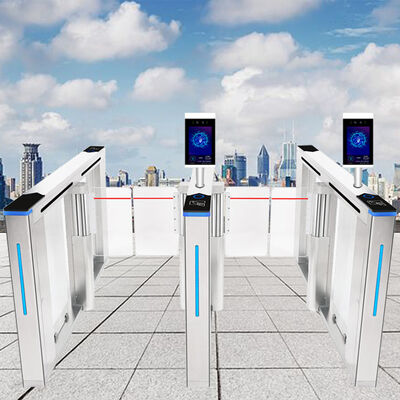

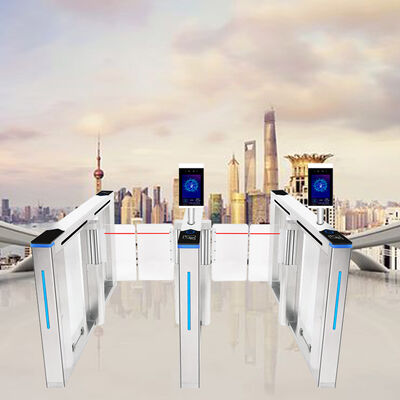

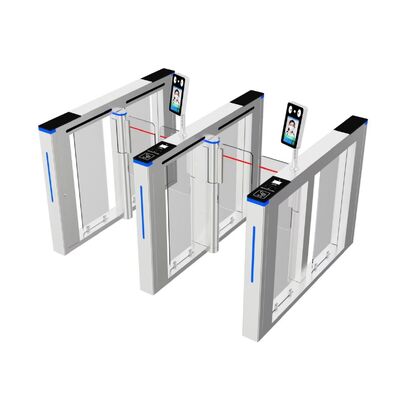

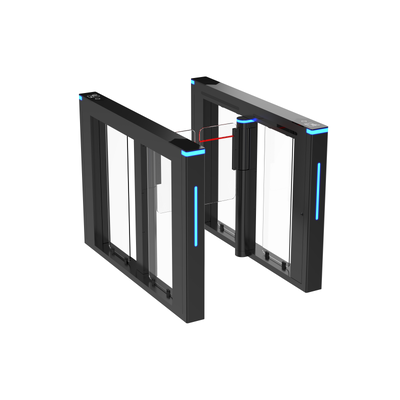

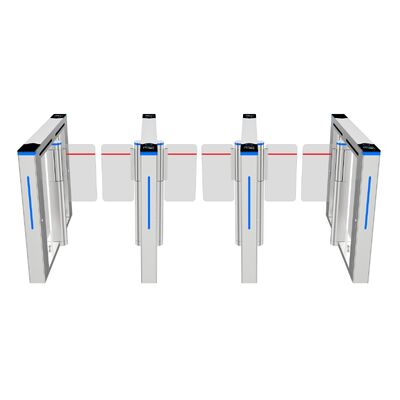

Auto BLDC 50W Fast Speed Swing Barrier Turnstile for Smart Access Control Solution

Brand Name:	AnKuai
Model Number:	AKT328
MOQ:	1
Price:	Negotiate
Packaging Details:	Wooden Case

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Power Supply:

AC110~220V / 50~60Hz

Passage Width:

≤1200mm

Motor Power Consumption:

24V BLDC 50W

Arm Length:

≤600mm

Passing Speed:

40~60 Persons/Min

Infrared:

4 Paris

Dimension:

1400*120*1020mm

Communication Interface:

RS485, TTL232

Movement:

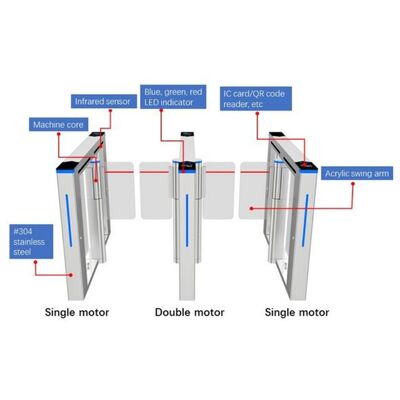

Single And Double Movement

Supply Ability:

10000 Peices/Month

Highlight:

50W BLDC swing barrier turnstile

fast speed access control turnstile

smart swing barrier turnstile with warranty

Product Description

0.8s Ultra-Fast Speed Gate | 40-60 Persons/Min High Efficiency Access

SUS304 Stainless Steel | 4 Pairs Infrared | Indoor & Outdoor Applicable | Bi-Directional Passage

Core Features

0.8s Ultra-Fast Response

Equipped with 24V BLDC motor, opening/closing in 0.8s, passing speed up to 40-60 persons/min, efficient for high-traffic scenarios.

Bi-Directional Passage

Supports two-way access with adjustable direction settings, adapting to different site management requirements.

Power-Off Safety Design

Arm opens automatically when power is cut off (meets fire safety standards) and locks automatically after power restoration.

Anti-Tailgating Protection

4 pairs of infrared sensors detect passage status; arm remains locked without valid signal, preventing unauthorized entry.

Adjustable Delay Close

Arm close delay can be set from 1-60s via control panel after valid card reading and passenger passage.

Self-Diagnosis & Auto-Reset

Automatically detects faults; cancels passage permission if passenger doesn't pass within set time, adjustable by managers.

Technical Specifications

Parameters	AKT328 Speed Gate
Power Supply	AC110~220V/50~60Hz
Motor Power Consumption	24V BLDC 50W
Passage Width	≤1200mm (Default: 600mm)
Arm Length	≤600mm
Open/Close Time	0.8s
Passing Speed	40~60 Persons/min
Infrared Sensors	4 Pairs
Dimension (L×W×H)	1400×120×1020mm
Housing Material	SUS304 Stainless Steel
Working Temperature	-25℃ ~ 75℃
Working Environment	Indoors or Outdoors
Communication Interface	RS485, TTL232

Where to Use AKT328?

Airports & Transportation Hubs

High passing efficiency, adapting to large passenger flow during peak hours

High-End Office Buildings

Elegant appearance, fast access for employees and visitors

Our Company Advantages

Advanced Automated Production Workshop

Independent R&D Journey

Experienced and Powerful Factory

Domestic and International Exhibitions

Global Bestseller

Widely Used

Product Certification

The AKT328 Speed Gate has passed ISO and CE certifications, complying with international quality and safety standards. Its SUS304 stainless steel housing and stable performance ensure reliable use in global markets.

After-Sales Service

✓ Quality Guarantee: 12-month warranty for the whole machine (excluding consumables)
✓ Technical Support: 24/7 online support via email or phone (www.barrierturnstiles.com)
✓ Installation Guidance: Provide detailed installation manual and video tutorials
✓ Spare Parts Supply: Stable supply of original spare parts for long-term maintenance

Frequently Asked Questions

Can AKT328 be integrated with biometric access control systems?

Yes. It supports connection with fingerprint, face recognition, and other biometric devices through standard communication interfaces (RS485, TTL232), realizing multi-mode intelligent access control.

What is the maximum passage width of AKT328?

The maximum passage width is ≤1200mm, with a default width of 600mm. It can be customized according to actual site needs to meet different access scenarios.

How to maintain the AKT328 Speed Gate for long-term use?

Regularly clean the stainless steel housing with a dry cloth; check the infrared sensors and motor operation status every 6 months; avoid severe collision or exposure to corrosive substances.

What is the delivery time for AKT328?

For standard models, the delivery time is 5-7 working days. For customized models (special passage width, color), it takes 10-15 working days. Contact our sales team for specific arrangements.
