1.5s Fast Opening 6m Max Boom Length IP54 Waterproof Parking Barrier Gate for Vehicle Management

Brand Name:	AnKuai
Model Number:	AKD116
MOQ:	1
Price:	Negotiate
Packaging Details:	Carton
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Power Supply:

AC110~220V±10%

Drive:

DC Brushless Motor

Motor Power Consumption:

Max Arm Length:

Speed:

1.5~3s/3~6s

Specification:

355*245*1035mm

Height From The Ground:

890mm

Frequency:

50/60Hz

Protection Grade:

Supply Ability:

10000 Peices/Month

Highlight:

adjustable parking boom barrier gate

vehicle management boom barrier gate

traffic access boom barrier gate

Product Description

1.5s Fast Opening | 8m Max Boom Length | IP54 Waterproof

24V BLDC Motor | 5 Million MCBF | -30℃~80℃ Wide Temperature Adaptation | LED Signal Guidance

Core Features

1.5s Ultra-Fast Response

Adjustable opening/closing speed (1.5~6s) for different scenarios, improving traffic efficiency in high-flow parking lots. Fast response reduces vehicle queuing at peak hours.

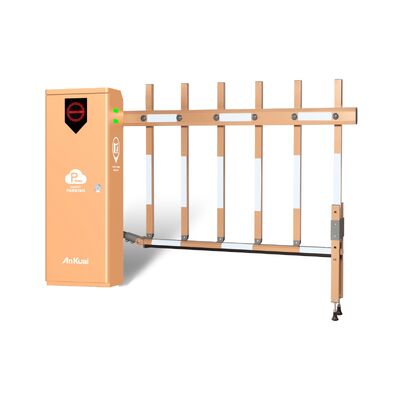

Multiple Boom Type Options

Supports straight, telescopic, folding, and fence booms (max 6m length), adapting to narrow spaces, height restrictions and special anti-climbing access needs.

LED Signal Guidance

Built-in LED signal bar provides clear passage guidance (red/green light), enhancing safety and user experience during day and night operation.

IP54 Waterproof & Dustproof

Reliable protection grade ensures stable operation in rain, dust, and extreme temperature environments (-30℃~80℃) without performance degradation.

5 Million MCBF Durability

High-quality BLDC motor and precision mechanical structure ensure long service life with minimal maintenance, reducing total cost of ownership.

30m Remote Control

Long-distance remote operation enables convenient access control without manual on-site operation, suitable for large parking lot management.

Technical Specifications

Parameters	AK-D116 LED Signal Barrier Gate
Power Supply	AC110~220V±10%, 50/60Hz
Driver	24V BLDC Motor
Motor Power Consumption	100W
Max Boom Length	6m
Opening/Closing Speed	1.5~3s / 3~6s
Height from Ground	890mm
Housing Dimension (W×D×H)	355×245×1035mm
Working Temperature	-30℃ ~ 80℃
Weight	42kg
Remote-Control Distance	≤30m
Protection Grade	IP54
MCBF	5 Million Cycles

Boom Type Specifications

Boom Type	Max Length	Opening Time	Closing Time
Straight/Telescopic Boom	≤3m	1.5s	2s
Straight/Telescopic Boom	≤4.5m	3s	4s
Straight/Telescopic Boom	≤6m	5s	6s
Folding Boom	≤4.5m	3s	4s
Folding Boom	≤6m	5s	6s
Fence Boom	≤5m	5s	6.5s

Where to Use AK-D116?

Residential Communities

Safe and reliable, managing resident and visitor parking access efficiently

Office Buildings

High-flow adaptation, fast passage for customers and employees

Commercial Parking Lot

Durable and stable, solving parking problems for business customers.

Our Company Advantages

Fifteen years of experience as a manufacturing powerhouse

Advanced Production Workshop

A constantly innovative R&D process

A wide range of application scenarios

Participating in domestic and international exhibitions

Providing solutions to global clients

Product Certification

The AK-D116 LED Signal Barrier Gate has passed CE certification and ISO standards, complying with international quality and safety requirements. Its high durability and stable performance ensure reliable use in global markets.

After-Sales Service

Quality Guarantee: 12-month warranty for the whole machine (excluding consumables)
Technical Support: 24/7 online support via email or phone (www.barrierturnstiles.com)
Installation Guidance: Provide detailed installation manual and video tutorials
Spare Parts Supply: Stable supply of original spare parts for long-term maintenance

Frequently Asked Questions

Can AK-D116 be integrated with parking management systems?

Yes. It supports connection with license plate recognition, card reading, and other parking management systems through standard interfaces, realizing intelligent access control and fee collection integration.

What is the advantage of telescopic boom?

The telescopic boom can be contracted (e.g., 6m boom as 4m+2m or 3m+3m), making transportation and installation more convenient, especially for narrow access roads or long-distance transportation scenarios.

How to choose the right boom type for my parking lot?

For standard wide roads: straight boom; for narrow spaces: folding boom; for safety requirements (preventing climbing): fence boom; for long-distance transportation: telescopic boom. Contact our team for customized recommendations.

Does AK-D116 have anti-collision function?

Yes. It is equipped with built-in anti-collision sensors (optional) that automatically reverse the boom when detecting obstacles, avoiding damage to vehicles or the device. The LED signal bar also enhances early warning effects.

Tags:
