AnKuai P823 5-megapixel HD Camera License Plate Recognition Terminal with 10.1-inch Outdoor LCD Screen and 99% Recognition Accuracy
| Brand Name: | ANKUAI |
| Model Number: | P823-1 |
| MOQ: | 1 |
| Price: | USD 545-650 /Peice |
| Packaging Details: | cartons |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Cabinet Color:
Black And Grey
Motor:
DC24V Brushless Motor
Paymentmethods:
Supports Multiple Payment Gateways
Size Of Chassis:
L375*W315*H1365mm
Access Contol Type:
License Plate Recognition
Category:
Intelligence Parking System
Applications:
High Way Cross Road Solution
Rated Voltage:
220/110V
Size:
470mm*390mm*95mm
Pots:
TCP/lP Ports, Power Supply Ports
Speed Rate:
1.8~3s/3s~6s
Dimension:
360*150*1600mm
Power Interface:
DC12V
Motor Power:
60W
Suitable For:
Parking Lot
Delivery Time:
5-8 working days
Supply Ability:
10000
Product Description

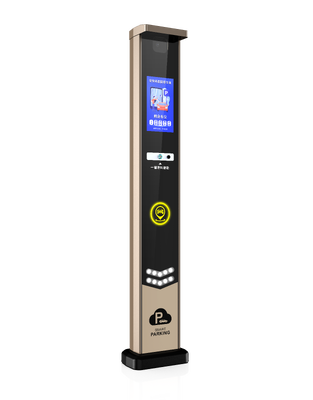

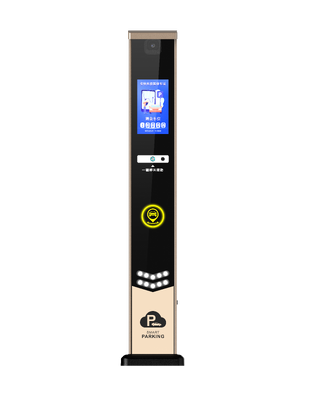

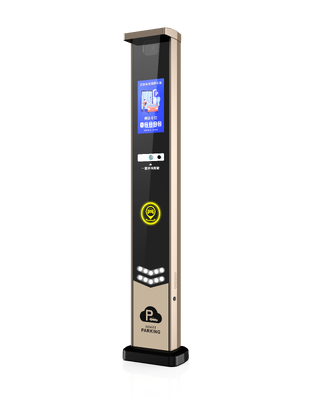

AnKuai P823 LCD License Plate Recognition Terminal for Parking Access
Product Overview
The AnKuai P823 is an industrial-grade license plate recognition terminal specifically designed for parking entrance and exit control systems. This all-in-one vertical cabinet integrates a high-definition 5-megapixel LPR camera, 10.1-inch outdoor LCD screen, fill light, speaker, relay output, and Ethernet interface with optional Bluetooth commissioning support.
Ideal for system integrators, the P823 supports vehicle identification, barrier opening control, QR code display for self-service payment, and offline QR scanning for vehicles without license plates.
Key Features
- Complete parking access terminal with integrated LPR camera, LCD display, speaker, fill light, and relay output
- 5-megapixel HD camera module with ICE V6.0 CNN deep learning algorithm
- 10.1-inch HD outdoor LCD screen with 1366 x 768 resolution
- Supports multiple plate types including standard, new energy, government, embassy, and coach plates
- Recognition distance of 3.0 to 6.0 meters and vehicle speed range of 0 to 40 km/h
- Dry contact relay output for barrier gate opening control
- Dynamic QR display and offline QR code scanning capabilities
- Optional Bluetooth mobile app commissioning when Bluetooth module is installed
Technical Specifications
| Item | Specification |
|---|---|
| Brand | AnKuai |
| Model | P823 |
| Product Category | License Plate Recognition Terminal |
| Working Voltage | AC 220V +/-10% |
| Internal Power Supply | 12V/6A CYT power supply |
| Power Consumption | <=60W |
| Operating Environment | -20°C to +60°C, <=95% RH, non-condensing |
| Protection Level | IP54 |
| Housing | High-strength carbon steel, powder-coated |
| Camera Resolution | 5-megapixel HD |
| Camera Module | EMV87-L500W |
| Algorithm | ICE V6.0 CNN Deep Learning Algorithm |
| Recognition Distance | 3.0 to 6.0 meters |
| Speed Range | 0 to 40 km/h |
| Recognition Angle | <=45 degrees |
| Recognition Accuracy | >=99% for standard plates |
| Display | 10.1-inch HD outdoor LCD |
| Display Resolution | 1366 x 768 |
| Control Card | S100 |
| Fill Light | 10-LED yellow light, photo-sensitive auto-control |
| Network | RJ45 / LAN, 10/100 Mbps Ethernet |
| Relay Output | OUT1 / OUT2 dry contact output |
| Audio | Internal 8 Ohm / 5W waterproof square speaker |
| Default Camera IP | 192.168.55.100 |
| Equipment Height | 1352 mm |
| Chassis Footprint | 256 mm x 176 mm |
Installation Guidelines
For optimal performance, install the P823 terminal 3 to 6 meters from the vehicle stop line or barrier gate. The recommended concrete base dimensions are 400 x 400 x 200 mm using M10 expansion bolts for secure mounting.
