P823 LPR Parking Terminal with 5MP Camera 10.1-inch HD Outdoor LCD and Dynamic QR Display
| Brand Name: | ANKUAI |
| Model Number: | P823-2 |
| MOQ: | 1 |
| Price: | USD 545-650 /Peice |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Power Voltage:
AC110~220V±10V
Surface Treatment:
Brushed Finish
Ambient Temperature:
-25℃~+70℃
Size:
1400*300*980
Throughput Rate:
30 People/min
Model:
CW507
Work Environment:
Indoor
Power:
AC220C±10V,50HZ
Opening/Closing Time:
0.8 Seconds
Motor:
DC Brushless Motor
Infrared Beam:
4 Pairs
Rated Power:
100W
Switching Time:
1 Second
Passing Speed:
40-60 Persons/min
Use Environment:
Indoor, Outdoor
Delivery Time:
10 WORKING DAYS
Supply Ability:
10000
Product Description
P823 LCD LPR Parking Terminal with 5MP Camera and QR Display
Product Overview

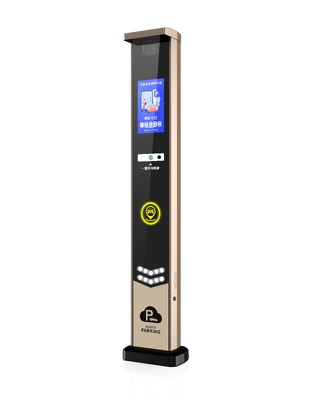

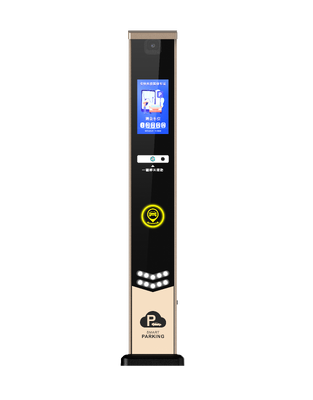

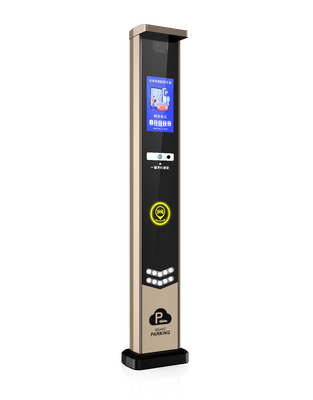

The AnKuai P823 combines an LCD screen and LPR camera in a single upright cabinet, designed for parking sites requiring driver-facing terminals. The 10.1-inch HD outdoor LCD displays parking information and dynamic QR codes, while the integrated 5-megapixel camera performs license plate recognition at distances of 3.0 to 6.0 meters.
This terminal supports various plate types including standard, new energy, government, embassy, and coach plates. With offline QR scanning capabilities for vehicles without plates, the P823 enables efficient self-service and unattended parking operations.
Key Features
- 10.1-inch outdoor LCD for driver-facing parking information and QR display
- Integrated 5-megapixel LPR camera with 3.0 to 6.0 meter recognition distance
- Dynamic QR display for self-service payment workflows
- Offline QR code scanning support for un-plated vehicles
- Barrier control through OUT1/OUT2 dry contact relay output
- Photo-sensitive 10-LED yellow fill light for lane recognition
- Ethernet and RS485 interfaces for parking system integration
- IP54 powder-coated carbon steel housing for outdoor durability
Technical Specifications
| Brand | AnKuai |
| Model | P823 |
| Product Category | License Plate Recognition Terminal |
| Working Voltage | AC 220V +/-10% |
| Internal Power Supply | 12V/6A CYT power supply |
| Power Consumption | ≤60W |
| Operating Environment | -20°C to +60°C, ≤95% RH, non-condensing |
| Protection Level | IP54 |
| Housing | High-strength carbon steel, powder-coated |
| Camera Resolution | 5-megapixel HD |
| Camera Module | EMV87-L500W |
| Algorithm | ICE V6.0 CNN Deep Learning Algorithm |
| Recognition Distance | 3.0 to 6.0 meters |
| Speed Range | 0 to 40 km/h |
| Recognition Angle | ≤45 degrees |
| Recognition Accuracy | ≥99% for standard plates |
| Display | 10.1-inch HD outdoor LCD |
| Display Resolution | 1366 x 768 |
| Control Card | S100 |
| Fill Light | 10-LED yellow light, photo-sensitive auto-control |
| Network | RJ45/LAN, 10/100 Mbps Ethernet |
| Relay Output | OUT1/OUT2 dry contact output |
| Trigger Input | IO1/IO2/GND |
| Serial Communication | RS485 A/B |
| Audio | Internal 8 Ohm/5W waterproof square speaker |
| Default Camera IP | 192.168.55.100 |
| Equipment Height | 1352 mm |
| Chassis Footprint | 256 mm x 176 mm |
| Recommended Concrete Base | 400 x 400 x 200 mm |
| Recommended Anchor Bolts | M10 expansion bolts |
| Recommended Installation Distance | 3 to 6 meters from vehicle stop line or barrier gate |
