AnKuai P823 Outdoor LPR Terminal with 5-megapixel HD LPR Camera IP65 Rated and 10.1-inch Outdoor LCD for Parking Lane Installation
| Brand Name: | ANKUAI |
| Model Number: | AKP832-3 |
| MOQ: | 1 |
| Price: | USD 545-650 /Peice |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Capture Rate:
≥99%
Cabinet Material:
Iron Plate Metal 2.0
Power Interface:
DC12V
Opening Mode:
Key, Bluetooth, Remote Controller
Recognition Distance:
3-10m
Input Voltage:
AC 200–240 V, 50 Hz
Normal Work Life:
Five Years
Installation Angle:
Fine Angle Adjustment
Data Storage Options:
Cloud, NVR, Memory Card, SD Card
Userinterface:
Web-based Management Platform
Barrier Motor:
Brushed Motor
Network:
RJ45
Ip Rating:
IP65
Recognitionspeed:
Less Than 0.5 Seconds Per Plate
Operating Voltage:
AC220V±10%/50Hz
Delivery Time:
10 WORKING DAYS
Supply Ability:
10000
Highlight:
IP65 Rated LPR Parking Terminal
,IP65 5MP HD LPR Camera Terminal
,Outdoor LPR Parking Terminal
Product Description

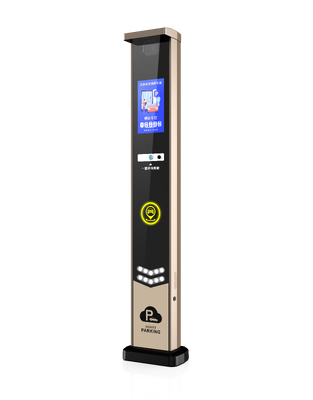

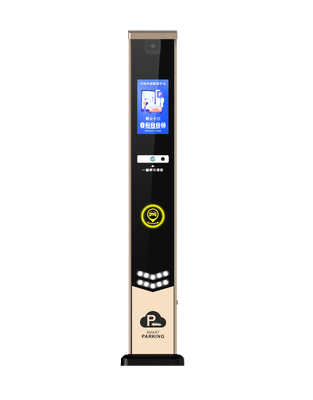

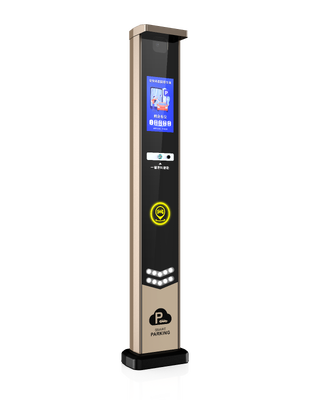

AnKuai P823 Outdoor LPR Terminal for Parking Lane Installation
Product Overview
The AnKuai P823 is a vertical outdoor license plate recognition terminal designed specifically for parking lane installation. This integrated solution combines a high-definition LPR camera with an outdoor display and control system in a single, robust terminal.
Key Features- 5-megapixel HD LPR camera with deep learning algorithm
- 10.1-inch outdoor LCD display for clear visibility
- IP54 rated high-strength carbon steel housing
- Integrated fill light, speaker, and barrier control outputs
- Professional installation design with concrete base recommendations
Installation Specifications

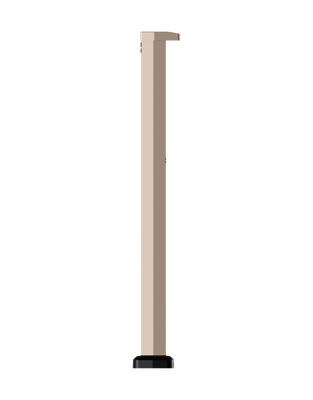

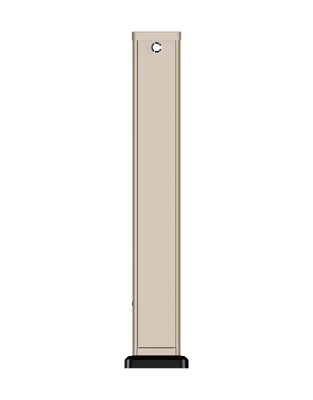

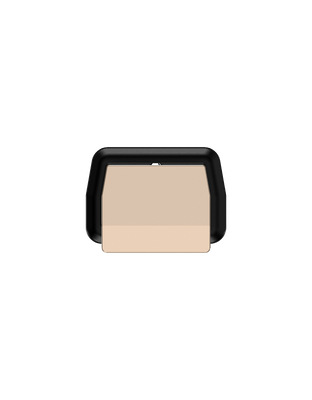

- Cabinet height: 1352 mm with 256 mm × 176 mm chassis footprint
- Recommended installation distance: 3 to 6 meters from vehicle stop line or barrier gate
- Mounting: M10 expansion bolts
- Concrete base: 400 × 400 × 200 mm with pre-embedded PVC conduits
- Camera horizontal viewing angle: within 45 degrees
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Model | AnKuai P823 |
| Product Category | License Plate Recognition Terminal |
| Working Voltage | AC 220V ±10% |
| Power Consumption | ≤60W |
| Operating Environment | -20°C to +60°C, ≤95% RH, non-condensing |
| Protection Level | IP54 |
| Camera Resolution | 5-megapixel HD |
| Recognition Algorithm | ICE V6.0 CNN Deep Learning Algorithm |
| Recognition Distance | 3.0 to 6.0 meters |
| Speed Range | 0 to 40 km/h |
| Recognition Accuracy | ≥99% for standard plates |
| Display | 10.1-inch HD outdoor LCD (1366 × 768) |
| Network Interface | RJ45 / LAN, 10/100 Mbps Ethernet |
| Default Camera IP | 192.168.55.100 |
Connectivity & Control
- External trigger input for loop detector or radar hardware trigger mode
- OUT1 / OUT2 dry contact output for barrier opening control
- RS485 serial communication interface
- Internal 8 Ohm / 5W waterproof square speaker
- 10-LED yellow fill light with photo-sensitive auto-control
