P823 Smart Parking LPR Terminal with 5-megapixel HD Camera IP54 Protection and Dynamic QR Display for Unattended Vehicle Access

All Category

Vehicle Detection Radar Sensor

Hydraulic Retractable Bollards

Metal Detector Gate

Mrs. Betty

betty@ankuai.net

+8613827208652

Contact Now

P823 Smart Parking LPR Terminal with 5-megapixel HD Camera IP54 Protection and Dynamic QR Display for Unattended Vehicle Access

Brand Name:	ANKUAI
Model Number:	P823-4
MOQ:	1
Price:	USD 545-650 /Peice
Packaging Details:	CARTONS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Packing:

Carton/Wooden Box

Working Humidity:

-30%-95%

Flap Turnstiles Warranty:

1 Year

Protection Level:

Drive Current:

≥10mA

Protection Rating:

Function:

Automatic

Chassis Size:

1200*300*980mm

Ambient Temperature:

-25℃~+70℃

Driving Voltage:

110v-240v

Environment:

-25~+70;

Drive Voltage:

DC24V

Supply Ability:

10000

Product Description

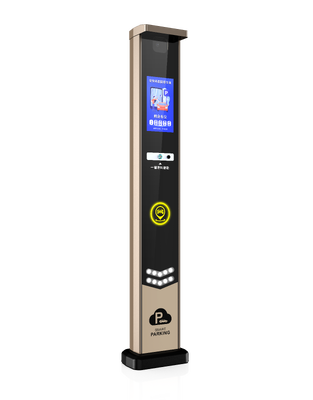

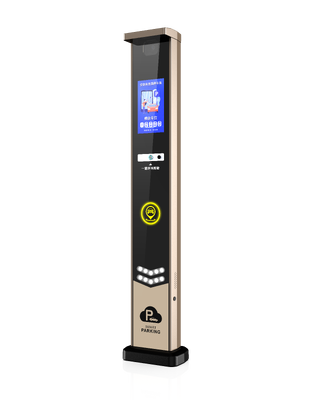

P823 Smart Parking LPR Terminal for Unattended Vehicle Access

Product Overview

The AnKuai P823 is an integrated license plate recognition terminal designed specifically for unattended parking environments. This compact access solution combines vehicle identification, driver information display, and barrier control connectivity in a single robust unit.

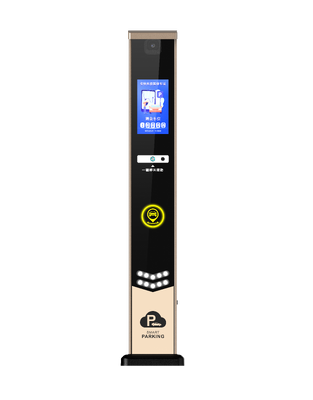

P823 Smart Parking LPR Terminal with 5-megapixel HD Camera IP54 Protection and Dynamic QR Display for Unattended Vehicle Access 0

Key Applications

Ideal for parking entrance and exit lanes requiring automated vehicle processing with driver interaction capabilities, including self-service payment systems and handling of un-plated vehicles.

Key Features & Benefits

Specifically engineered for unattended parking environments
Comprehensive functionality: plate recognition, LCD display, QR interaction, audio output, and barrier control
5-megapixel HD camera with ≥99% accuracy for standard license plates
Recognizes vehicles moving at speeds from 0 to 40 km/h
10.1-inch HD outdoor LCD displays parking information and QR content
Offline QR scanning capability for handling un-plated vehicles
IP54-rated housing for reliable outdoor installation
Optional mobile Bluetooth commissioning module available

Technical Specifications

Parameter	Specification
Brand	AnKuai
Model	P823
Product Category	License Plate Recognition Terminal
Working Voltage	AC 220V ±10%
Internal Power Supply	12V/6A CYT power supply
Power Consumption	≤60W
Operating Environment	-20°C to +60°C, ≤95% RH, non-condensing
Protection Level	IP54
Housing	High-strength carbon steel, powder-coated
Camera Resolution	5-megapixel HD
Camera Module	EMV87-L500W
Algorithm	ICE V6.0 CNN Deep Learning Algorithm
Recognition Distance	3.0 to 6.0 meters
Speed Range	0 to 40 km/h
Recognition Angle	≤45 degrees
Recognition Accuracy	≥99% for standard plates
Supported Plates	Standard, new energy, government/public facility, high-security facility/restricted access area, embassy, coach, etc.
Display	10.1-inch HD outdoor LCD
Display Resolution	1366 × 768
Control Card	S100
Fill Light	10-LED yellow light, photo-sensitive auto-control
Fill Light Reference	5 m >50 LUX
Network	RJ45/LAN, 10/100 Mbps Ethernet
Relay Output	OUT1/OUT2 dry contact output
Trigger Input	IO1/IO2/GND
Serial Communication	RS485 A/B
Audio	Internal 8 Ohm/5W waterproof square speaker
Default Camera IP	192.168.55.100
Equipment Height	1352 mm
Chassis Footprint	256 mm × 176 mm

Installation Guidelines

Recommended Concrete Base: 400 × 400 × 200 mm

Recommended Anchor Bolts: M10 expansion bolts

Optimal Installation Distance: 3 to 6 meters from vehicle stop line or barrier gate

Additional width references: 193 mm and 109 mm as shown in dimension diagrams
