AnKuai P829 Outdoor Parking LPR Terminal with IP54 Housing, Stainless Steel Material, and 0.6 Seconds Open Time for Lane Installation
| Brand Name: | ANKUAI |
| Model Number: | P829 |
| MOQ: | 1 |
| Price: | 780 |
| Packaging Details: | cartons |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Communication Interface:
RS485
Pass Speed:
30 ~ 45 People / Min
Motor:
Brushless DC
Dimension:
1200*300*1000mm
Ip Protection Level:
IP45
Communication:
RS232/RS485
Arm Length:
300mm
Surface Treatment:
Baking Finish
Passing Speed:
40-60 Persons/min
Working Humidity:
≤95%RH
Open Time:
0.6 Seconds (Adjustable)
Material:
Stainless Steel
Top Cover:
AISI SUS304 2.0MM
Wing Color:
Optional
Interface:
RS485, TCP/IP (Optional)
Delivery Time:
5～8 working days
Supply Ability:
10000
Product Description

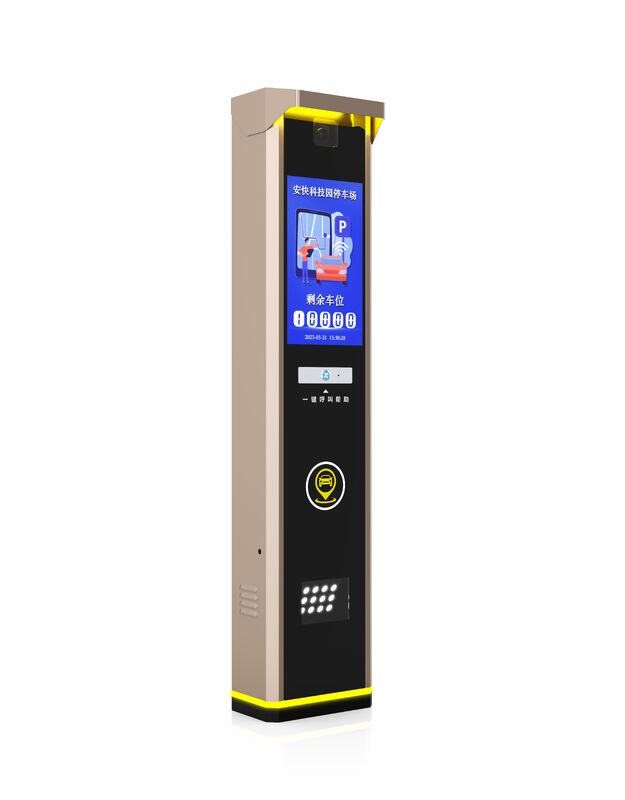

AnKuai P829 Outdoor Parking LPR Terminal for Lane Installation
Product Overview
The AnKuai P829 is engineered for parking projects where installation planning is as critical as recognition performance. This license plate recognition terminal combines robust construction with precise technical specifications for reliable outdoor lane operation.
Key Features

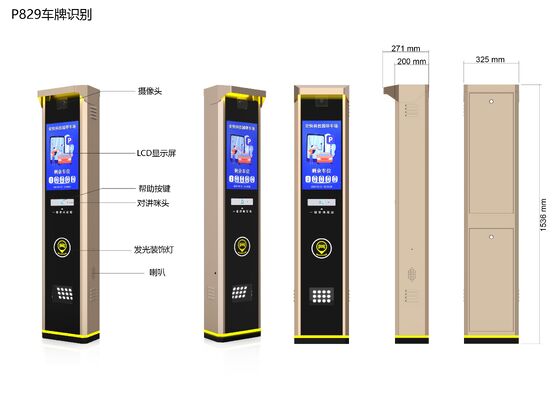

- Compact dimensions: 328 mm L × 271 mm W × 1536 mm H
- Recommended installation offset: 0.5 to 1 meter from driving lane edge
- Optimal camera capture zone: 3 to 6 meters ahead
- Secure mounting with four heavy-duty M10 or M12 expansion bolts
- Integrated cable routing for AC 220V power and Cat6 network cables
- OUT1/OUT2 dry contact output for barrier control integration
- IN1/IN2/GND input for ground loop detector or radar trigger
- IP54-rated housing for durable outdoor lane installation
Technical Specifications
| Item | Specification |
|---|---|
| Brand | AnKuai |
| Model | P829 |
| Product Category | License Plate Recognition Terminal |
| Working Voltage | AC 220V +/-10% |
| Dimensions | 328 mm L × 271 mm W × 1536 mm H |
| Protection Level | IP54 |
| Housing Material | SPCC cold-rolled steel with outdoor powder coating |
| Operating Environment | -20°C to +60°C |
| Recognition Distance | 3 to 6 meters |
| Vehicle Speed Range | 0 to 40 km/h |
| Recognition Rate | ≥99.9% |
| Display | 18.5-inch outdoor high-brightness LCD |
| Data Storage | MicroSD TF card, max 32GB camera / 256GB system |
| Camera Power | Standard 12V/2A power supply, supports 9-15V DC |
| Network | RJ45/LAN 10/100 Mbps Ethernet |
| I/O Output | OUT1/OUT2 relay dry contact for barrier control |
| I/O Input | IN1/IN2/GND trigger input |
| RS485 | A1/B1, A2/B2 serial data output |
| Audio | GND/OUT/IN audio I/O for voice prompts |
| Indicator | SYS network and system status LED indicator |
| Reset | RESET button, long-press 5 to 10 seconds |
Installation Requirements
Foundation: Solid concrete base approximately 400 × 400 mm
Cable Routing: AC 220V power and Cat6 network cables through center conduit
Mounting: Four heavy-duty M10 or M12 expansion bolts
Positioning: 0.5 to 1 meter offset from driving lane edge with capture angle within 45 degrees
