AnKuai P829 High Accuracy LPR Parking Terminal with 18.5 Inch LCD, 99.9% Recognition Rate and IP54 Protection

Brand Name:	ANKUAI
Model Number:	P829
MOQ:	1
Price:	780
Packaging Details:	cartons
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ISO

Communication Interface:

RS485

Pass Speed:

30 ~ 45 People / Min

Motor:

Brushless DC

Dimension:

1200*300*1000mm

Ip Protection Level:

Communication:

RS232/RS485

Arm Length:

300mm

Surface Treatment:

Baking Finish

Passing Speed:

40-60 Persons/min

Working Humidity:

≤95%RH

Open Time:

0.6 Seconds (Adjustable)

Material:

Stainless Steel

Top Cover:

AISI SUS304 2.0MM

Wing Color:

Optional

Interface:

RS485, TCP/IP (Optional)

Supply Ability:

10000

Product Description

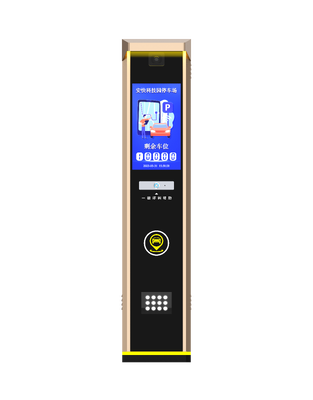

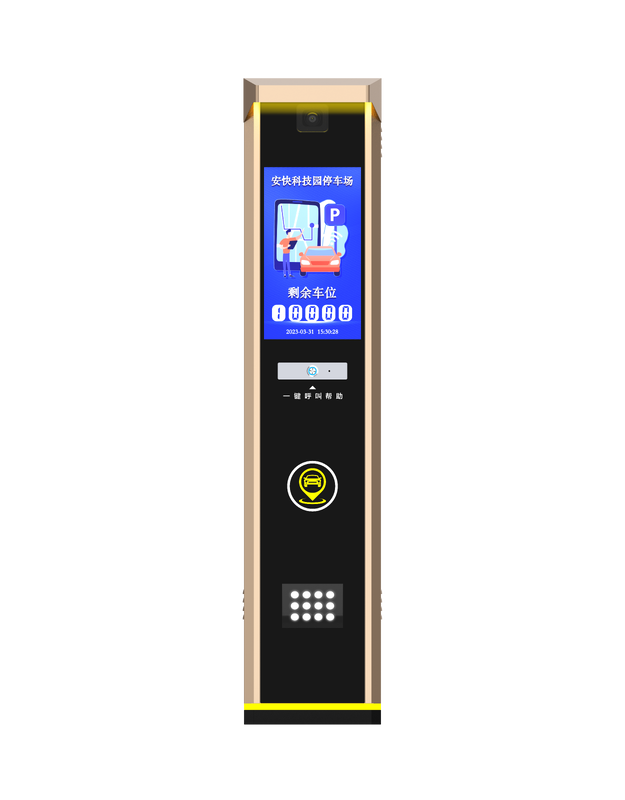

AnKuai P829 High Accuracy LPR Parking Terminal with 18.5 Inch LCD

Product Overview

The AnKuai P829 is a professional license plate recognition terminal designed for parking access projects requiring large LCD displays and structured technical interfaces. This robust system delivers exceptional performance in various environmental conditions while providing clear visual guidance and information display.

Key Features

Exceptional recognition rate of at least 99.9%
Reliable performance in challenging conditions including heavy rain, backlight, and extreme angles
18.5-inch outdoor high-brightness LCD for lane-side visual content display
Dual MicroSD TF card storage (32GB camera / 256GB system)
Robust construction with IP54 rated housing and wide operating temperature range
Optimized capture distance of 3-6 meters and vehicle speed range of 0-40 km/h
Comprehensive interface options including Ethernet, RS485, relay outputs, and audio I/O

Technical Specifications

Parameter	Specification
Brand	AnKuai
Model	P829
Product Category	License Plate Recognition Terminal
Working Voltage	AC 220V +/-10%
Dimensions	328 mm L x 271 mm W x 1536 mm H
Protection Level	IP54
Housing Material	SPCC cold-rolled steel with outdoor powder coating
Operating Environment	-20°C to +60°C
Recognition Distance	3 to 6 meters
Vehicle Speed Range	0 to 40 km/h
Recognition Rate	>=99.9%
Display	18.5-inch outdoor high-brightness LCD
Data Storage	MicroSD TF card, max 32GB camera / 256GB system
Camera Power	Standard 12V/2A power supply, supports 9-15V DC
Network	RJ45/LAN 10/100 Mbps Ethernet
I/O Output	OUT1 / OUT2 relay dry contact for barrier control
I/O Input	IN1 / IN2 / GND trigger input
RS485	A1/B1, A2/B2 serial data output
Audio	GND/OUT/IN audio I/O for voice prompts
Indicator	SYS network and system status LED indicator
Reset	RESET button, long-press 5 to 10 seconds

Installation Recommendations

Installation Offset: 0.5 to 1 meter off the driving lane edge

Capture Zone: 3 to 6 meters ahead of the unit

Foundation: Solid concrete base, approximately 400 x 400 mm

Cabling: AC 220V power and Cat6 network cables through center conduit

Mounting: Four heavy-duty M10 or M12 expansion bolts
