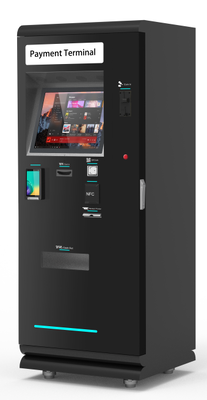

Ankuai AK8208G Indoor Parking Payment Terminal with 120W Motor Wattage IP54 Protection and License Plate Recognition
| Brand Name: | ANKUAI |
| Model Number: | AK8208 |
| MOQ: | 1 |
| Price: | USD 2999～5000/Piece |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
The Ankuai AK-KMY8208G is an industrial-grade, lobby-style self-service payment kiosk engineered for indoor deployment, operating under the product positioning of a "bank-grade unattended cashier." It closes the full transaction loop across banknote validation and dispensing, coin acceptance and change, QR-code scanning, ticket reading, and contactless NFC card payments. Running 24/7 without human intervention, the terminal replaces the traditional toll booth and plugs cash-leakage vulnerabilities at the source — every transaction becomes traceable and reconcilable. The cabinet is welded from 1.5–2.0mm hot-rolled steel, fortified by a three-way linkage mechanical lock and an active audio-visual anti-theft alarm system, elevating fund protection to financial-sector standards.
Designed for Continuous Operation with Minimal Maintenance
Parking facilities cannot afford unexpected downtime. The AK8208G is engineered with several reliability features to keep daily operations running smoothly.
The dual thermal printer configuration allows automatic switching between printers when one unit requires maintenance or paper replacement, reducing service interruption.
A built-in 1000VA UPS system protects transactions during sudden power failures, allowing safe completion of current operations before controlled shutdown.
Combined with four cooling fans, dust protection design, and modular internal structure, the kiosk is optimized for long-term unattended operation with lower maintenance requirements.
- Internal cash safe box with mechanical multi-point locks for enhanced security
- Comprehensive payment processing including bill validation and dispensing
- Coin validation and dispensing capabilities
- QR/barcode scanning and optional NFC functionality
- Reserved POS card reader placement
- 19-inch capacitive touch screen user interface
- SOS help button with microphone and dual-channel speakers for remote assistance
- 1000VA UPS backup system with program control
- Blue LED ambient lighting with dedicated controller
| Item | Specification |
|---|---|
| Brand | Ankuai |
| Model | KMY8208G Series |
| Product Type | Smart Self-Service Parking Payment Kiosk |
| System Use | Ankuai License Plate Recognition unattended parking management system |
| Installation Environment | Indoor / sheltered lobby use only; not waterproof |
| Main Controller | Industrial-grade motherboard with USB, Serial, and TCP/IP network interfaces |
| Touch Display | 19-inch high-definition capacitive touch screen, 4:3 ratio |
| Display Response Time | 6 ms |
| Display Brightness | 260 nits |
| Display Contrast | 700:1 |
| Viewing Angle | H130 degrees / V110 degrees |
| Banknote Acceptor | Bill validator with 600-note storage capacity |
| Banknote Dispenser | Bill dispenser with 800-note capacity |
| Banknote Denomination | Supports 1 customizable banknote denomination for change-giving |
| Coin Acceptor | Multi-denomination coin validation module |
| Coin Dispenser | High-capacity coin hopper and dispenser |
| QR/Barcode Scanner | Industrial-grade 1D and 2D barcode imaging scanner |
| Receipt Printer | Dual CASHINO 80mm thermal ticket/receipt printers with auto-cutters |
| POS Card Reader | Pre-wired panel cutout with blank cover plate |
| NFC Contactless | Dedicated cutout for contactless card readers |
| Intercom System | Microphone, dual-channel speakers, and SOS help button |
| Security Enclosure | 1.5 mm to 2.0 mm hot-rolled steel cabinet with outdoor-grade powder coating |
| Locking | Mechanical multi-point locks and internal cash safe box |
| UPS Battery | 1000VA UPS backup system with USB interface and program control |
| Cooling | 4 dust-protected cooling fans |
| Speakers | Dual 25W stereo speakers |
| Ambient Lighting | Blue LED ambient light strip with dedicated controller |
| Communication | Standard TCP/IP interface |
| Packaging | Three-layer heavy-duty packaging system inside an eco-friendly wooden crate |
| Warranty | 1-year manufacturer's warranty covering major hardware components |
