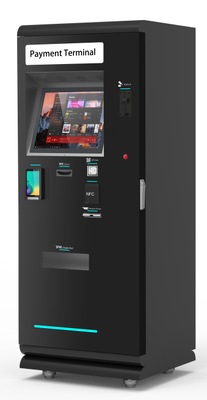

Ankuai AK8208G 120W IP54 Indoor Parking Payment Terminal with License Plate Recognition and Safe Box
| Brand Name: | ANKUAI |
| Model Number: | AK8208 |
| MOQ: | 1 |
| Price: | USD 2999/Piece |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
Unbox, Dock, and Go Live — Full Installation in Under 4 Hours
Secure Your Parking Revenue with Bank-Grade Protection
Cash security is one of the biggest challenges in unattended parking systems. The AK8208G addresses this concern with a reinforced industrial cabinet structure and dedicated cash protection design.
The machine features a 1.5–2.0mm hot-rolled steel enclosure, multi-point mechanical locking system, and an independent password-protected cash safe to provide multiple layers of protection for collected revenue.
Inside the kiosk, professional cash handling modules support high-frequency transactions with reliable acceptance and dispensing performance. The system helps parking operators reduce cash management risks while maintaining transparent and traceable payment operations.
Designed for indoor lobby environments, the AK8208G combines security, durability, and elegant industrial design in one complete payment solution.
| Item | Specification |
|---|---|
| Brand | Ankuai |
| Model | KMY8208G Series |
| Product Type | Smart Self-Service Parking Payment Kiosk |
| System Use | Ankuai License Plate Recognition unattended parking management system |
| Installation Environment | Indoor / sheltered lobby use only; not waterproof |
| Main Controller | Industrial-grade motherboard with USB, Serial, and TCP/IP network interfaces |
| Touch Display | 19-inch high-definition capacitive touch screen, 4:3 ratio |
| Display Response Time | 6 ms |
| Display Brightness | 260 nits |
| Display Contrast | 700:1 |
| Viewing Angle | H130 degrees / V110 degrees |
| Banknote Acceptor | Bill validator with 600-note storage capacity |
| Banknote Dispenser | Bill dispenser with 800-note capacity |
| Banknote Denomination | Supports 1 customizable banknote denomination for change-giving |
| Coin Acceptor | Multi-denomination coin validation module |
| Coin Dispenser | High-capacity coin hopper and dispenser |
| QR/Barcode Scanner | Industrial-grade 1D and 2D barcode imaging scanner |
| Receipt Printer | Dual CASHINO 80mm thermal ticket/receipt printers with auto-cutters |
| POS Card Reader | Pre-wired panel cutout with blank cover plate |
| NFC Contactless | Dedicated cutout for contactless card readers |
| Intercom System | Microphone, dual-channel speakers, and SOS help button |
| Security Enclosure | 1.5 mm to 2.0 mm hot-rolled steel cabinet with outdoor-grade powder coating |
| Locking | Mechanical multi-point locks and internal cash safe box |
| UPS Battery | 1000VA UPS backup system with USB interface and program control |
| Cooling | 4 dust-protected cooling fans |
| Speakers | Dual 25W stereo speakers |
| Ambient Lighting | Blue LED ambient light strip with dedicated controller |
| Communication | Standard TCP/IP interface |
| Packaging | Three-layer heavy-duty packaging system inside an eco-friendly wooden crate |
| Warranty | 1-year manufacturer's warranty covering major hardware components |
