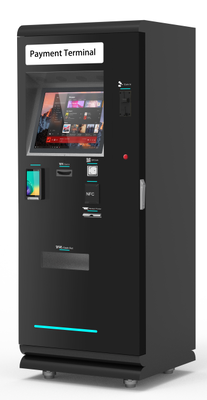

Smart Parking Terminal with Dual Printers, UPS Backup System, and 19-inch Capacitive Touch Display
| Brand Name: | ANKUAI |
| Model Number: | AK8208 |
| MOQ: | 1 |
| Price: | USD 2999/Piece |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
Three-Layer Defense: A Financial-Grade Fortress for Parking Revenue
The integrated 1000VA UPS backup system with USB interface and program control ensures transactions complete successfully, data stores securely, and the kiosk shuts down safely during sudden power outages. Designed for optimal user experience, the terminal incorporates a 19-inch capacitive touch display and QR/barcode scanner.
This comprehensive payment solution combines bill validation and dispensing, coin validation and dispensing, reserved POS card reader layout, and NFC reader cutout, making it ideal for parking facilities requiring unattended payment with receipt output and reliable backup power.
One Smart Terminal for Every Parking Payment Scenario
Different drivers prefer different payment methods. The AK8208G provides a complete payment ecosystem to support various user habits.
The kiosk integrates cash acceptance, coin handling, QR scanning, ticket barcode recognition, NFC payment, and optional POS card payment functions, giving users a flexible and convenient payment experience.
Equipped with a 19-inch capacitive touchscreen, the interface provides clear operation guidance and quick response for daily parking users.
Whether deployed in underground garages, commercial complexes, office buildings, or public facilities, the AK8208G helps operators create a faster and more convenient parking payment process.
| Item | Specification |
|---|---|
| Brand | Ankuai |
| Model | KMY8208G Series |
| Product Type | Smart Self-Service Parking Payment Kiosk |
| System Use | Ankuai License Plate Recognition unattended parking management system |
| Installation Environment | Indoor / sheltered lobby use only; not waterproof |
| Main Controller | Industrial-grade motherboard with USB, Serial, and TCP/IP network interfaces |
| Touch Display | 19-inch high-definition capacitive touch screen, 4:3 ratio |
| Display Response Time | 6 ms |
| Display Brightness | 260 nits |
| Display Contrast | 700:1 |
| Viewing Angle | H130 degrees / V110 degrees |
| Banknote Acceptor | Bill validator with 600-note storage capacity |
| Banknote Dispenser | Bill dispenser with 800-note capacity |
| Banknote Denomination | Supports 1 customizable banknote denomination for change-giving |
| Coin Acceptor | Multi-denomination coin validation module |
| Coin Dispenser | High-capacity coin hopper and dispenser |
| QR/Barcode Scanner | Industrial-grade 1D and 2D barcode imaging scanner |
| Receipt Printer | Dual CASHINO 80mm thermal ticket/receipt printers with auto-cutters |
| POS Card Reader | Pre-wired panel cutout with blank cover plate |
| NFC Contactless | Dedicated cutout for contactless card readers |
| Intercom System | Microphone, dual-channel speakers, and SOS help button |
| Security Enclosure | 1.5 mm to 2.0 mm hot-rolled steel cabinet with outdoor-grade powder coating |
| Locking | Mechanical multi-point locks and internal cash safe box |
| UPS Battery | 1000VA UPS backup system with USB interface and program control |
| Cooling | 4 dust-protected cooling fans |
| Speakers | Dual 25W stereo speakers |
| Ambient Lighting | Blue LED ambient light strip with dedicated controller |
| Communication | Standard TCP/IP interface |
| Packaging | Three-layer heavy-duty packaging system inside an eco-friendly wooden crate |
| Warranty | 1-year manufacturer's warranty covering major hardware components |
