AnKuai AK-P828-SP License Plate Recognition Terminal with 5MP HD LPR Camera, 4-Line LED Display, and QR Code Scanning Support

All Category

Vehicle Detection Radar Sensor

Hydraulic Retractable Bollards

Metal Detector Gate

Mrs. Betty

betty@ankuai.net

+8613827208652

Contact Now

AnKuai AK-P828-SP License Plate Recognition Terminal with 5MP HD LPR Camera, 4-Line LED Display, and QR Code Scanning Support

Brand Name:	ANKUAI
Model Number:	AK828
MOQ:	1
Price:	USD 545-650 /Peice
Packaging Details:	CARTONS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Communicationinterface:

RS485, TCP/IP

Ip Rating:

Swing Arm Speed:

Output Voltage:

DC 24Ｖ

Power Voltage:

Hospitals, Enterprises And Institutions

Accesscontrol:

RFID, Barcode, Fingerprint Compatible

Working Temperature:

-30℃-80℃

Unlock Time:

0.15s

Shock Absorber:

Hydraulic.

Number Of Infrared:

4 Pairs Of Infared Inputs

Output Power:

Single Core 30w

Surface Treatment:

Brushed Finish

Infra Red Sensors:

3-4 Pairs

Motor Power:

DC Motor

Housing Material:

304 Stainless Steel

Supply Ability:

10000

Product Description

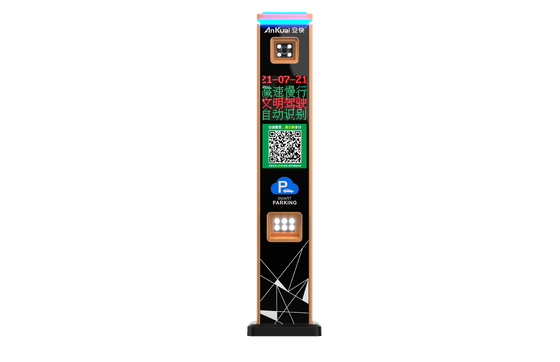

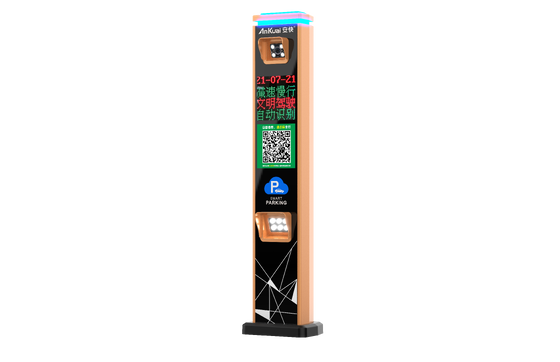

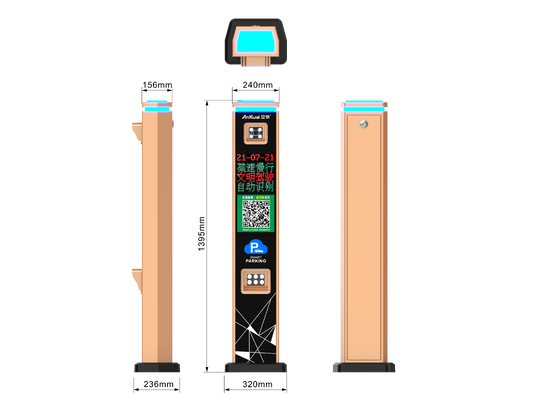

AnKuai AK-P828-SP LPR Terminal with 4-Line LED Display

Product Overview

The AnKuai AK-P828-SP is an integrated license plate recognition terminal designed for unattended parking management systems. This comprehensive solution combines a 5MP HD LPR camera, 4-line high-brightness LED display, smart voice prompts, and QR code scanning capability for vehicles without license plates.

The LED display features P3 specification with 192 x 192 mm dimensions and supports customizable status, fee, and welcome messages. Ideal for residential communities, shopping malls, hotels, automated parking lots, and enterprise facilities, this terminal utilizes a dedicated LPR chip with AC 220V power, TCP/IP communication, and IP54 ingress protection.

Technical Specifications

Brand	AnKuai
Model	AK-P828-SP
Product Type	License Plate Recognition Terminal
System Use	Unattended parking management
Working Voltage	AC 220V
Operating Temperature	-25°C to +70°C
Relative Humidity	≤85%, no condensation at room temperature
Ingress Protection	IP54
LED Display	4-line high-brightness LED screen
LED Display Specification	P3, 192 x 192 mm
LPR Camera	5MP HD module
Lens	6mm fixed focus lens
Camera Height	1230 mm
Optimal Recognition Distance	3 to 6 meters
Capture and LPR Rate	≥99.9% plate accuracy in all-weather conditions
Special Plate Accuracy	≥95% plate accuracy
Communication Protocol	TCP/IP
Input Interfaces	6 x USB 2.0, RS485, loop detector input, MIC interface, etc.
Casing Dimensions	320 x 236 x 1395 mm (W x L x H)
Supported Plates	Standard, new energy, public facility, restricted access area, emergency plates
QR Function	QR code scanning for vehicles without plates
Voice Prompt	Smart voice prompts
LPR Chip	Dedicated LPR chip
Circuit Protection	Leakage protection circuit breaker
Exterior Process	Automotive-grade baking paint process
Outdoor Paint Reference	Rust-free and paint-intact for over 3 years outdoors
Ambient Lighting	Colorful ambient LED lighting

Key Features

Integrated 5MP HD LPR camera and 4-line LED display in one parking access terminal
Supports QR code scanning for vehicles without license plates
Customizable LED display shows status, fee, and welcome messages
Dedicated LPR chip supports parking recognition processing
TCP/IP communication supports parking management system connection
IP54 housing supports outdoor parking access deployment
Voice and screen prompts support unattended parking operation

Applications

Residential community parking
Shopping mall parking
Hotel parking
Automated parking lots
Enterprise facility parking
Parking entrance control
Parking exit control
Unattended vehicle access points

Note: Commercial information including MOQ, price, packing, payment terms, supply ability, and lead time is currently pending and will be provided upon request.
