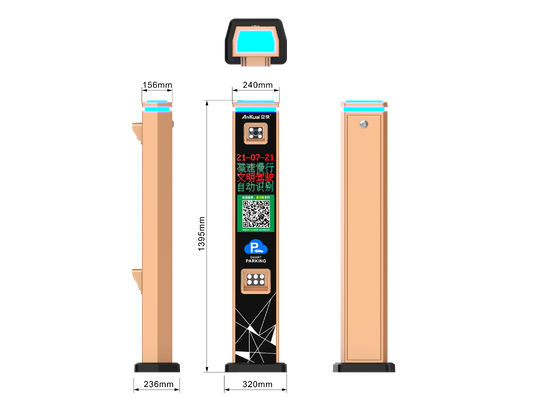

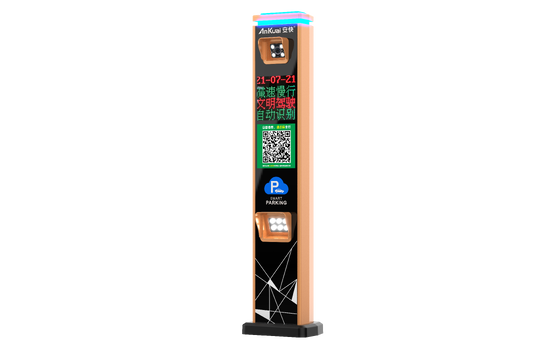

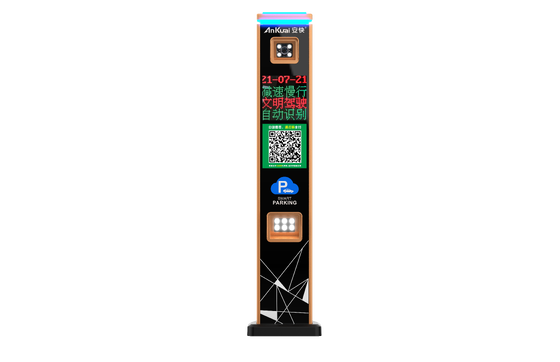

AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display

Brand Name:	ANKUAI
Model Number:	AK828
MOQ:	1
Price:	USD 545-650 /Peice
Packaging Details:	CARTONS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Communicationinterface:

RS485, TCP/IP

Ip Rating:

Swing Arm Speed:

Output Voltage:

DC 24Ｖ

Power Voltage:

Hospitals, Enterprises And Institutions

Accesscontrol:

RFID, Barcode, Fingerprint Compatible

Working Temperature:

-30℃-80℃

Unlock Time:

0.15s

Shock Absorber:

Hydraulic.

Number Of Infrared:

4 Pairs Of Infared Inputs

Output Power:

Single Core 30w

Surface Treatment:

Brushed Finish

Infra Red Sensors:

3-4 Pairs

Motor Power:

DC Motor

Housing Material:

304 Stainless Steel

Supply Ability:

10000

Product Description

AK-P828-SP LPR Parking Access Terminal with TCP/IP and RS485

Product Description

The AK-P828-SP is a parking access terminal designed for system integrators requiring comprehensive communication and input interfaces alongside license plate recognition capabilities. This terminal features TCP/IP communication, 6 x USB 2.0 ports, RS485 interface, loop detector input, MIC interface, and additional connectivity options.

Equipped with a 5MP HD camera module featuring a 6mm fixed focus lens, the terminal operates at a camera height of 1230 mm with an optimal recognition distance of 3 to 6 meters. It includes a 4-line high-brightness LED display for custom messages and supports QR code scanning for vehicles without license plates. The system incorporates a dedicated LPR chip for recognition processing and features leakage protection circuit breaker for enhanced safety.

AK-P828-SP IP68 LPR Parking Access Terminal with 5MP HD Camera and 4-line LED Display 0

Specifications

Item	Specification
Brand	AnKuai
Model	AK-P828-SP
Product Type	License Plate Recognition Terminal
System Use	Unattended parking management
Working Voltage	AC 220V
Operating Temperature	-25°C to +70°C
Relative Humidity	≤85%, no condensation at room temperature
Ingress Protection	IP54
LED Display	4-line high-brightness LED screen
LED Display Specification	P3, 192 x 192 mm
LPR Camera	5MP HD module
Lens	6mm fixed focus lens
Camera Height	1230 mm
Optimal Recognition Distance	3 to 6 meters
Capture and LPR Rate	≥99.9% plate accuracy in all-weather conditions
Special Plate Accuracy	≥95% plate accuracy
Communication Protocol	TCP/IP
Input Interfaces	6 x USB 2.0, RS485, loop detector input, MIC interface, etc.
Casing Dimensions	320 x 236 x 1395 mm (W x L x H)
Supported Plates	Standard, new energy, public facility, restricted access area, emergency plates
QR Function	QR code scanning for vehicles without plates
Voice Prompt	Smart voice prompts
LPR Chip	Dedicated LPR chip
Circuit Protection	Leakage protection circuit breaker
Exterior Process	Automotive-grade baking paint process
Outdoor Paint Reference	Rust-free and paint-intact for over 3 years outdoors
Ambient Lighting	Colorful ambient LED lighting

Key Features

TCP/IP communication supports parking software connection
Six USB 2.0 interfaces for peripheral connectivity
RS485 and loop detector input support access control integration
MIC interface for audio applications
5MP camera with 6mm fixed focus lens supports plate capture
4-line LED display supports custom parking messages
Leakage protection circuit breaker for enhanced safety

Applications

Parking system integration, vehicle entrance control, vehicle exit control, residential parking, commercial parking lots, enterprise facility access, automated parking lots, and parking barrier access points.

Frequently Asked Questions

What communication protocol is listed?

TCP/IP is listed as the communication protocol.

Does it include RS485?

Yes. RS485 is listed in the input interfaces.

Does it support loop detector input?

Yes. Loop detector input is listed in the source specifications.

What lens is used?

The source brochure lists a 6mm fixed focus lens.

What is the camera height?

The camera height is listed as 1230 mm.
