AnKuai AK-P828-SP 5MP HD LPR Camera Machine with IP68 Rating and 304 Stainless Steel Housing for Parking Lots
| Brand Name: | ANKUAI |
| Model Number: | AK828 |
| MOQ: | 1 |
| Price: | USD 545-650 /Peice |
| Packaging Details: | CARTONS |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Communicationinterface:
RS485, TCP/IP
Ip Rating:
IP68
Swing Arm Speed:
1s
Output Voltage:
DC 24Ｖ
Power Voltage:
Hospitals, Enterprises And Institutions
Accesscontrol:
RFID, Barcode, Fingerprint Compatible
Working Temperature:
-30℃-80℃
Unlock Time:
0.15s
Shock Absorber:
Hydraulic.
Number Of Infrared:
4 Pairs Of Infared Inputs
Output Power:
Single Core 30w
Surface Treatment:
Brushed Finish
Infra Red Sensors:
3-4 Pairs
Motor Power:
DC Motor
Housing Material:
304 Stainless Steel
Delivery Time:
10 WORKING DAYS
Supply Ability:
10000
Product Description
AnKuai AK-P828-SP 5MP LPR Camera Machine for Parking Lots Use
Product Overview

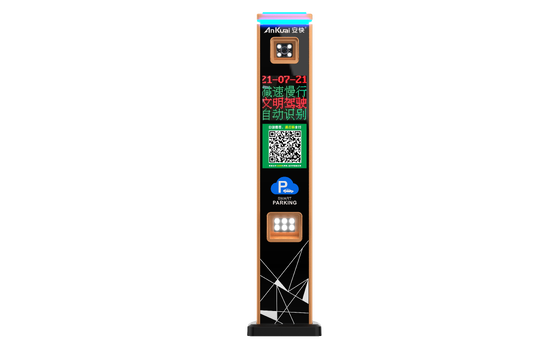

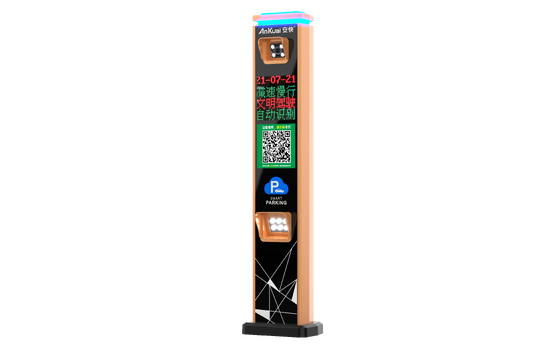

The AnKuai AK-P828-SP is a compact license plate recognition camera machine designed for parking lots requiring plate recognition and lane-side message display. This integrated solution combines a 5MP HD camera module with 6mm fixed focus lens, 4-line high-brightness LED display, QR code scanning for vehicles without plates, and smart voice prompts. Engineered for reliability, it delivers exceptional performance in various weather conditions with high accuracy rates.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | AnKuai |
| Model | AK-P828-SP |
| Product Type | License Plate Recognition Terminal |
| System Use | Unattended parking management |
| Working Voltage | AC 220V |
| Operating Temperature | -25°C to +70°C |
| Relative Humidity | ≤85%, no condensation at room temperature |
| Ingress Protection | IP54 |
| LED Display | 4-line high-brightness LED screen |
| LED Display Specification | P3, 192 x 192 mm |
| LPR Camera | 5MP HD module |
| Lens | 6mm fixed focus lens |
| Camera Height | 1230 mm |
| Optimal Recognition Distance | 3 to 6 meters |
| Capture and LPR Rate | ≥99.9% plate accuracy in all-weather conditions |
| Special Plate Accuracy | ≥95% plate accuracy |
| Communication Protocol | TCP/IP |
| Input Interfaces | 6 x USB 2.0, RS485, loop detector input, MIC interface, etc. |

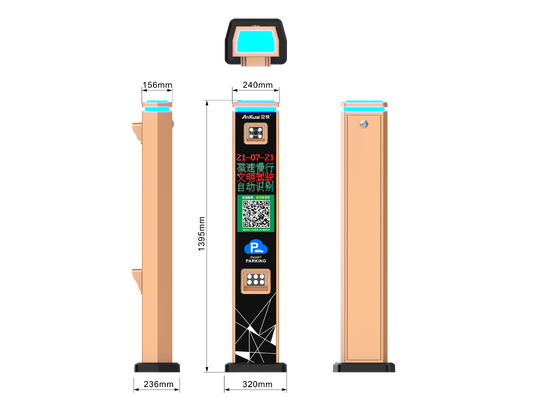

| Casing Dimensions | 320 x 236 x 1395 mm W x L x H |
| Supported Plates | Standard, new energy, public facility, restricted access area, emergency plates |
Key Features
- 5MP HD LPR camera module with 6mm fixed focus lens
- Exceptional capture and LPR rate of ≥99.9% plate accuracy in all-weather conditions
- Special plate accuracy of ≥95%
- 4-line high-brightness LED display for parking information
- QR code scanning capability for vehicles without plates
- AC 220V power supply with TCP/IP communication
- Compact casing dimensions: 320 x 236 x 1395 mm (W x L x H)
- Smart voice prompts for enhanced user experience
- Dedicated LPR chip for optimized performance
- Automotive-grade baking paint process for durability
- Colorful ambient LED lighting
Applications
- Residential parking lots
- Shopping mall parking lots
- Hotel parking areas
- Automated parking lots
- Enterprise parking facilities
- Unattended parking lanes
- Parking entry systems
- Parking exit systems
Frequently Asked Questions
What camera resolution is listed?
The source brochure lists a 5MP HD module.
What is the listed capture and LPR rate?
The listed capture and LPR rate is at least 99.9% plate accuracy in all-weather conditions.
What is the special plate accuracy?
The special plate accuracy is listed as at least 95%.
What is the optimal recognition distance?
The optimal recognition distance is listed as 3 to 6 meters.
What are the casing dimensions?
The casing dimensions are 320 x 236 x 1395 mm W x L x H.
