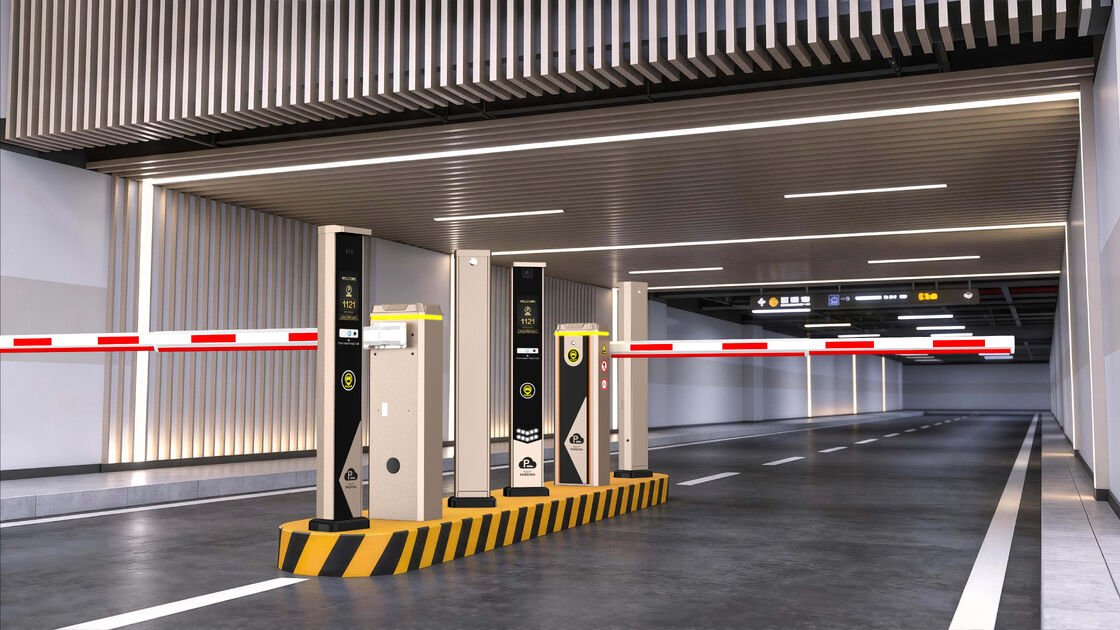

Automatic Barrier Gate With ANPR Camera, License Plate Recognition Boom Barrier System

Product Description:

Designed for demanding vehicular tolling and perimeter security, the AKD156 combines modern aesthetics with an advanced 24V Brushless Direct Current (BLDC) drive system. Delivering smooth sinusoidal motion and high thermal efficiency, it eliminates routine motor maintenance while handling heavy daily traffic cycles effortlessly.

Heavy-Duty Electromechanical Core: 24V DC brushless motor (100W consumption) with planetary gear reduction provides rapid response, stable torque output, and whisper-quiet operation (<50 dB).
Flexible Lane Configurations: Compatible with straight, telescopic, articulated folding (90°/180°), and pedestrian-barrier fence arms spanning from 1 to 6 meters.

Variable Operating Speeds: Adjustable cycle times ranging from 1.8s (express toll access) to 6.0s (wide-span industrial lanes) with electronic soft-start and anti-bounce stop.
All-Weather Steel Enclosure: Compact cabinet profile (325 × 216 × 1035 mm, net weight 35 kg) rated IP54, built with cold-rolled steel and anti-corrosion powder coating suited for severe climates (-30°C to +80°C).
Smart Detection & Safety Logic: Auto-reverse collision sensor, manual clutch unlock for power failures, and dual integration ports for vehicle loop detectors, infrared photocells, and microwave radar sensors (supporting pole heights of 480/600/720 mm).
Field-Tested Quality: Compliant with CE and ISO standards, engineered for a mechanical service lifespan exceeding 5 million continuous cycles.

Product:

Applications:

High-Throughput Toll Plazas & Revenue Parking: Compatible with ANPR/LPR cameras, RFID card dispensers, and automated fee stations for fast entry/exit clearance.
Smart Residential Estates & Villa Compounds: Sleek tower design harmonizes with modern property architecture while maintaining quiet gate movements during late hours.
Height-Constrained Basements & Covered Decks: Specialized 90-degree and 180-degree folding boom arms prevent collisions with ceiling beams, sprinkler pipes, and HVAC ventilation shafts.
Logistics Depots & Factory Entryways: 6.0-meter wide span accommodates multi-axle freight trucks, container haulers, and construction machinery.
Perimeter-Restricted Facilities: Dual-fence and triple-fence arms prevent unauthorized pedestrian bypass, stray animals, and tailgating at schools, corporate campuses, and government facilities.

Customization:

We offer turnkey contract manufacturing and bespoke branding solutions tailored to system integrators, distributors, and project contractors:

Private Label & Visual Identity: Precision laser marking, silk-screen brand logo placement, personalized LED front-panel graphics, and custom carton packaging with client documentation.
Custom Cabinet Coating: Choice of any RAL architectural color (Traffic White, Safety Yellow, Jet Black, Royal Blue, Signal Red) or two-tone corporate color combinations with weather-resistant finishes.
Tailored Boom Profiles: Octagonal and aerodynamic round boom designs, custom cut-to-length dimensions, bottom rubber edge guards, and embedded dual-color red/green LED visual signaling strips.
Hardware & System Modifications: Interchangeable left/right mechanism configuration, integrated solar-ready 24V DC battery backup modules, and custom I/O relay / RS485 communication protocols for third-party parking software integration.

Support and Services:

Factory Warranty Coverage: 18 to 24 months standard warranty on motor drive, control logic board, and mechanical assembly.
Comprehensive Engineering Assets: Full CAD mechanical blueprints, electrical wiring schematics, foundation civil layout templates, and step-by-step video tutorials.
Immediate Spare Parts Availability: Stocked critical assemblies including 430.5 MHz remote transmitters, balance springs, power supplies, and control boards available for fast-track international courier dispatch.
Export Packaging & Delivery: Secure inner EPE foam buffer packing inside reinforced export cartons or fumigated wooden crates, supporting worldwide EXW, FOB, CIF, and DDP shipments.
